HTP-990

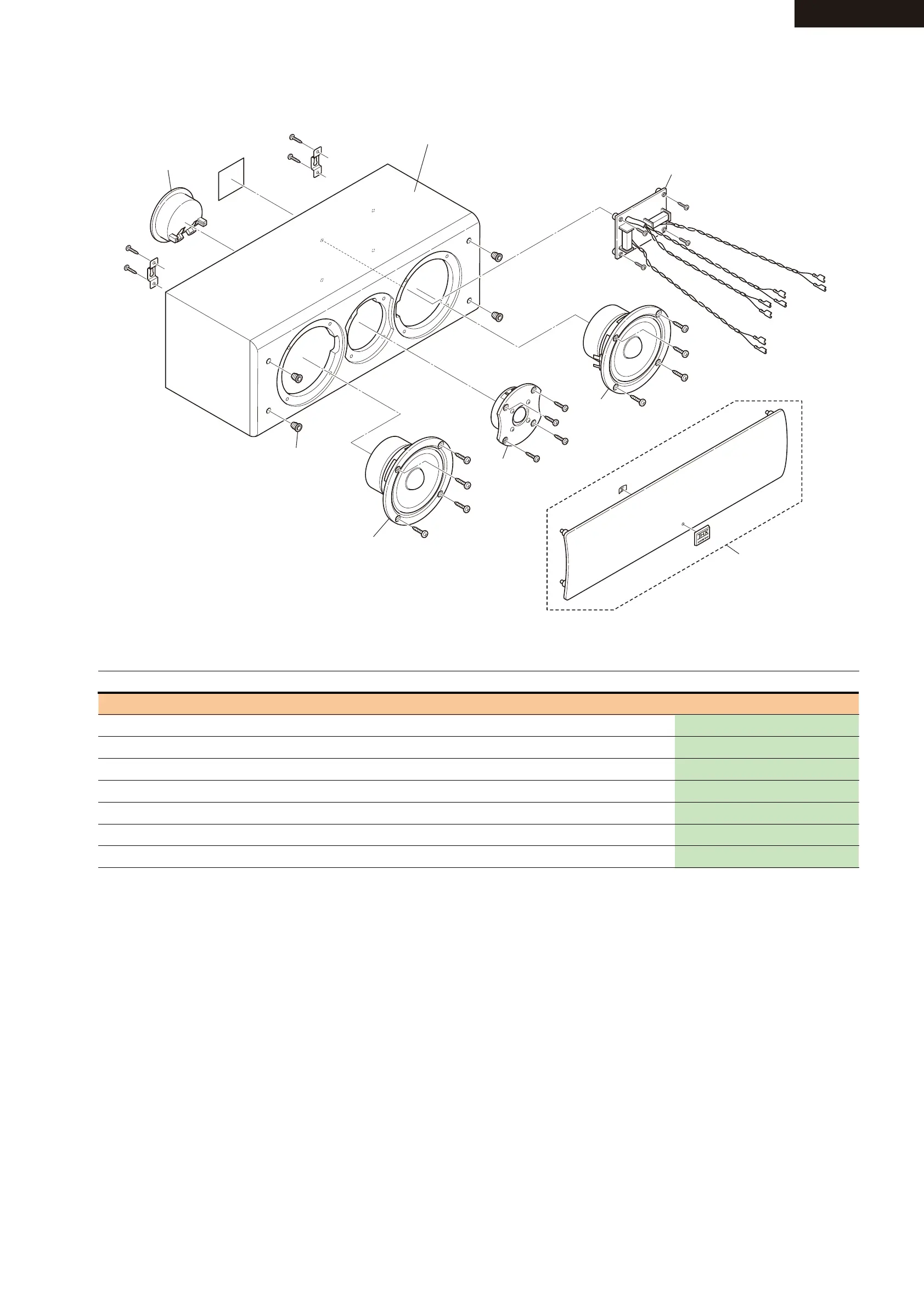

EXPLODED VIEWS - 4
SKC-980
SP04
SP01 : SPK SYSTEM ASS’Y (ALL)
SP05
SP02
x 4 pcs.
SP06
SP07
SP06
SP03
TERMINAL :
Green / Black
INPUT
(Terminal)
WOOFER
WOOFER
TWEETER
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (S N )
S K C -980(B )
SP01 SPK SYSTEM ASSY SKC-990C(B)MDC WITH SPEC LABEL 1 000-SKC990CBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKC-960(B) with Grille Cloth and Logo 1 D201-C96001B-50
SP04 TERMINAL H8107B BLK/GREEN 1 332-H8107B-32
SP05 CROSSOVER SKF/C-940 1 311-SKF940-00
SP06 Woofer (ONKYO) OAE(JITRA) 2 W1277C
SP07 Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
