Onkyo HTP-990 User Manual

HTP-990

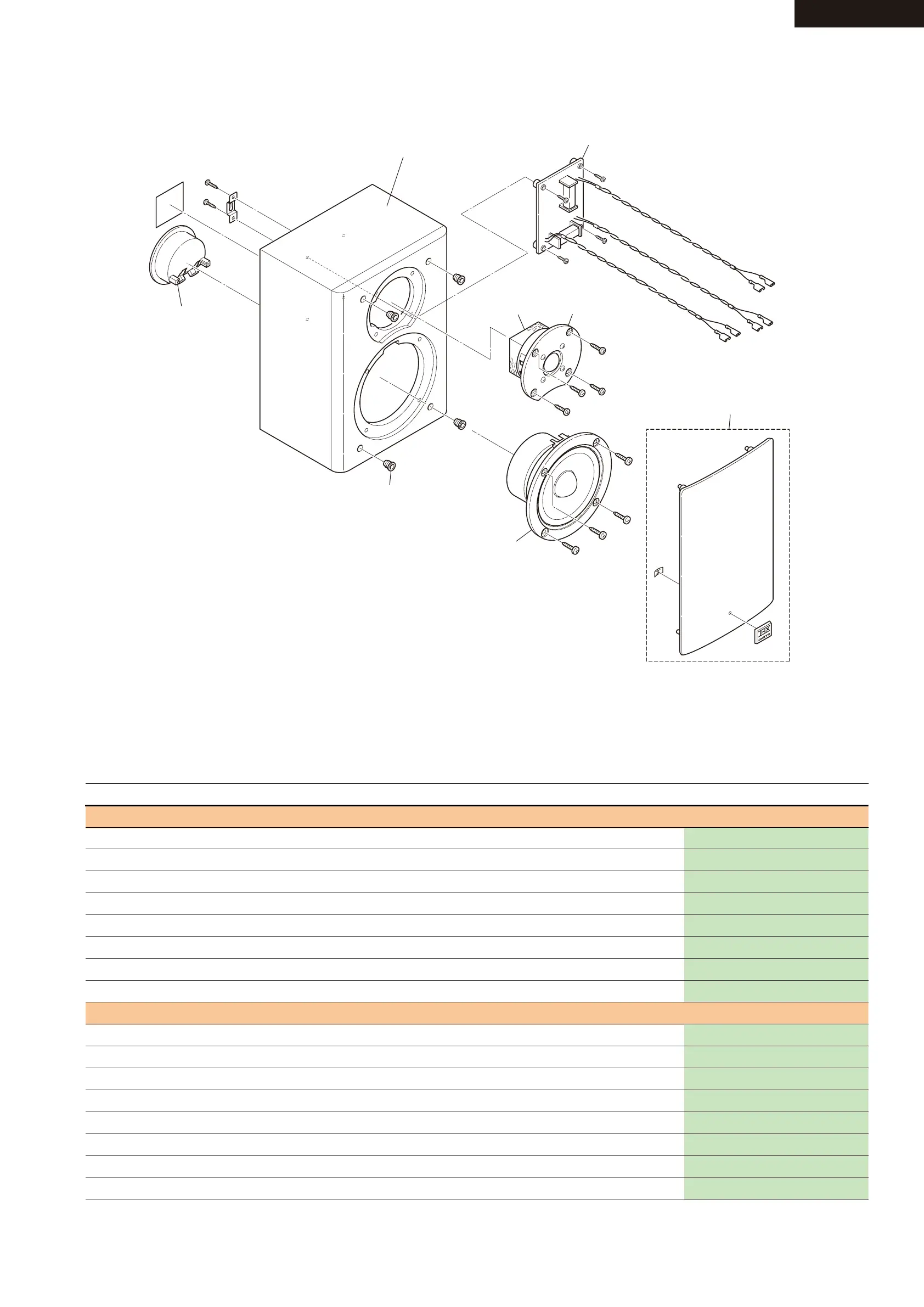

EXPLODED VIEWS - 6
SKB-980L / SKB-980R
SP04A/B
SP01A/B : SPK SYSTEM ASS’Y (ALL)
SP03
SP08
SP05
SP07
SP02
x 4 pcs.
SP06
INPUT
(Terminal)
WOOFER
TWEETER
Lch
TERMINAL :
Brown / Black
Rch
TERMINAL :
Tan / Black
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (SN )
S K B -980L(B )
SP01A SPK SYSTEM ASSY SKB-990BL(B)MDC Completed unit, with SPEC LABEL 1 000-SKB990BLBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
SP04A TERMINAL BLK/BROWN 1 332-H8107B-92
SP05 CROSSOVER SKM/B-940 1 311-SKM940-00
SP06 S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
SP07 Woofer (ONKYO) OAE(JITRA) 1 W1367B
SP08 Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
S K B -980R (B )
SP01B SPK SYSTEM ASSY SKB-990BR(B)MDC 1 000-SKB990BRBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
SP04B TERMINAL H8107B BLK/TAN 1 332-H8107B-A2
SP05 CROSSOVER SKM/B-940 1 311-SKM940-00
SP06 S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
SP07 Woofer (ONKYO) OAE(JITRA) 1 W1367B
SP08 Tweeter (ONKYO) OAE(JITRA) 1 TW3223A

Onkyo HTP-990 Specifications

General

Brand	Onkyo
Model	HTP-990
Category	Home Cinema speakers
Language	English
