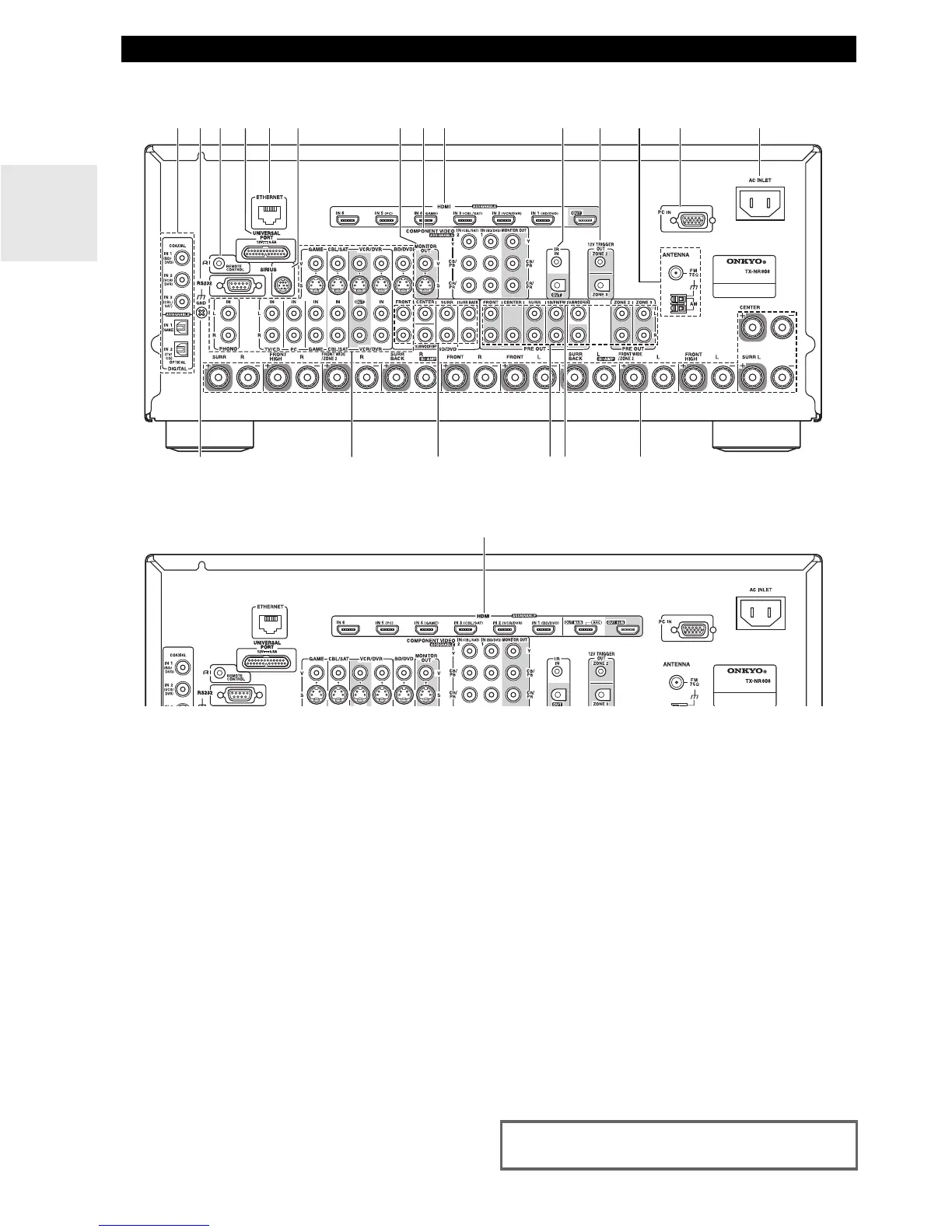

Onkyo TX-NR808 - Rear Panel

10
En
(North American and Taiwan models)
(European, Australian and Asian models)
a DIGITAL IN COAXIAL and OPTICAL jacks
b RS232 port
Terminal for control.
c u REMOTE CONTROL jack
d UNIVERSAL PORT jack
e ETHERNET port
f SIRIUS antenna jack (North American models)
g MONITOR OUT V and S jacks
h COMPONENT VIDEO IN and MONITOR OUT
jacks
i HDMI IN and OUT jacks (North American and
Taiwan models)
HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks (European, Australian and
Asian models)
j IR IN and OUT jacks
k ZONE 2 and ZONE 3 12V TRIGGER OUT jacks
l FM ANTENNA jack and AM ANTENNA terminal
m PC IN port
n AC INLET
o GND screw
p Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN and PHONO IN)
q Multichannel input jacks
(FRONT L/R, CENTER, SURR L/R, SURR BACK
L/R and SUBWOOFER)
r PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SB/FH/FW L/R, SUBWOOFER, ZONE 2 L/R and
ZONE 3 L/R)
*
SB···Surround Back, FH···Front High, FW···Front Wide
s Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)
Rear Panel
ab
e
l
fd
i
m
nh j k
o
pq r
*
s
c g
i
See “Connecting the AV Receiver” for connection infor-
mation (➔ 13 to 22).
