Portable Tabletop Fire Pit
F-FPR7026-BK1
INSTALLATION GUIDE:
SECTION 1: ASSEMBLY

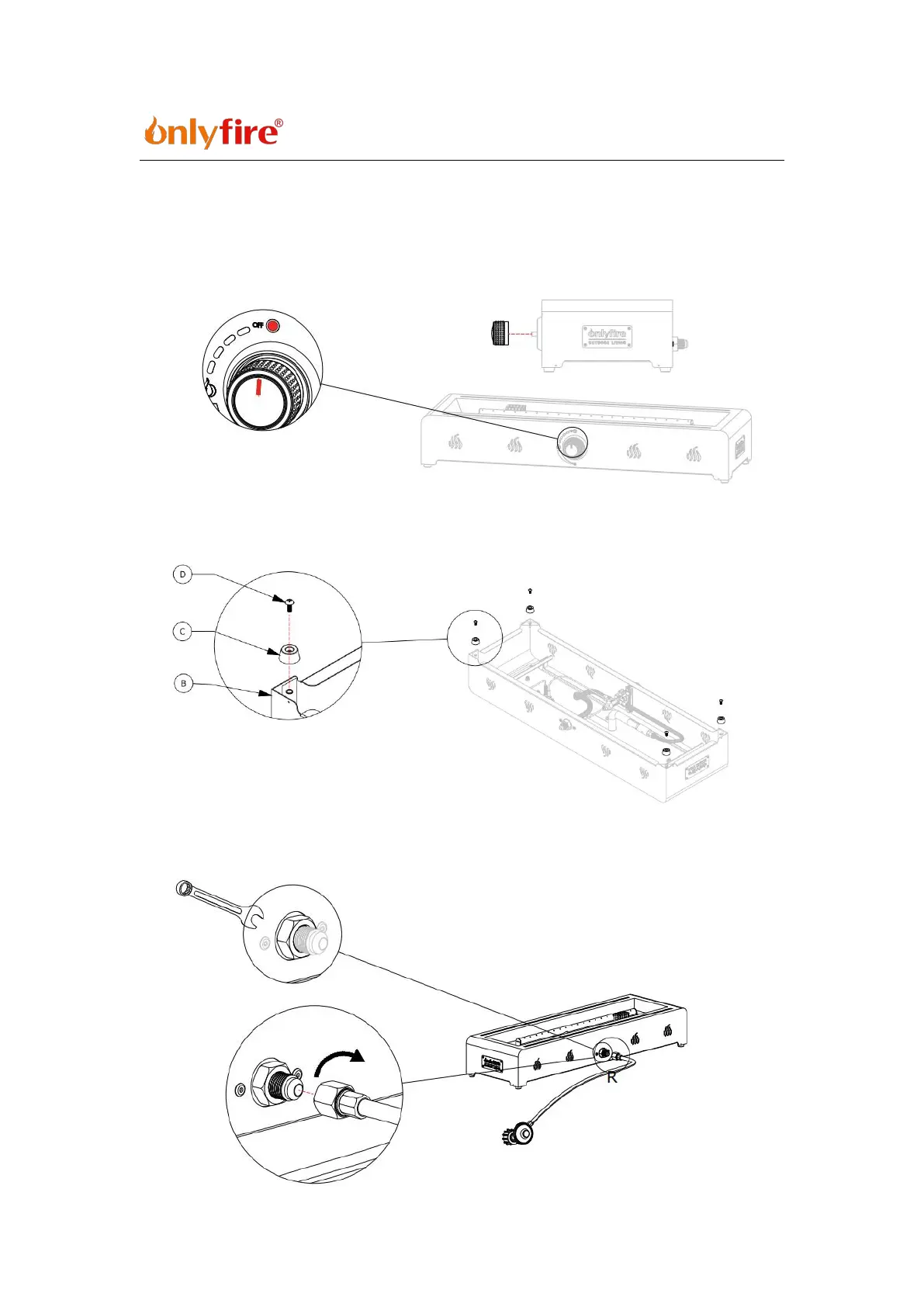

Step 1: Check that the ignition control knob for the gas supply system is turned to the “OFF”
position before starting any assembly.
Step 2: Fix the 4 foot pads (C) with M4 (D) screws at the bottom of the fire pit (B). Make sure to
tighten securely.
Step 3: Connect the pressure reducing valve to the bottom of the fire pit with a wrench, make
sure to tighten securely.
