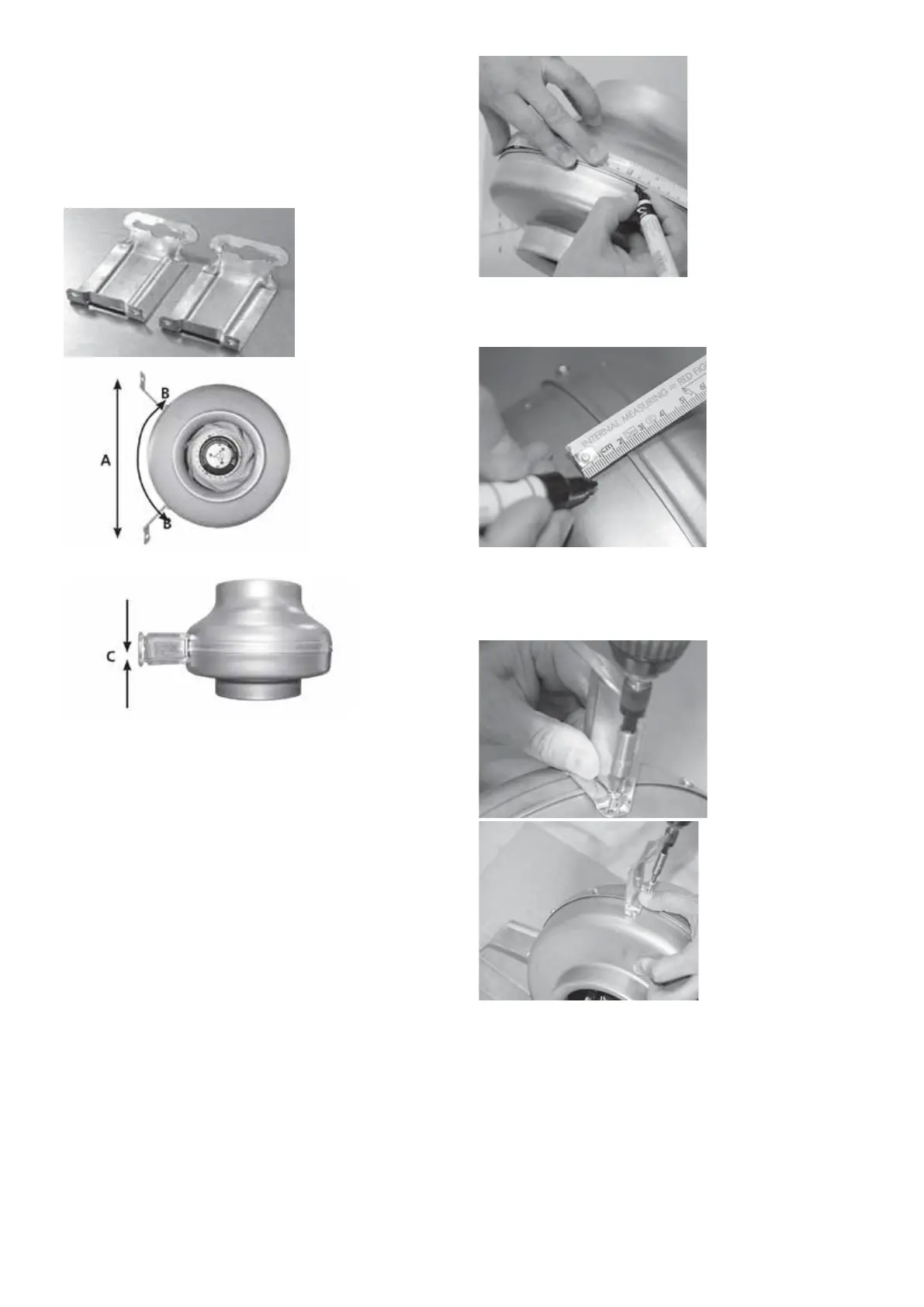

The brackets can be mounted horizontal
everywhere around the joint of the fan. For
right distance between the brackets, see the
dimension table (B) and the distance from the
joint to screw-hole (C).
Fan size A +-2 B +-2 C +-1
100 277 185 18
125 277 185 15
150 B 299 210 18
150 C 323 248 17
160 B 299 210 18
160 C 323 248 17
200 323 248 18
250 323 248 18
315 350 275 17
1. Mark the measure of B on the fan for the
placementof the mounting brackets.
2. Mark the measure of C. Start from the joint of
the fan.
3. Fasten the mounting brackets with the
self-drilling screws
INSTALLION INSTRUCTION
Installation instructions for exhaust systems for
duct fan, type CK.
