OPEL 1900 AND MANTA STEERING COLUMN ASSEMBLY 3E.35
I
I
OPEL 1900 AND MANTA STEERING COLUMN
ASSEMBLY
CONTENTS
Subject
Page No.
DESCRIPTION AND OPERATION:
Description and Operation of Directional Signal
Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description and Operation of Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Description of Steering Column Assembly
. . . . . . . . . . . . . .
DIAGNOSIS: (Not Applicable)
MAINTENANCE AND ADJUSTMENTS: (Not
Applicable)
MAJOR REPAIR:
3E-35
3E-36
3E-36
Removal and Installation of Steering Column
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation of Steering Wheel . . . . . . . . . . . .
Disassembly and Reassembly of Direction Signal
Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly and Reassembly of Steering and
Ignition Lock Cylinder, and Electrical Switch
from Mast Jacket Assembly
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS:
Steering Column Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3E-36
3E-38
3E-39
3E-40
3E-41
DESCRIPTION AND OPERATION
DESCRIPTION AND OPERATION OF
DIRECTIONAL SIGNAL LEVER
high to low beam or vice versa. On all 19M) Rallye
cars, when switching from low to high beam posi-
tion, with the fog lamp instrument panel switch ON
The direction signal switch lever is a multi- purpose
lever controlling direction signals, passing signal and
headlight high and low beams. See Figure 3E-2.
The dire&M signal lever is provided with a two-
step mechanism for operation of headlight high and
low beams, and passing signal (not in N.J.). With
headlights off, moving the lever repeatedly towards
steering wheel flashes headlights as a passing signal.
With headlights on, moving the lever repeatedly to-
wards steering wheel up to first stop also flashes
passing signal regardless whether or not the direction
signals are switched on. When the lever is moved up
to the second stop, the headlights are changed from
SE.2

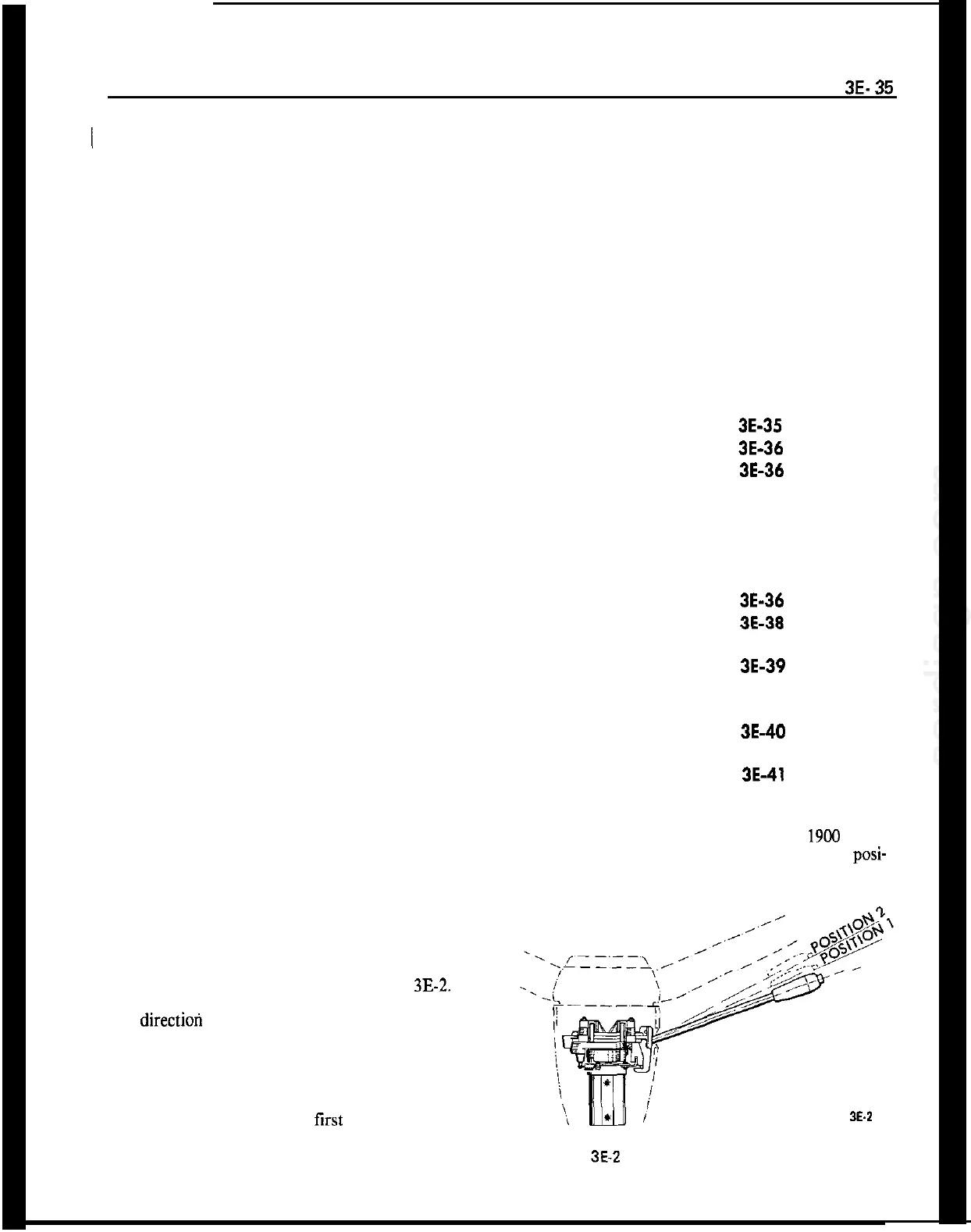

Figure 3E-2 Directional Signal Lever Position for
Headlamp Operation
