Opel 1900 - Page 43

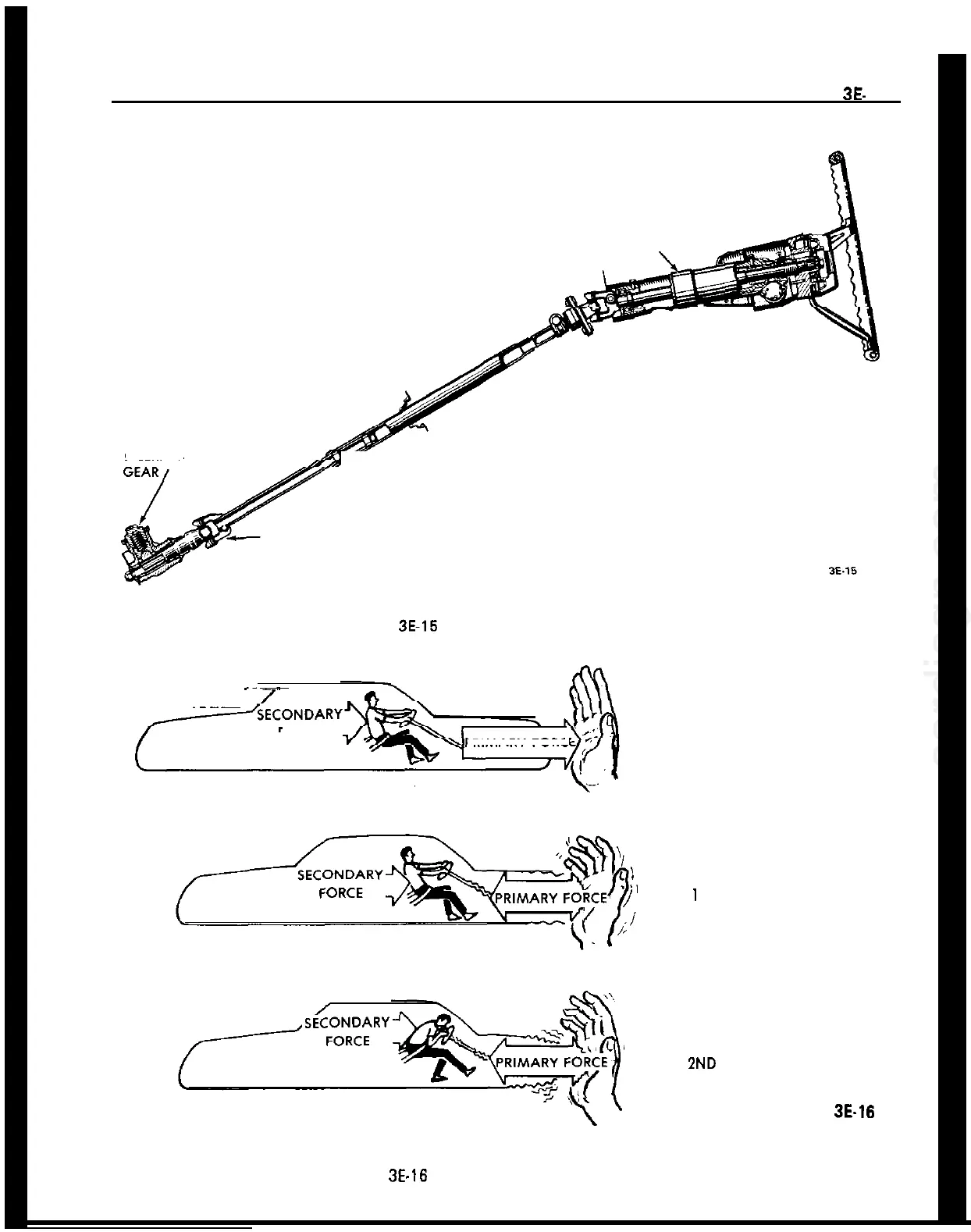

GT STEERING COLUMN ASSEMBLY
3E- 43
UPPER STEERING
COLUMN ASSEMBLY-\
-A
UPPER UNIVERSAL JOINT-
STEERING
-CENTER STEERING SHAFT
LOWER UNIVERSAL JOINT
Figure 3E-15 GT Steering Column Assembly
_--
7
FORCE
PRIMARY FORC
/
FORCES
BEFORE
COLLISION
I ST STAGE
(PRIMARY COLLISION)
2ND STAGE
(SECONDARY COLLISION)
3E-16
Figure 3E-16 Reaction of Forces in a Collision
