Omation Model 306 Setup Manual Inital Machine Setup
03/09/2018 Condential OPEX Setup Manual - Corp. Use Only - Not for Distribution
12
3
4

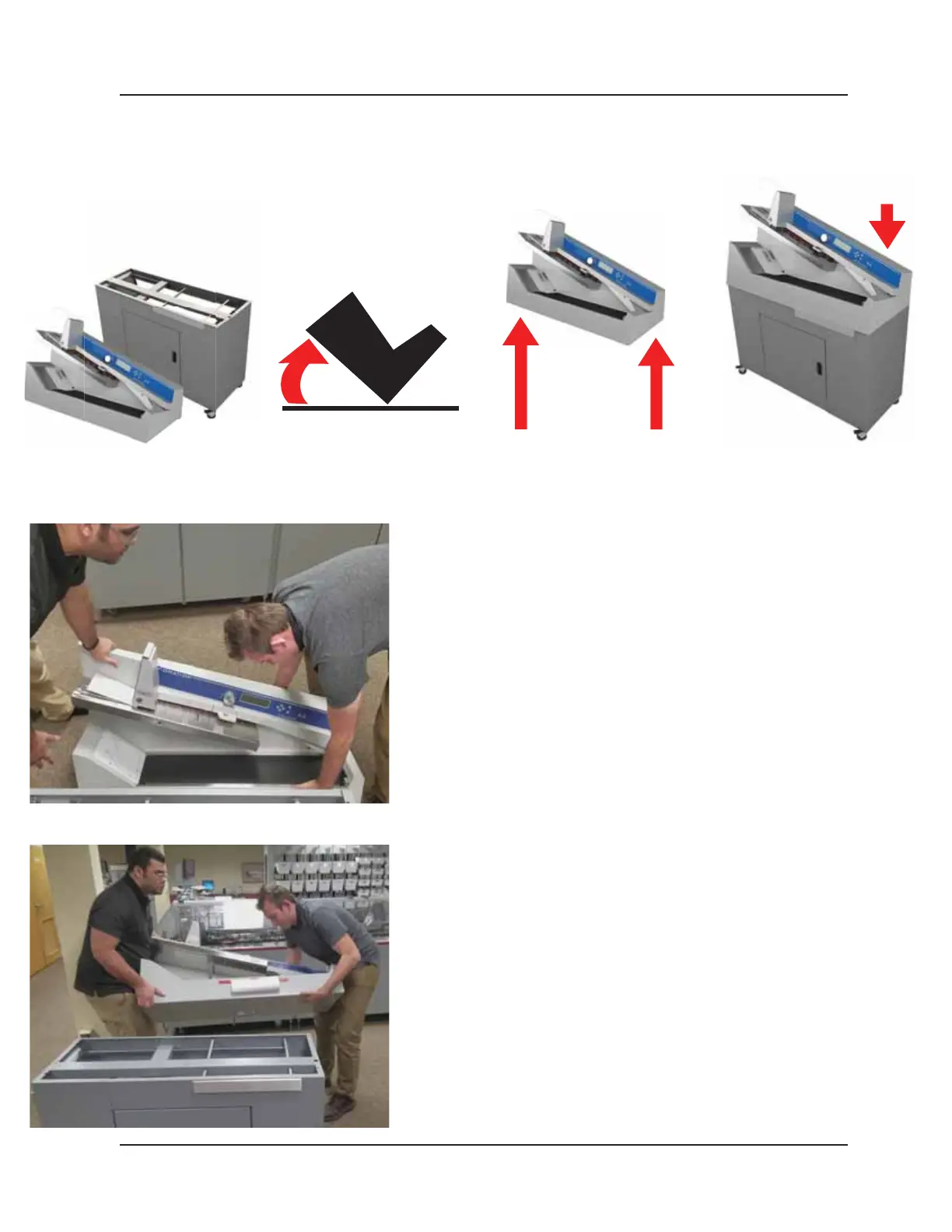

Unpack Tilt 35° Place on topLift from bottom
& back
bottom
back
Once the boxes are unpacked. Make sure that the top
and base of the Omation Model 306 are beside one
another on the ground. Engage the wheel brakes on
the base.
Then, with 2 people, tilt the top piece until the back
and the bottom of the top piece are at a 35° angle
from the oor. Place your hands underneath the back
and the bottom while squatting and then lift togeth-
er with your legs.
Carefully walk the top piece over and hold it over the
base.
*Tools and items required: Phillips screw driver and some type of padded material to lay on.
