Remove PCIe Card Cables From Secondary HBA PCIe Card
b.
Remove the server node from the system.
Power is removed from the server node when you remove it from the system. See
“Removing Server Nodes From the System Chassis” on page 147.
c.
Remove the server node top cover.
See “Removing the Server Node Top Cover” on page 149.
2.
Disconnect the PCIe card cables and remove them from the server node.
The Secondary HBA PCIe Card sits in the top slot on the PCIe riser (PCIe slot 2)
a.

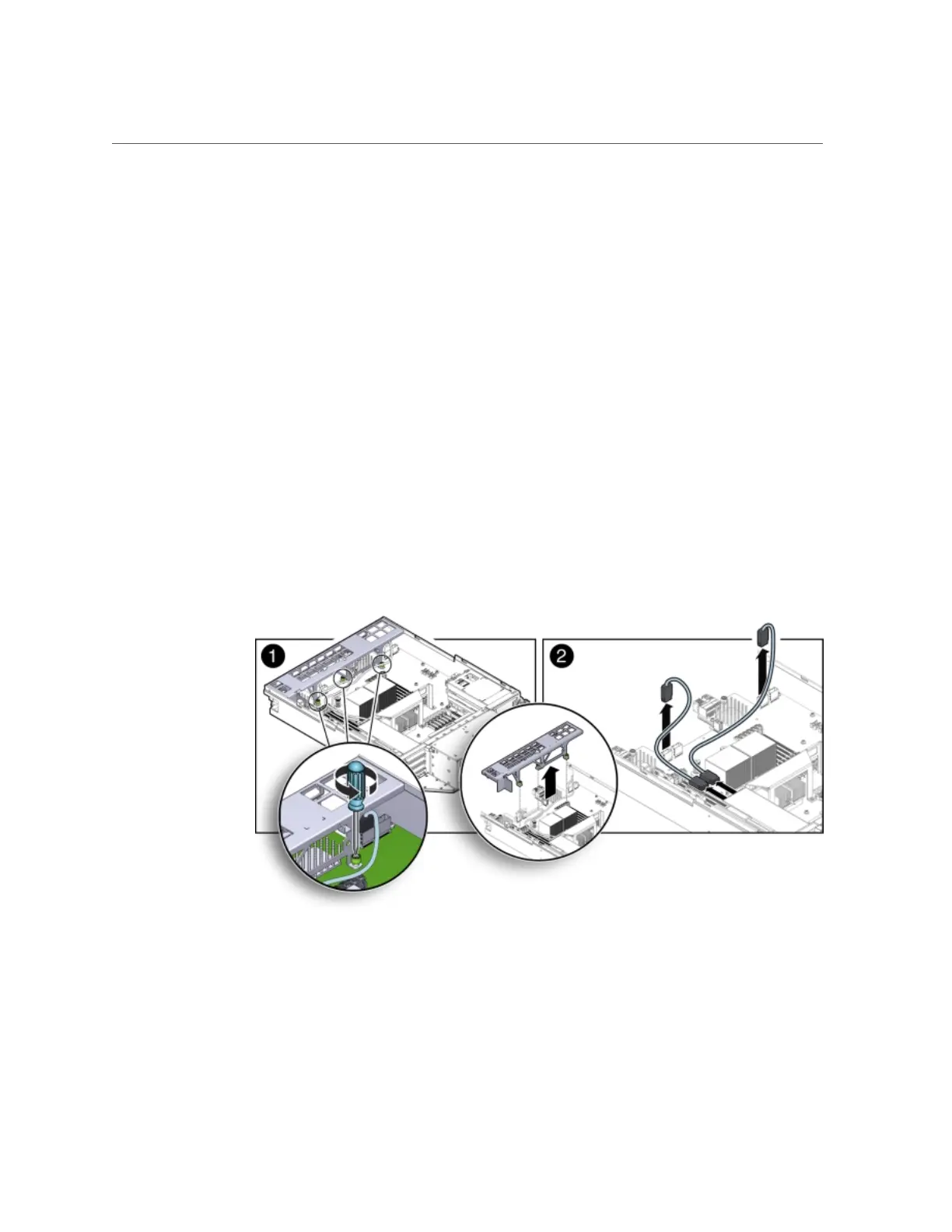

Loosen the three green, captive Phillips screws that secure the server
node's front cover and remove the cover [1].
b.
Disconnect the two secondary HBA PCIe card cables and remove the cables
[2].
To remove each cable connector, push the connector inward, press down on the connector
to release it, and pull the connector out.
Appendix A • Servicing the Oracle Database Appliance Version 1 233
