Troubleshooting (Continued)
System Expansion /Accessories
3/8” Professional System kit can be easily expanded up to 75 nozzles/150 feet of mist line by
adding additional Slip Lok T Fittings, clamps, and tubing. Simply remove the end plug from
the last Slip Lok T Fitting of your existing mist line and add tubing, clamps, and fittings to
your desired length.
Warranty and Statement
Orbit
®
Irrigation Products, Inc. warrants to its customers that its Orbit/Arizona Mist products
will be free from defects in materials and workmanship for a period of four years from the
date of purchase. We will replace, free of charge, the defective part or parts found to be
defective under normal use and service for a period of up to four years after purchase (proof
of purchase required). We reserve the right to inspect the defective part prior to replace-
ment. Orbit
®
Irrigation Products, Inc. will not be responsible for consequential or incidental
cost or damage caused by the product failure. Orbit
®
liability under this warranty is limited
solely to the replacement or repair of defective parts.
To exercise your warranty, return the unit to your dealer with a copy of the sales receipt.
Questions please call: 1-800-488-6156 or 1-801-299-5555
www.orbitonline.com
If a leak occurs in the actual tubing itself (not the point where
t
he tubing meets the fitting), the tubing must be replaced
w
here the leak has occurred.
1
. Make sure the nozzle is sufficiently tightened into place.
H
AND TIGHTEN ONLY DO NOT USE TOOLS.
2. Check to make sure the nozzle O-ring is in place.
3. Nozzle may be clogged which can give the appearance of
"
leaking" or dripping. Clean with nozzle cleaner.
1
. Remove tubing from Slip-Lok and look inside each end to make
s
ure that the O-ring is in place.
2. Remove tubing from Slip-Lok and check tubing. There should
be a line scored around tubing exactly 1/4'' from the end of the
t
ubing. If not, tubing has not been inserted past the O-ring in the
fitting. Re-insert tubing correctly.
3. Any horizontal scoring of the tubing could cause leaking.
Trim the tubing above any scoring marks with a clean vertical
cut and re-install tubing correctly. DO NOT USE SCISSORS.
Leak in Tubing
L
eak at Nozzle
L
eak at Slip-Lok Fitting
Problem Solution
10107
10109
10103
92110
92120
92220,
92225,
92228
10106
20001
10113
& 10121
3/8" Flexible Tubing - Available in
multiple lengths
Nozzle 5-Pack - Brass and stainless steel
nozzles available as replacements
Stucco Installation Kit
Slip-Lok T - Fittings with nozzles are available
to expand your mist system in 3-packs
or individually
Slip-Lok Elbow - Used wherever a clean
90 degree turn is needed in mist line
3-Way Slip-Lok T - Allows you to split mist
system and run in multiple directions
Nozzle Cleaner - 8 oz. bottle. Used to
dissolve mineral deposits on nozzles
AZ Mist Filter - Attaches directly to 3/4" hose bib
Protects nozzles from clogging due to sediment
Plug 5-Pack - Use to close
unneeded misting outlets

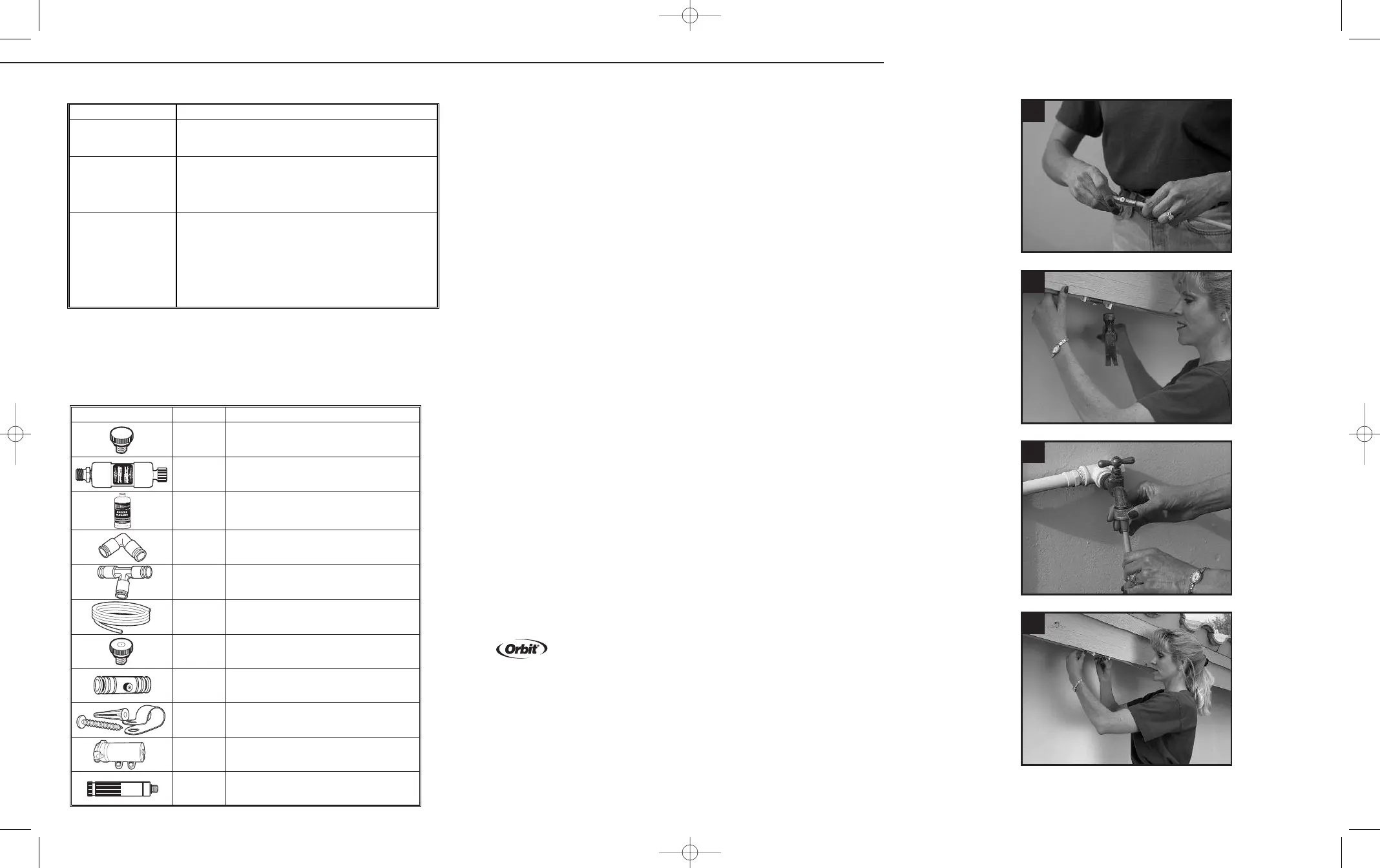

Picture Part # Product Description
Booster Pump
Auto Drain Valve
92100
10115
Register your product online at www.orbitonline.com
Orbit® Irrigation Products Inc.
845 N. Overland Rd.
North Salt Lake, Utah 84054 USA
http://www
.orbitonline.com
800-488-6156
801-299-5555
P/N 10060-24 Rev D
3
4
2
1
