GEM Series Coaxial HPGe Detector
Product Configuration Guide
7
CFG-SV, MOBIUS-ST
CFG-PV4, MOBIUS-PT

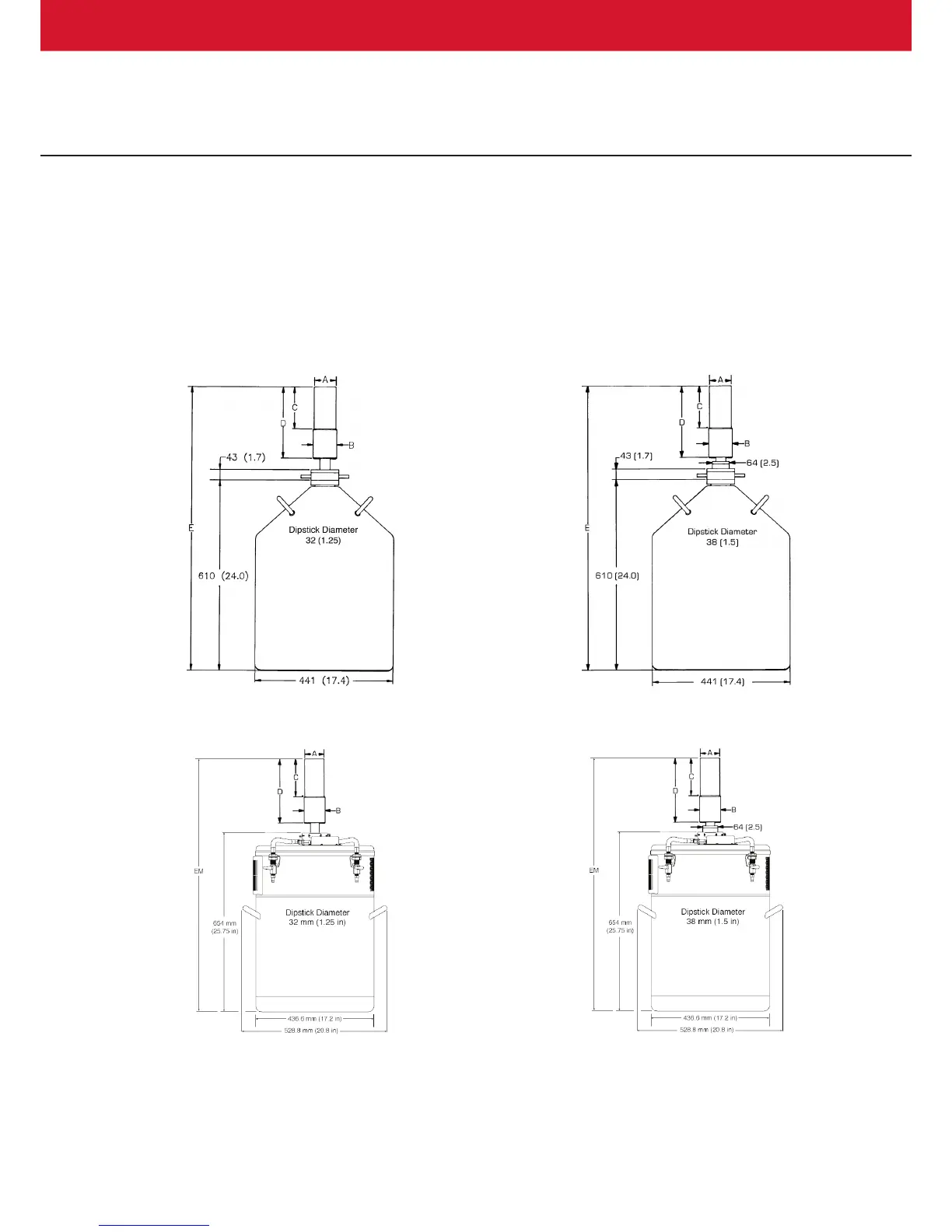

Note: Cryostat/Dewar drawings are NOT to scale, see tables that follow for complete dimensions.
D
imensions are for reference only and subject to change, if dimensional constraints are critical, contact the factory.
PopTop and Streamline Dimensional Data
S
treamline systems (detector capsule and cryostat or ICS) share the same vacuum. A cryostat or ICS must be ordered with a Streamline capsule. The
cryostat or cryostat/dewar selection must have a matching diameter to the capsule endcap.
The PopTop capsule features an internal vacuum arrangement. It can be mounted on any of the available PopTop cryostats, cryostat/dewar combinations, or
the X-COOLER III or ICS-P4 mechanical cooling systems.
The cryostat and dewar drawings that follow are to be used in conjunction with the accompanying tables of dimensions.
CFG-SV, DWR-30 CFG-PV4, DWR-30
