osann LUPO ISOFIX User Manual

EN

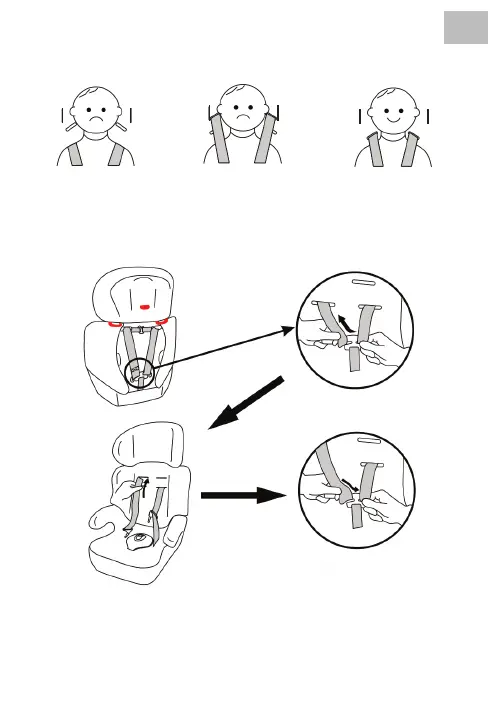

Correct shoulder strap height
Belt too low Correct Belt too high
Always check the shoulder straps are at the correct height for you child. The child‘s shoulders
should always be below the slot for the harness.
Firstly, release the strap holding the backrest cover on to gain access to the harness. Slide one of
the harness straps o the harness connector. Then from the front of the seat, pull it through the
slot in the seat‘s backrest and fabric cover. Thread the harness strap back through the next hole up
or down on the seat‘s backrest.
Re-thread the harness strap back onto the harness connector at the back of the seat.
Repeat the same process for the other harness strap. Make sure both of the straps go through
slots at the same height.
Changing the shoulder strap height

osann LUPO ISOFIX Specifications

General

Coloration	Monochromatic
Mounting type	ISOFIX + Seat belt
Product color	Black
Car seat group	1-2-3 (9 - 36 kg; 9 months - 12 years)
Side protection	Yes
Recommended gender	Boy/Girl
Adjustable backrest	-
Belt fastening type	5-point
Placement available	Forward-facing
Maximum weight capacity	36 kg
Minimum weight capacity	9 kg
Number of belt positions	2
Number of headrest positions	7

Weight and Dimensions

Depth	430 mm
Width	440 mm
Height	665 mm
Weight	6300 g
Height (max)	750 mm
Height (min)	560 mm
