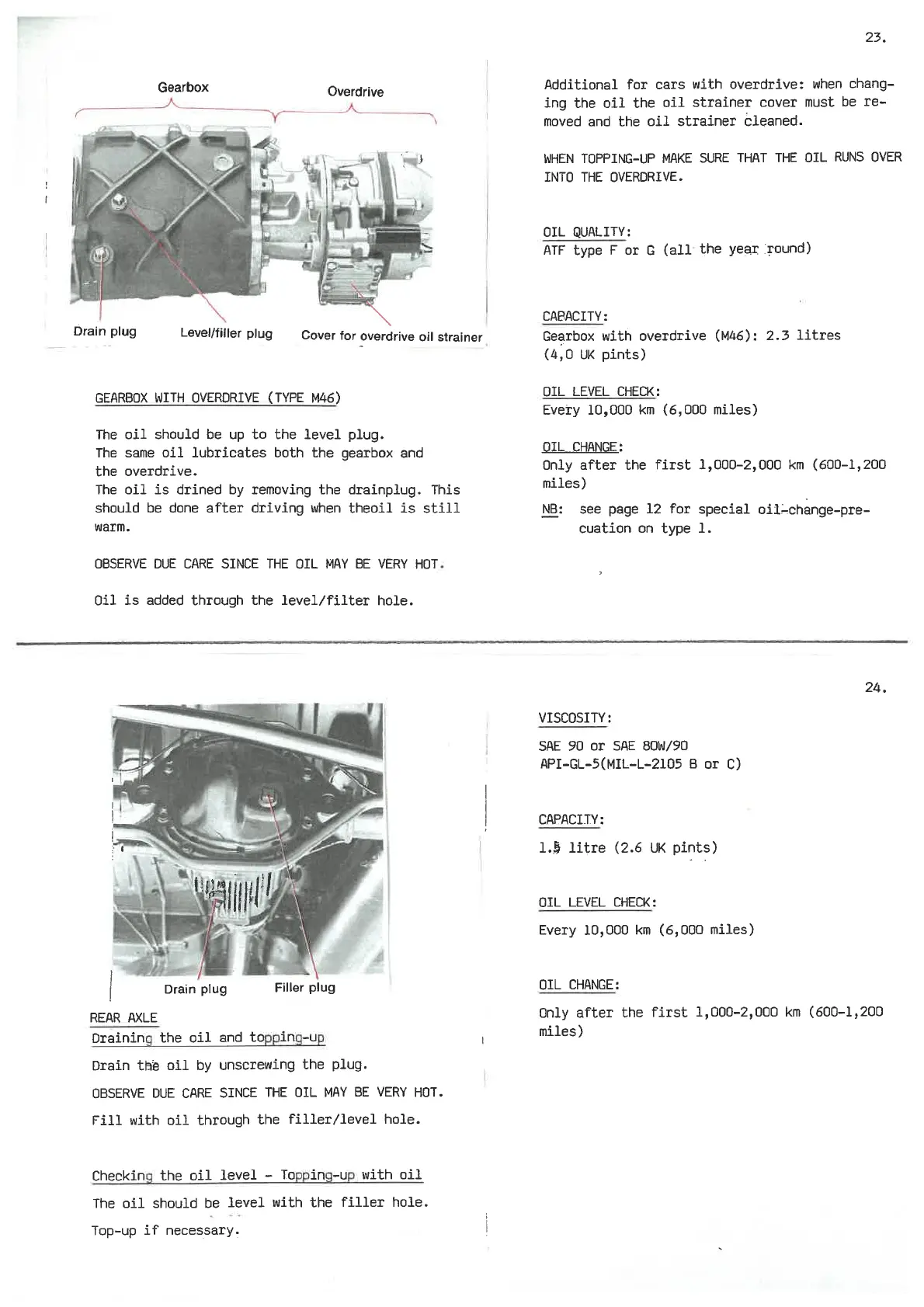

23.
Gearbox
Overdrive
Additional for cars with overdrive: when chang-
ing the oil the oil strainer cover must be re-
moved and the oil strainer cleaned.
WHEN TOPPING-UP MAKE SURE THAT THE OIL RUNS OVER
INTO THE OVERDRIVE.
OIL QUALITY:
ATF type F or G (all the year round)
Drain plug
Level/filler plug Cover for overdrive oil strainer
GEARBOX WITH OVERDRIVE (TYPE M46)
The oil should be up to the level plug.
The same oil lubricates both the gearbox and
the overdrive.
The oll is drined by removing the drainplug. This
shauld be done after driving when theoil is still
warm.
OBSERVE DUE CARE SINCE THE OIL MAY BE VERY HOT
Oil is added through the level/filter hole.
CABACITY:
Gearbox with overdrive (M46): 2. 3 litres
(4, 0 UK pints)
OIL LEVEL CHECK:
Every 10, 000 km (6, 000 miles)
PIL CHANGE;
Only after the flrst 1, 000-2, 000 km (600-1, 200
miles)
NB: see page 12 for special oll-change-pre-
cuation on type l.
VISCOSITY:
SAE 90 or SAE 80U/90
API-GL-5(MIL-L-2105 B or C)
24.
^
CAPACI. TY:
l. § Iltre (2. 6 UK plnts)
OIL LEVEL CHECK:
Every 10, 000 km (6, 000 miles)
Drain plug
Filter plug
REAR AXLE
Drainin the oil and to in -u
Drain ttaé oil by unscrewing the plug.
OBSERVE DUE CARE SINCE THE OIL MAY BE VERY HOT.
Fill with oil through the filler/level hole.
OIL CHANGE:
Only after the first 1, 000-2, 000 km (600-1, 200
miles)
Checkin the oil level - To in -u with oil
The oil should be level with the filler hole.
Top-up if necessary.
