OTC 1833 - Page 5

Parts List
- 60178 1 Press Frame only
(for 1833, 1834)
- 203400 1 Press Frame only
(for 014-00085)
1 34809 2 Upper Bolster
2 10046 1 Cap Screw
(3/8-16 UNC x 3/4" lg.)
3 29695 3 Pulley
4 29696 2 Pulley Axle
5 10216 8 Nut (3/4-10 UNC)
6 14601 1 Trade Name Decal
(for 1833 & 1834)
7 10118 8 Cap Screw
(3/4-10 UNC x 1-1/2" lg.)
8 10208 4 Nut (1/2-13 UNC)
9 10610 2 Beveled Washer (1/2" bolt)
10 52149 1 R.H. Upright
11 41629 1 Cylinder Mounting Plate
12 50760 1 Lower Bolster
13 304485 2 Foot Angle
14 35573 1 Spacer Angle
15 34555 2 Bolster Pin
16 10090 2 Cap Screw
(1/2-13 UNC x 2-3/4" lg.)
17 46896 1 Warning Decal
18 10049 3 Cap Screw
(3/8-16 UNC x 1" lg.)
19 12004 6 Washer (1/2" bolt)
20 10080 4 Cap Screw
(1/2-13 UNC x 1-1/4" lg.)
21 18895-1 1 Winch
22 10204 4 Nut (3/8-16 UNC)
23 52150 1 L.H. Upright
24 10231 2 Washer (for 3/8" bolt)
Not Shown
51426A 1 Cylinder Assembly
Item Part No.
No. No. Reqd. Description
Item Part No.
No. No. Reqd. Description

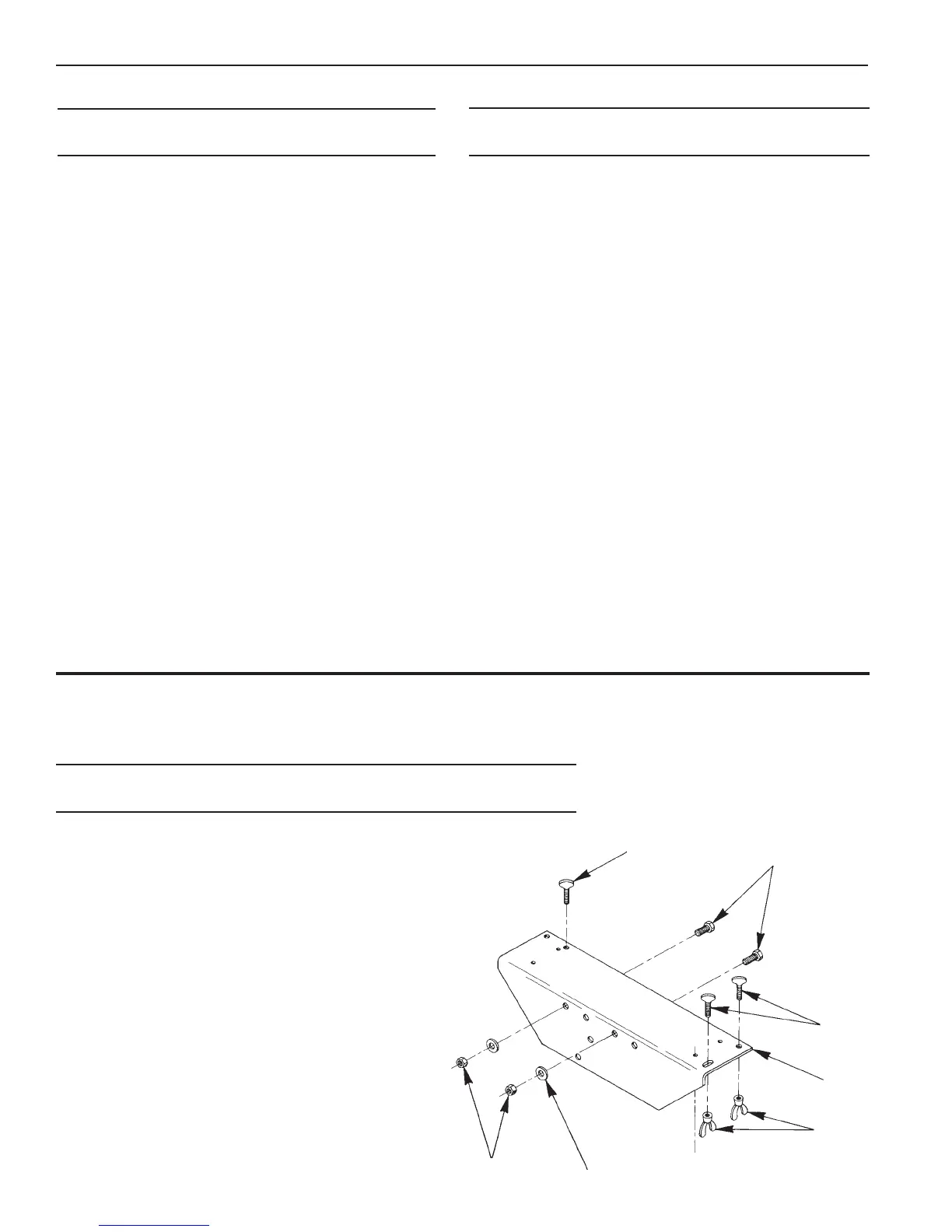

Pump Mounting Bracket
(used on 1833, 014-00085)
1 12680 3 Thumb Screw
2 10049 2 Cap Screw (3/8-16 UNC x 1" lg.)
3 42733 1 Pump Mounting Bracket
4 10590 3 Wing Nut (for 1833)
12029 3 Wing Nut (for 014-00085)
5 10231 2 Washer (3/8" bolt)
6 12013 2 Locknut
