OTC 6685 - Timing Chain Holders (No. 536186 & No. 536187)

No. 536186 & No. 536187
Timing Chain Holders
Applications: 2.0L VIN P 4-cylinder engine used in
2005-2007 Chevrolet Cobalt
2.2L DOHC VIN F 4-cylinder engine used in
2002-2005 Chev Cavalier, 2003-2007 Chev Malibu,
2004-2005 Chev Classic, 2005-2007 Chev Cobalt,
2002-2004 Olds Alero, 2002-2005 Pontiac Sunre
and Grand Am, 2000-2005 Saturn L Series,
2002-2007 Saturn Vue, 2003-2007 Saturn ION
2.4L VIN B 4-cylinder engine used in
2005-2007 Chevrolet Cobalt,
2005-2007 Pontiac G6, Solstice, and Pursuit

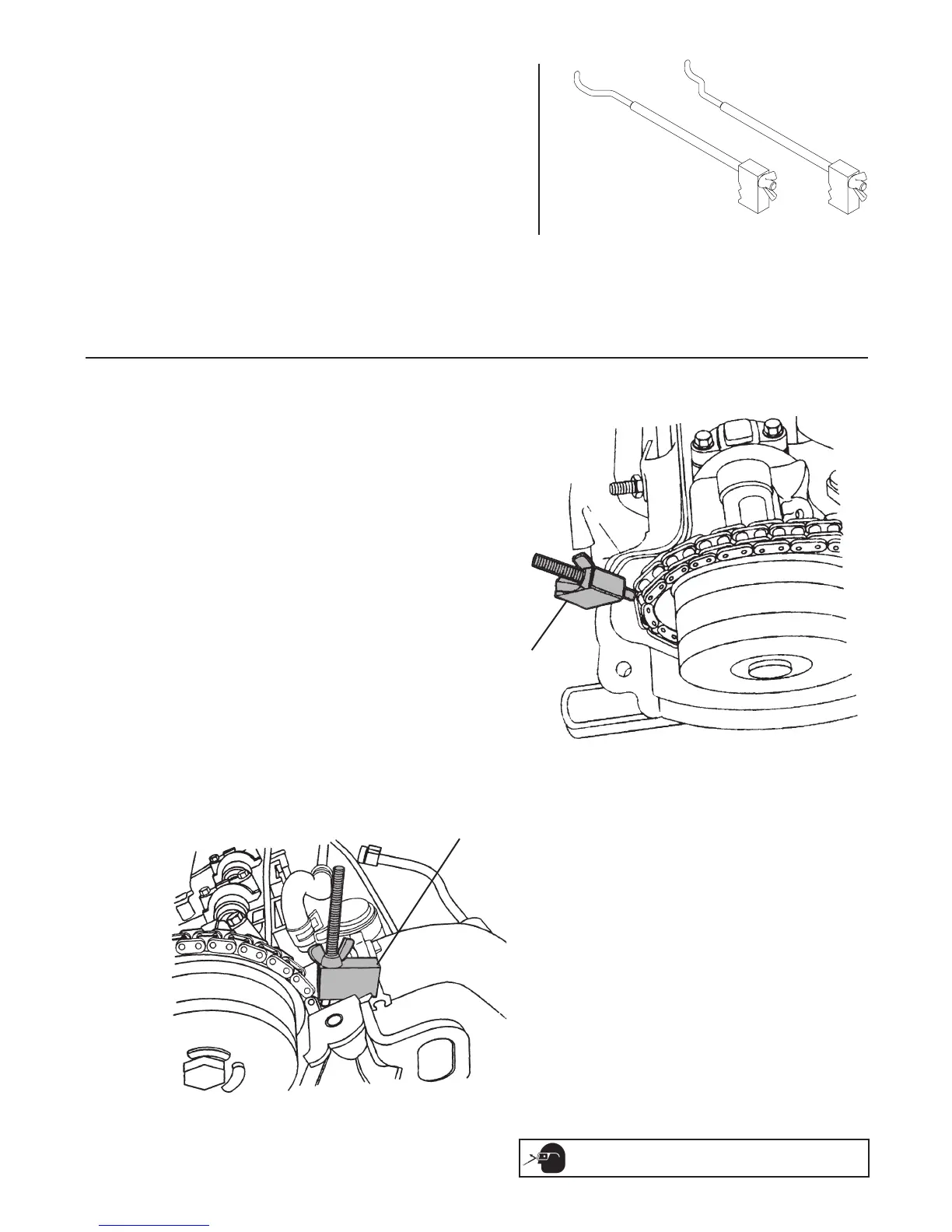

1. To retain the timing chain, install No. 526187 on
the exhaust camshaft side of the timing chain
assembly (see Figure 1). Hand-tighten the nut
rmly.
2. To retain the timing chain, install No. 526186
on the intake camshaft side of the timing chain
assembly (see Figure 2). Hand-tighten the nut
rmly.
No. 536186
No. 536187
Figure 1
536187
Figure 2
536186
CAUTION: To prevent personal injury, wear eye
protection that meets ANSI Z87.1 and OSHA standards.
