CAUTION: To prevent personal injury, wear eye
protection that meets ANSI Z87.1 and OSHA standards.
No. 536173
Timing Belt Adjuster
Application: 1.6L 4-cylinder engine used in
2004-2007 Chevrolet Aveo
1. Loosen the water pump retaining bolts.
2. Using the timing belt adjuster No. 536173,
rotate the water pump counterclockwise
(CCW) to loosen the timing belt or
clockwise (CW) to tighten the timing belt.
3. Rotate the water pump clockwise (CW)
until the adjusting arm pointer of the timing
belt automatic tensioner is aligned to the
notch in the timing belt automatic tension
bracket. See Figure 2.
4. Tighten the water pump bolts.

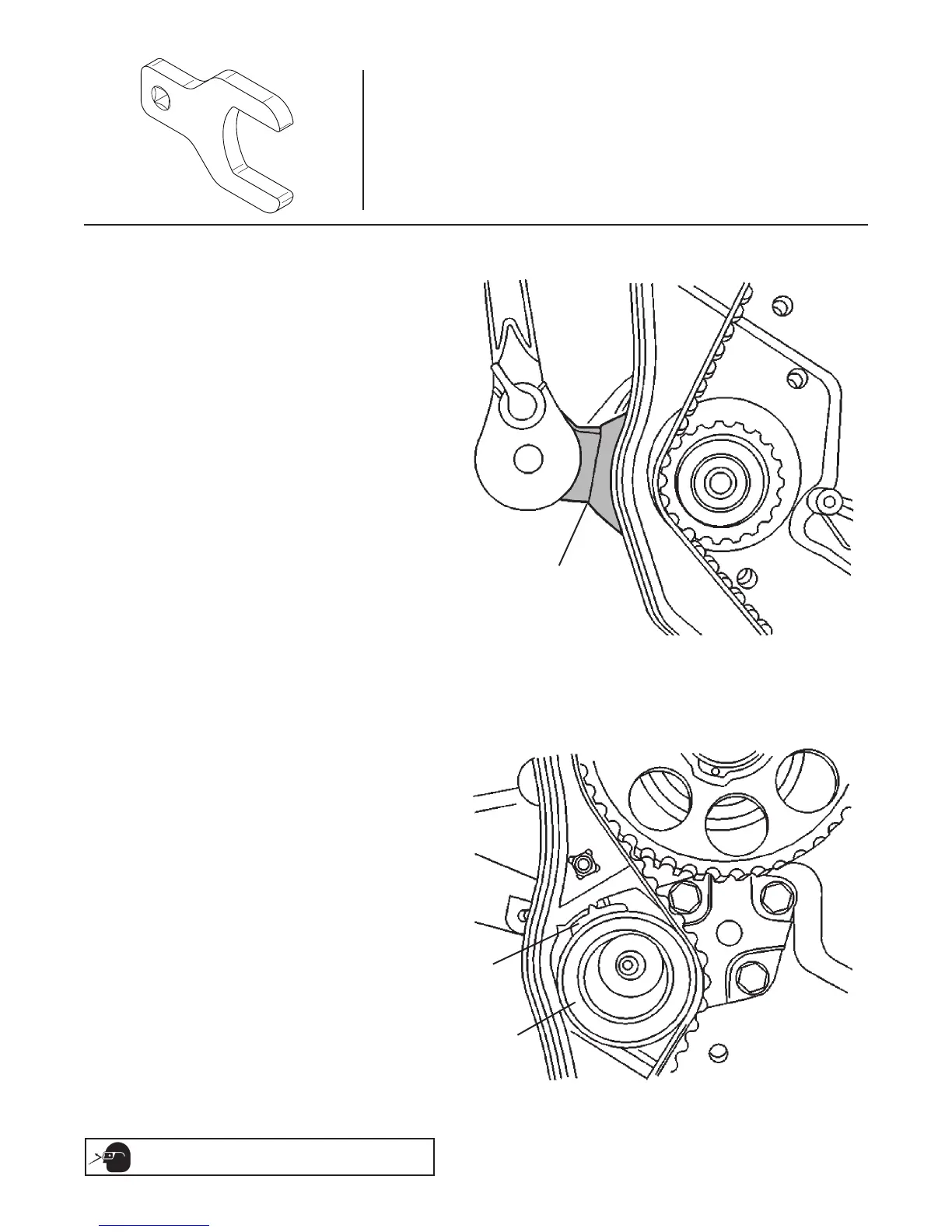

Figure 1
Figure 2
536173
Automatic
Tensioner
Adjusting
Arm Pointer
