OTC 6685 - Camshaft Sprocket Holding Tool (No. 527056); Purpose and Operation

No. 527056
Camshaft Sprocket Holding Tool
Application: 2.0L VIN P 4-cylinder engine used in
2005-2007 Chevrolet Cobalt
2.2L DOHC VIN F 4-cylinder engine used in
2002-2004 Olds Alero, 2002-2005 Pontiac Sunre & Grand Am
2000-2005 Saturn L Series, 2002-2007 Saturn Vue,
2003-2007 Saturn Ion, 2002-2005 Chevrolet Cavalier,
2002-2007 Chevrolet Malibu, 2005-2007 Chevrolet Cobalt
2.4L DOHC VIN B 4-cylinder engine used in
2005-2007 Chevrolet Cobalt and HHR,
2005-2007 Pontiac G6, Pursuit, and Solstice

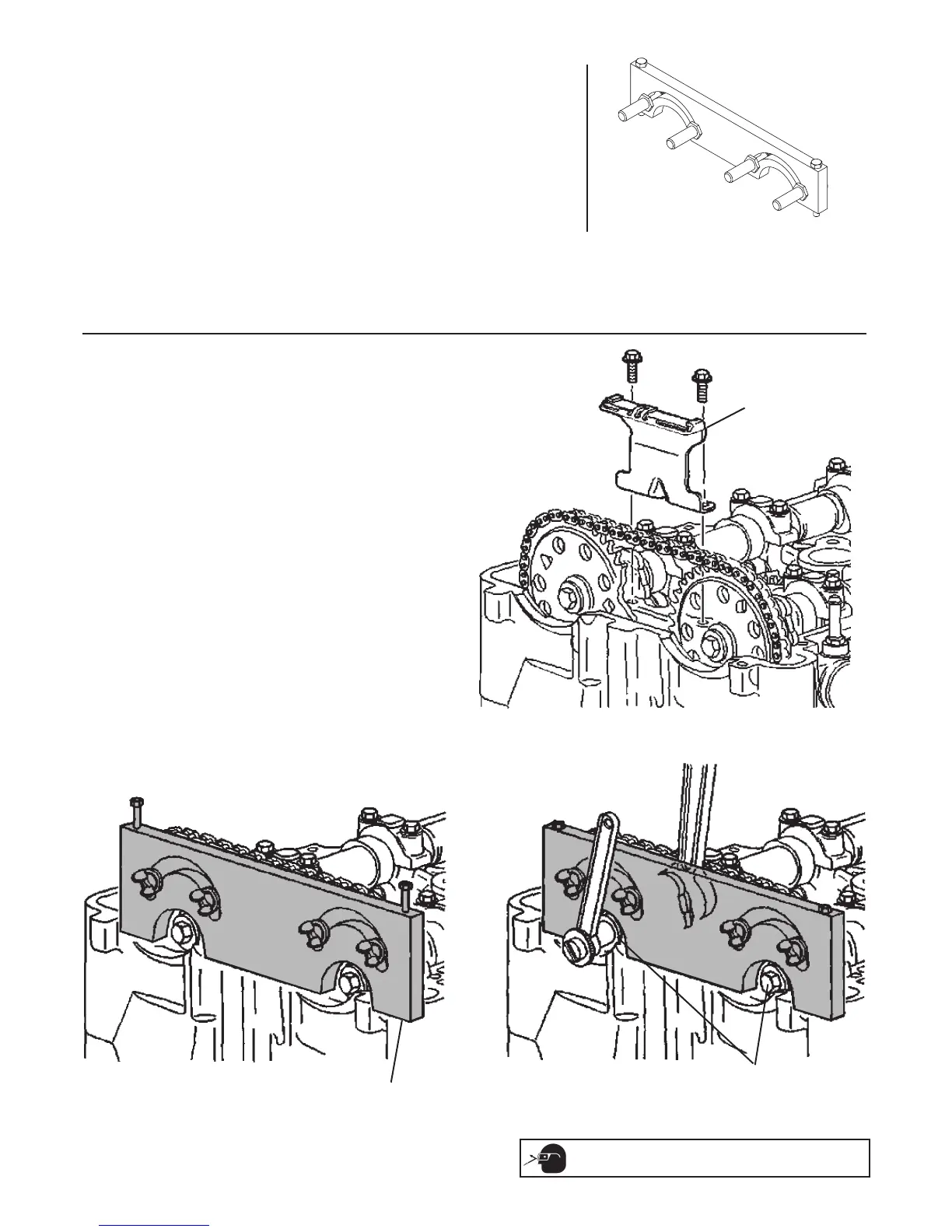

1. Remove the upper timing chain
guide. See Figure 1.
2. Install No. 527056 camshaft
sprocket holding tool. See Figure 2.
3. Remove the intake and exhaust
camshaft sprockets bolts. Slide the
camshaft sprocket and timing chain
forward to clear the camshaft. See
Figure 3.
No. 527056 camshaft sprocket holding tool
is used to hold the cam sprockets and chain
in time when servicing the camshafts of
valve components.
Figure 2
Figure 3
Camshaft
Sprocket Bolts
527056
Figure 1
Timing Chain
Guide
CAUTION: To prevent personal injury, wear eye
protection that meets ANSI Z87.1 and OSHA standards.
