Parts List & Operating Instructions Form No. 107340
Cleaning the Fuel Injector Cleaner
1. Install the quick coupler onto the end of the hose assembly.
2. Turn OFF the shut-valve at the bottom of the fuel injector cleaner. Note: Valve is OFF if it is turned all the
way clockwise.
3. Turn regulator on top of Fuel Injector Cleaner to full OPEN position (counterclockwise).
4. Attach a shop air hose to the tting on top of the cleaner container.
5. Insert the hose into a suitable container.
6. Adjust the air regulator to 50 PSI.
7. Turn the valve on the bottom the fuel injector cleaner to the OPEN position.
8. Let the cleaner ow into the container until the hose is empty.

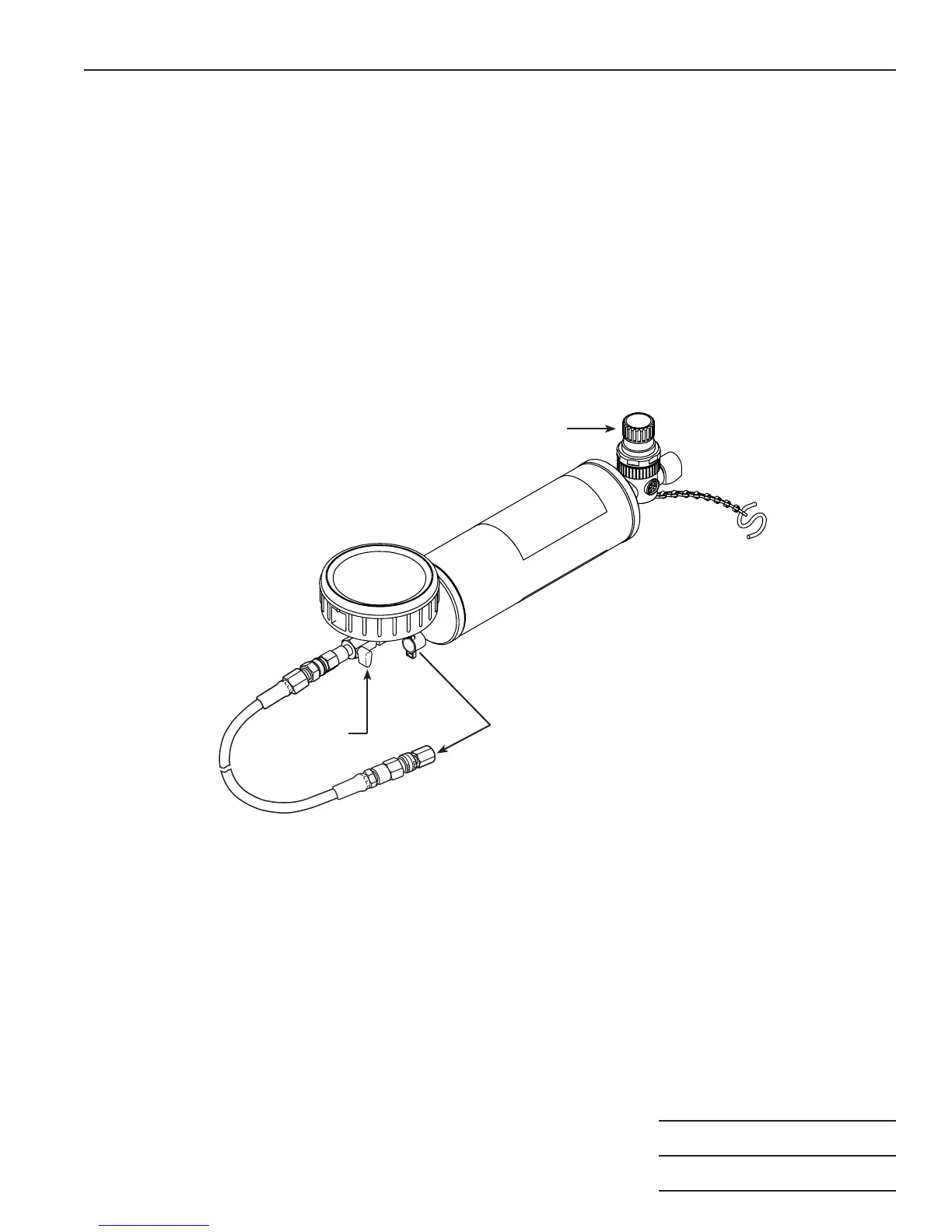

Figure 3
Regulator Assembly
Shut-off
Valve
3 of 3
Remove quick coupler
from holder and install
on end of hose.
