[Seat function 1/2] LED display
This LED display shows the currently active additional power function.
[Horn] button
The horn sounds as long as the button is pressed.
[Warning flasher on/off] button
All 4 warning flashers are activated/deactivated when this button is pressed.
If the wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Lights on/off] button
The front and rear lights are activated/deactivated by pressing this button.
If the wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Direction indicator right] and [Direction indicator left] buttons
Pressing this button activates/deactivates the respective front and rear direction indicators.
If the wheelchair is not fitted with lights for road traffic, this button is deactivated (no function).
[Selected speed level] LED display
The LED display shows the currently selected speed level (1–5, see page58).
A currently active automatic speed reduction (e.g.because a seat function was activated) is also displayed here:
Display Information
Flashing light
Restricted speed (creep speed)
[Charge level] LED display
The [Charge level] LCD screen is divided into 10 segments and shows the current charge level:
• After brief operation, the battery indicator shows the exact battery status.
• A charge of 100% corresponds to 10 segments on the battery symbol.
• As the remaining battery charge decreases, the LED segments turn off one by one.
• If only one segment of the LED display is flashing, then the battery is in an undervoltage state. The battery must
be charged immediately.
• If all 10 LED segments are flashing, this means that the battery is in an overvoltage state. Please continue to
drive at low speed only.
• The charging process is indicated by sequential flashing of the LEDs. The driving function is blocked when the
battery is charging.

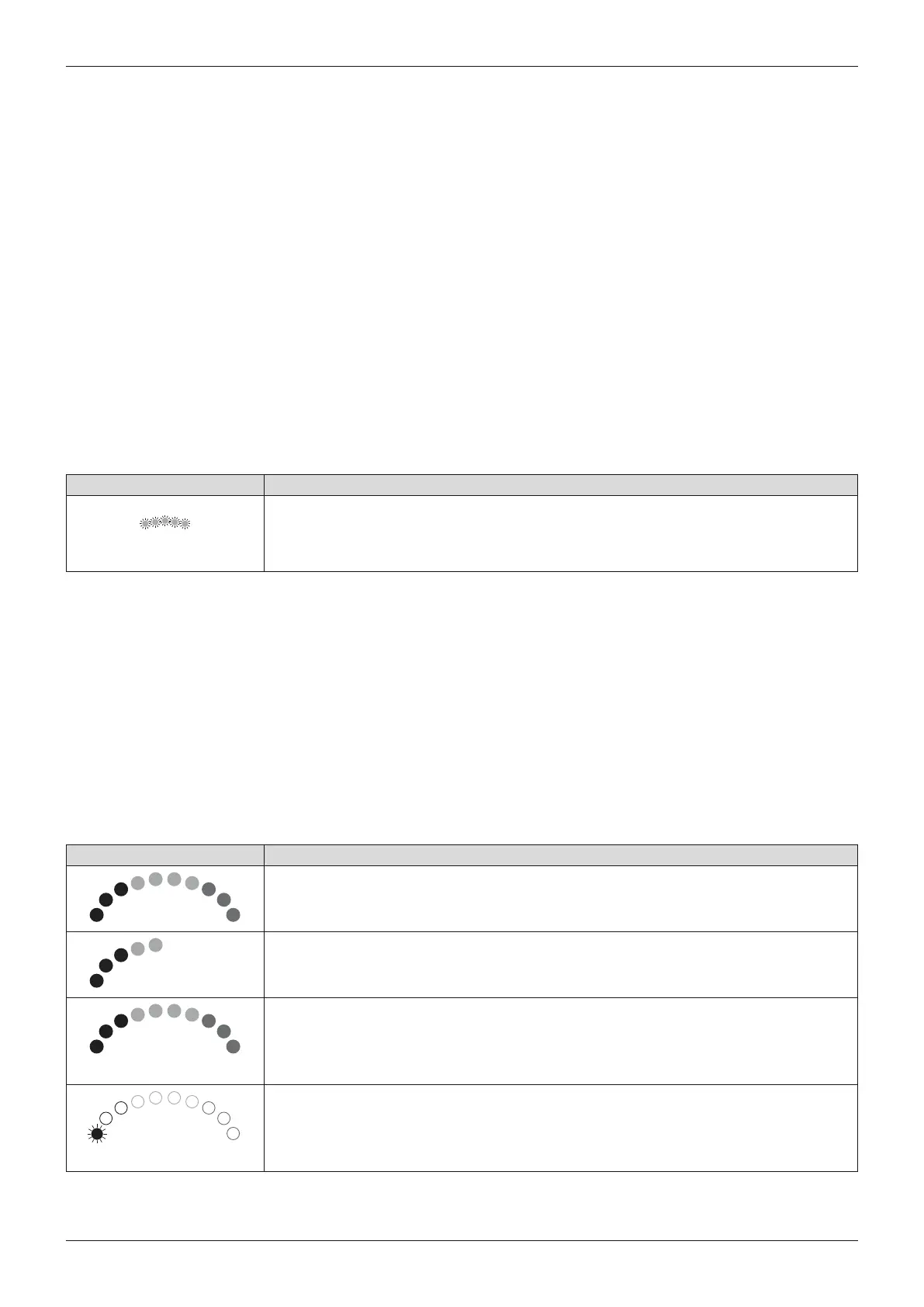

Battery indicator on the control panel
Display Information
Battery is charged
Charge battery if possible
Sequential indicator
Battery is charging
Flashing light
Battery undervoltage, battery charging urgently required
