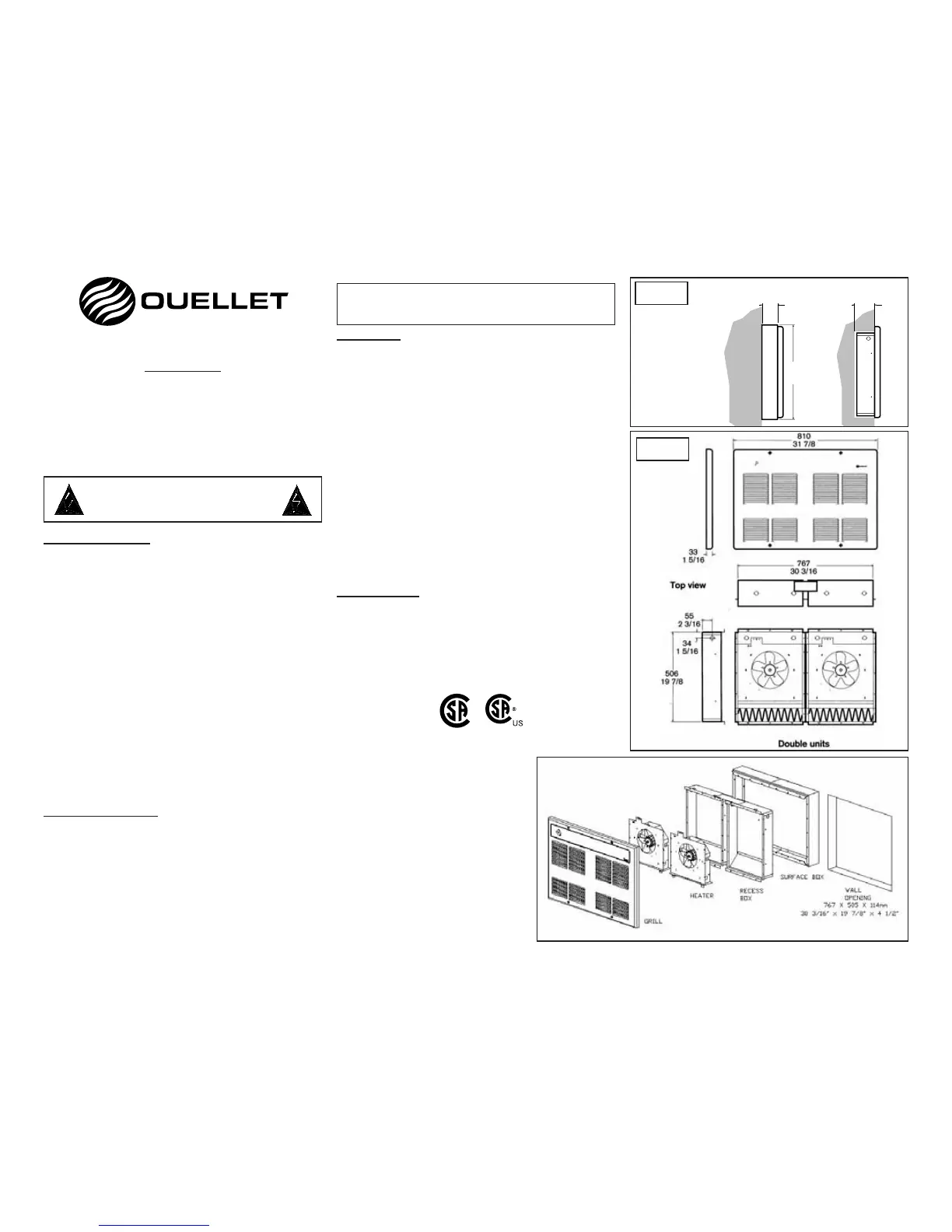

INSTRUCTIONS
For installation of the “OAC Series”
Commercial Wall Heater - double unit (6 to 8 Kw)
RECESS MOUNTING
1- Heater must be used with recess box.
2- Never install warm air outlet of heater less than
10 in. (250 mm) from fl oor or adjacent wall.
3- Provide an opening as shown 4 1/2 in. (114 mm) deep.
4- Remove the appropriate knockout from the recess box
for the electrical supply.
5- Attach fi rmly the recess box using provided screws.
6- Install the heater to the recess box and be sure that
the heater is attach fi rmly with four (4) provided screws.
7- Connect the heater leads to the supply leads according
to national and local codes. See wiring diagram in the
heater.
8- Make sure the fan rotates freely and that there is no foreign
object in the heater.
9- Install the front cover using the provided screws.
IMPORTANT: To insure that the cover is not upside
down, check if the logo is in the correct orientation.
10- To test the heater temporarily, set thermostat at maximum
temperature.
SURFACE MOUNTING
1- The surface box must be used with recess box.
2- Never install warm air outlet of heater less than
10 in. (250 mm) from fl oor or adjacent wall.
3- Locate the power supply leads behind the planned location
of the heater (surface box).
4- Mount the surface box securely to the wall with provided
screws.
5- Install both (top and bottom) of the grill support before
reinstalling the grill on the surface box.
6-Follow instructions 4 to 10 as above for recess mounting.
IMPORTANT
Do not obstruct front of heater for at least
48 in. (1220 mm).
ATTENTION
Basic precautions should always be followed to reduce the risk
of fi re, electric shock, and injury to persons.
- Read all instructions before using this heater.
- This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains
at least 48 in. (1220 mm) from the front of the heater.
- Do not use outdoors.
- Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock
or fi re, or damage the heater.
- Do not block air intakes or exhaust in any manner.
- Heater contains arcing and sparking parts. Do not use it in
areas where gasoline, paint, or fl ammable liquids are used
or stored.
- Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fi re,
electric shock, or injury to persons.
MAINTENANCE
Once a year, remove the grill and use a vacuum cleaner to
remove the dust accumulation inside the heater. Cleaning should
be done while the heater is disconnected from the supply circuit.
A qualifi ed technician should perform any other servicing.
KEEP THIS INSTRUCTION
PAMPHLET FOR THE USER INS02-200205-02
Required wall depth opening
Side View
DIMENSIONS
mm
inches
DIMENSIONS
mm
inches
WARRANTY
OUELLET CANADA INC. warrants the
component parts of the “OAC Series”
against defects in material and workmanship
for a one (1) year period following the date
of purchase, under normal use and service,
when proof of purchase of such is provided to
the manufacturer. The obligation of Ouellet
Canada inc., under the terms of this warranty,
will be to supply a new unit and this releases
the manufacturer from paying the installation
costs or other secondary charges linked to
replacing the unit or the component part(s).
THE INSTALLATION MUST BE EXECUTED
BY A QUALIFIED TECHNICIAN
RISK OF ELECTROCUTION
