CTC161207-1 (076-5451-6)

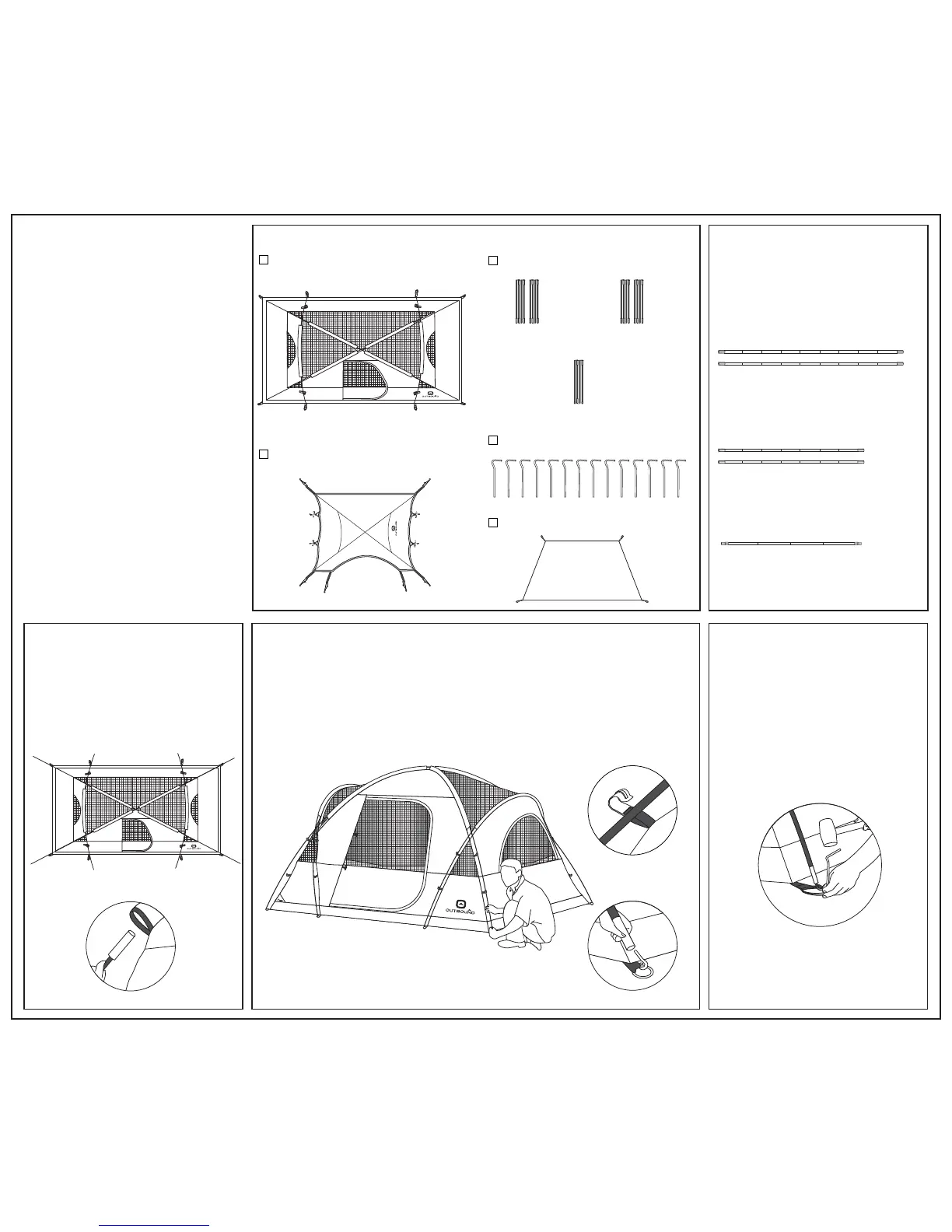

ASSEMBLY INSTRUCTIONS
Step 1: Verify package contents
Tent : 1 each
Step 4: Raise the tent Step 5: Stake the tent
1) Stake down the tent by inserting a
stake through the stake loops, located
along the perimeter of the tent.
2) Make certain the tent floor is pulled out
evenly and tightly.
3) Hammer the stakes into the ground at a
45
0
angle using a hammer or mallet.
Step 3: Spread tent and insert poles
Step 2: Assemble poles
1) Assemble the tent poles by placing
fibreglass sections into the metal ferrules.
Five poles are provided:
(A) Main 2 each (B) Side 2 each
(C) Fly 1 each
Rainfly : 1 each
Tent Stakes : 14 each
Fibreglass Poles : 5 each (total)
2 each (A) Main Poles (Black)
2 each (B) Side Poles (Yellow)
1 each (C) Fly Pole (Black)
IMPORTANT NOTES:
* Assemble your tent before camping to become
familiar with the assembly.
* Two people are recommended for setup.
* Select a clean, level area for the campsites, free
of debris and sharp objects, away from a any
natural watercourse.
* Use of a ground cloth is recommended to
prolong the life of the tent floor and provide
additional insulation and moisture protection.
* To prevent damage to the zippers, unzip the
doors and windows of the tent prior to
disassembly, allowing air to move freely.
* Seam-seal the inside stitched seams of the tent.
This will improve weather resistance. Available
in sporting goods departments. Discolouration
may occur if applied to outside seams.
1) Spread out the tent flat, floor side down.
2) Using the illustration below as a guide,
slide each main pole (A) through the pole
sleeves on either side of the door.
3) Slide each side pole (B) through the side
pole sleeves.
1) Starting at the front of the tent, have one person place and hold a main tent pole (A) onto the
pin located at the tent corner.
2) The second person, at the rear of the tent, takes hold of the other end of the same pole. The
pole is then flexed into an arch and carefully placed onto the corresponding pin. Repeat this
process for second main pole (A).
3) Place the side pole (B) onto the pin located near the centre of the tent.
4) Clip the plastic hooks on the tent to the fibreglass pole frame.
Divider : 1 each
CTC 161207-1 08/15
A AB B
To Next Page
