ASSEMBLY INSTRUCTIONS
8
TM

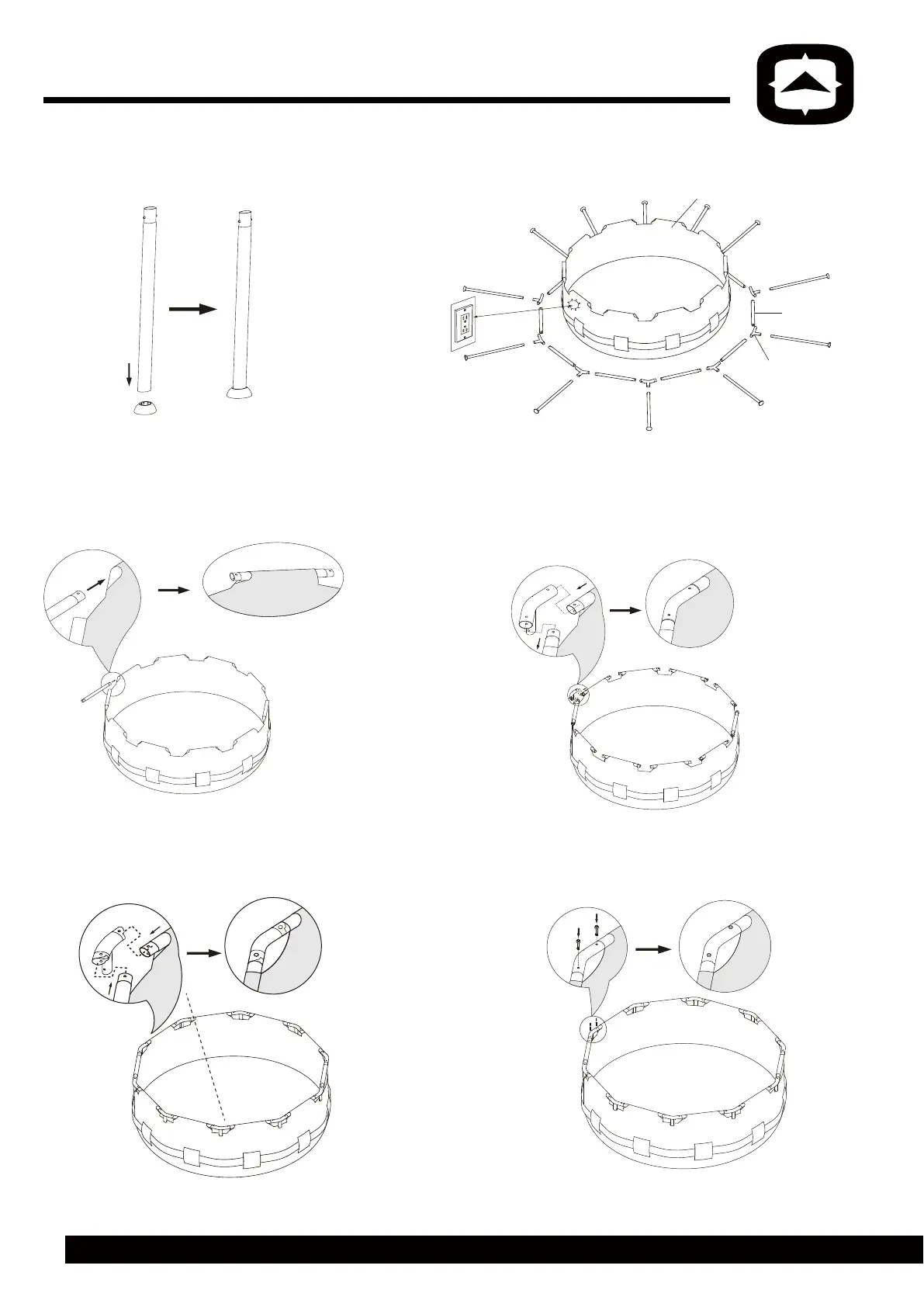

6. Attach the Vertical Leg 3 to each Leg Cap 6.
7. Lay down all parts on the ground as shown below.
6
3
8. Carefully slide the Horizontal Beams 2
into the sleeves of the pool.
2
2
4
4
11. Insert the Pin 7 down through the top of the T-Fittings
until the Pin snaps into place on the lower side of the T-fitting.
7
10. Connect the EZ Link T-Fitting 5 to the last remaining
Horizontal Beams 2.
5
9. Connect the T-Fitting 4 to the Horizontal Beam 2.
IMPORTANT: Connect all T-Fittings to all Horizontal Beams.
BUT reserve a space for the EZ Link T-Fitting 5.
2
4
1
10’ - 21’
(3 - 6.4 m)
* Image for reference only
