SET-UP
STEP 2.2
CONNECTION FOR NATURAL GAS
The Outdoor Plus re pits are shipped from the factory equipped to burn on the gas that has been ordered.
The ex line that runs from the igniter to the burner has been connected at the factory. You will only need to
connect the natural gas line from the igniter to the gas source, as shown in the Figure D.
Before you set the burner plate in place, make sure the air mix xture is connected undereath the pan max 6” away
from an open ame. The air mix xture is required for liquid propane but not for natural gas. (See Step 2) Make sure
the ex hose is connected to the burner as shown in Figure E.
Perform a leak test before you replace the burner plate. (See Step 3)
Connect to the gas source.
LOCATING THE GAS LINE
Make sure the gas line is out of pathways where people may trip over it and not in areas where the hose
may be subject to accidental damage. This applies to both natural gas and liquid propane gas lines.

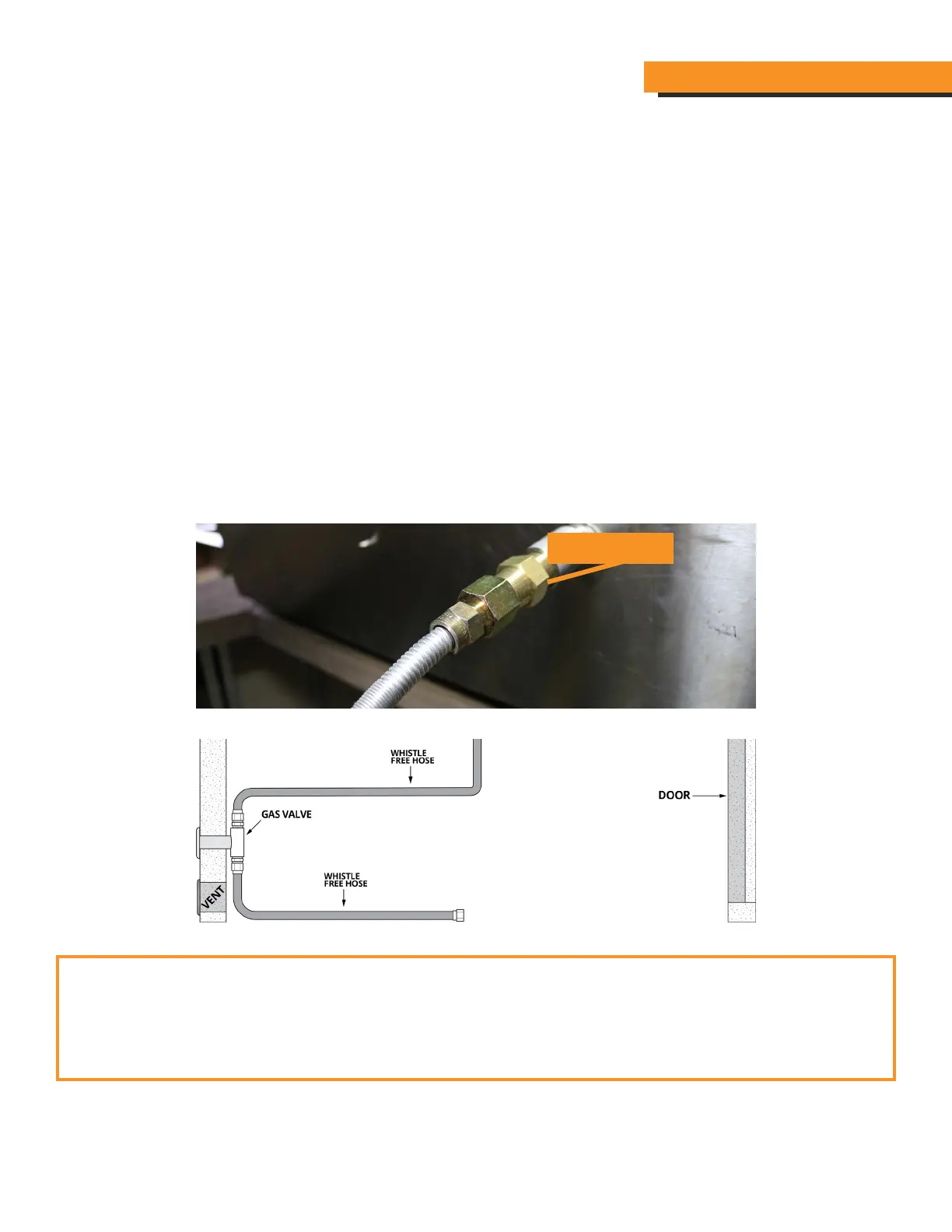

FIGURE D
FIGURE E
NG ORIFICE
FLORENCE | FIRE PIT
To Next Page
