2 Small Bolts
2 Nuts
5

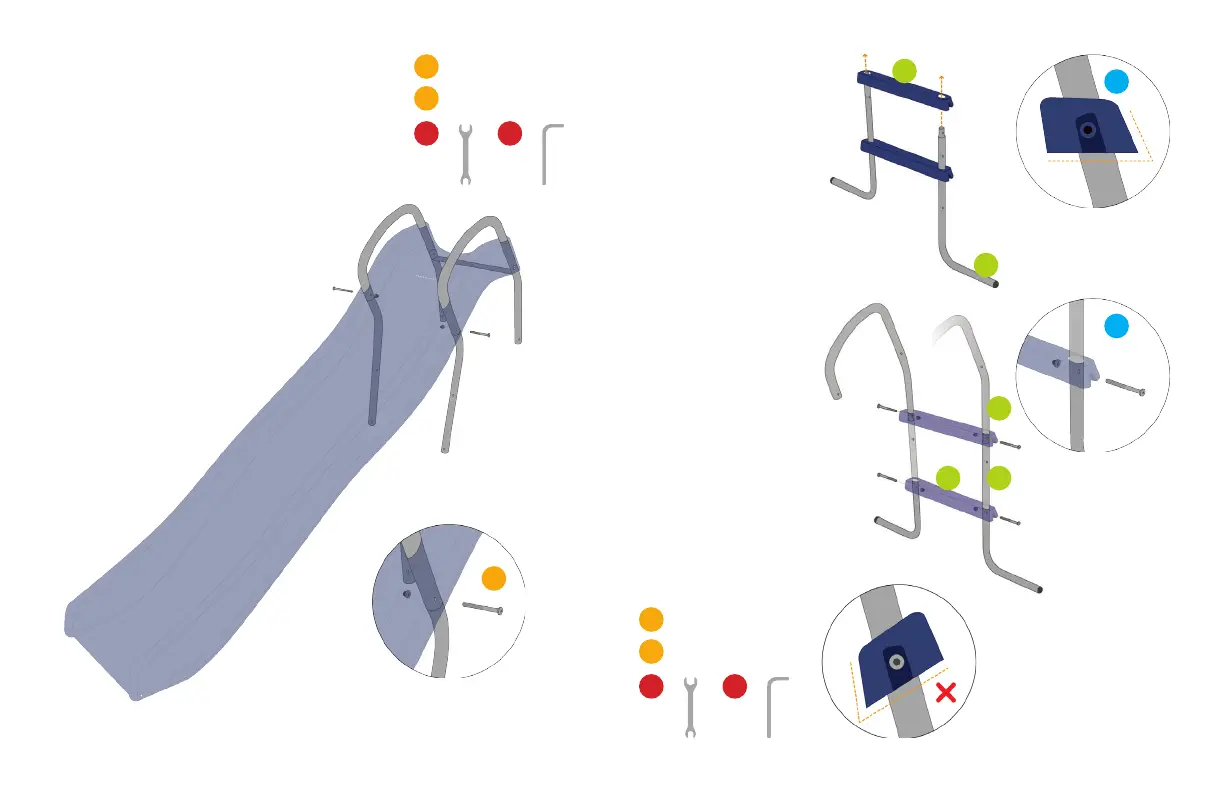

Insert two small bolts (B)
and nuts (C) into the slide
opening.
The bolts will go through the
slide eyelets, handlebars/
center leg support eyelets,
and screw them together
with the nuts (C).
Use the allen key (K) and the
wrench (W) to tighten the
bolts and nuts.
C
W K
B
C
4 Large Bolts
4 Nuts
6
Insert both footsteps
(Part 6) into each of the
long legs (Part 5).
Align both of the
footsteps as shown in
diagram 1. If aligned
properly, the
footsteps will lay flat
once they are inserted to
the handlebars
(Part 1).
The handlebar (Part 1),
top footstep (Part 6),
and long legs (Part 5) will
be screwed in together
as shown in diagram 2.
Use the allen key (K) and
the wrench (W) to tighten
the footsteps with the
bolts and nuts.
The footsteps are
installed incorrectly if
they are angled down
towards the ground.
A
W K
C
1
2
5
6
56
