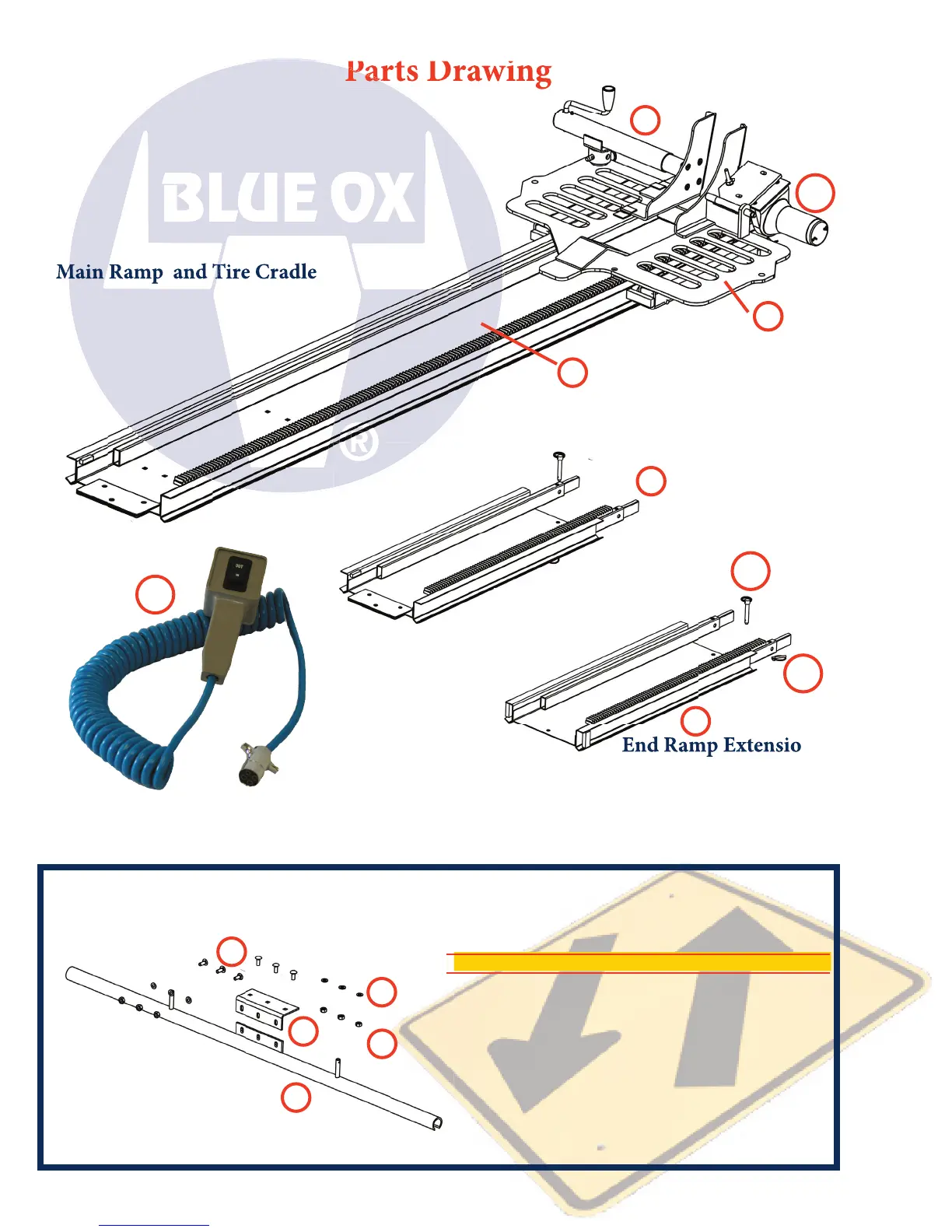

Main Ramp and Tire Cradle
Parts Drawing
Parts Drawing
Parts Drawing Parts Drawing
Main Ramp and Tire Cradle
Main Ramp and Tire Cradle
Main Ramp and Tire CradleMain Ramp and Tire Cradle
Main Ramp and Tire Cradle
Main Ramp and Tire Cradle
Figure 1-A
1
2
5
15
End Ramp Extension
Mid Ramp Extension
End Ramp Extension
Figure 1-C
Figure 1-B
Figure 1-D
Corded Control
3
4
24
25
26
Pivot Tube
(packaged separately)
Parts List
Ref.# Oty. Part # Description
1 1 Pivot Tube
2 6 201-0034 3/8-16 x 1 Carr. Bolt Grd. 5, ZP
3 6 203-0003 3/8 Flat Washer, ZP
4 6 202-0090 3/8-16 Hex Nylon Insert Lock Nut, ZP
5 1 102-6651 Ramp Adjustor Plate
6 12 290-0450 Plastic Washer (not shown)
Figure 1-E
1
2
3
4
5
See page 2 for complete parts list.
