Page 7

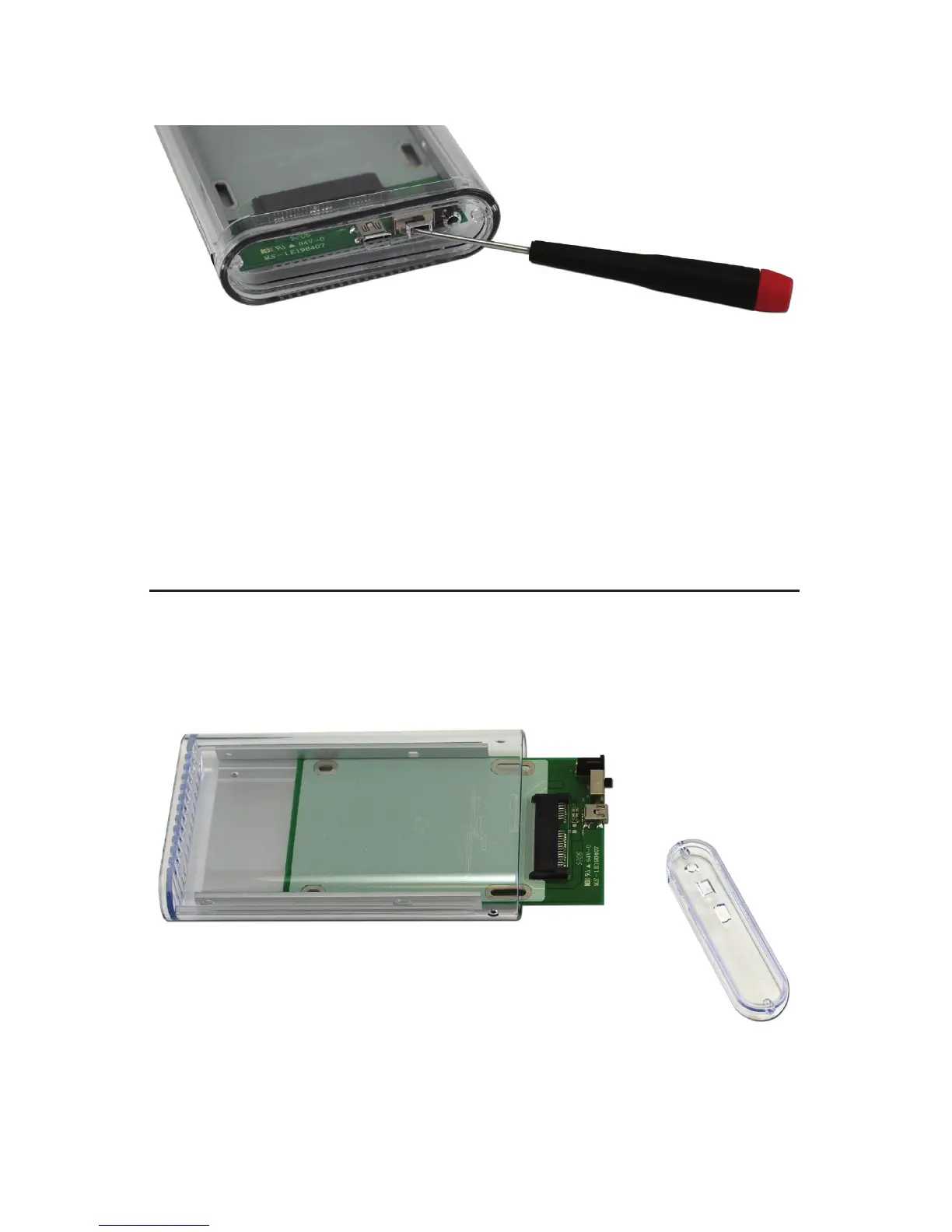

Begin the assembly process by removing the plastic endcap from
the acrylic enclosure. It is easily removed using a screwdriver to
lever the cap o of the case.
Once the endcap is removed, slide the bridge card out of the
acrylic enclosure. Note that the bridge card slides on rails into
the aluminum heatsink and is not fastened physically inside the
enclosure.
