INSTALLATION AND OPERATION MANUAL
PAC HEAT RECOVERY WATER HEATER

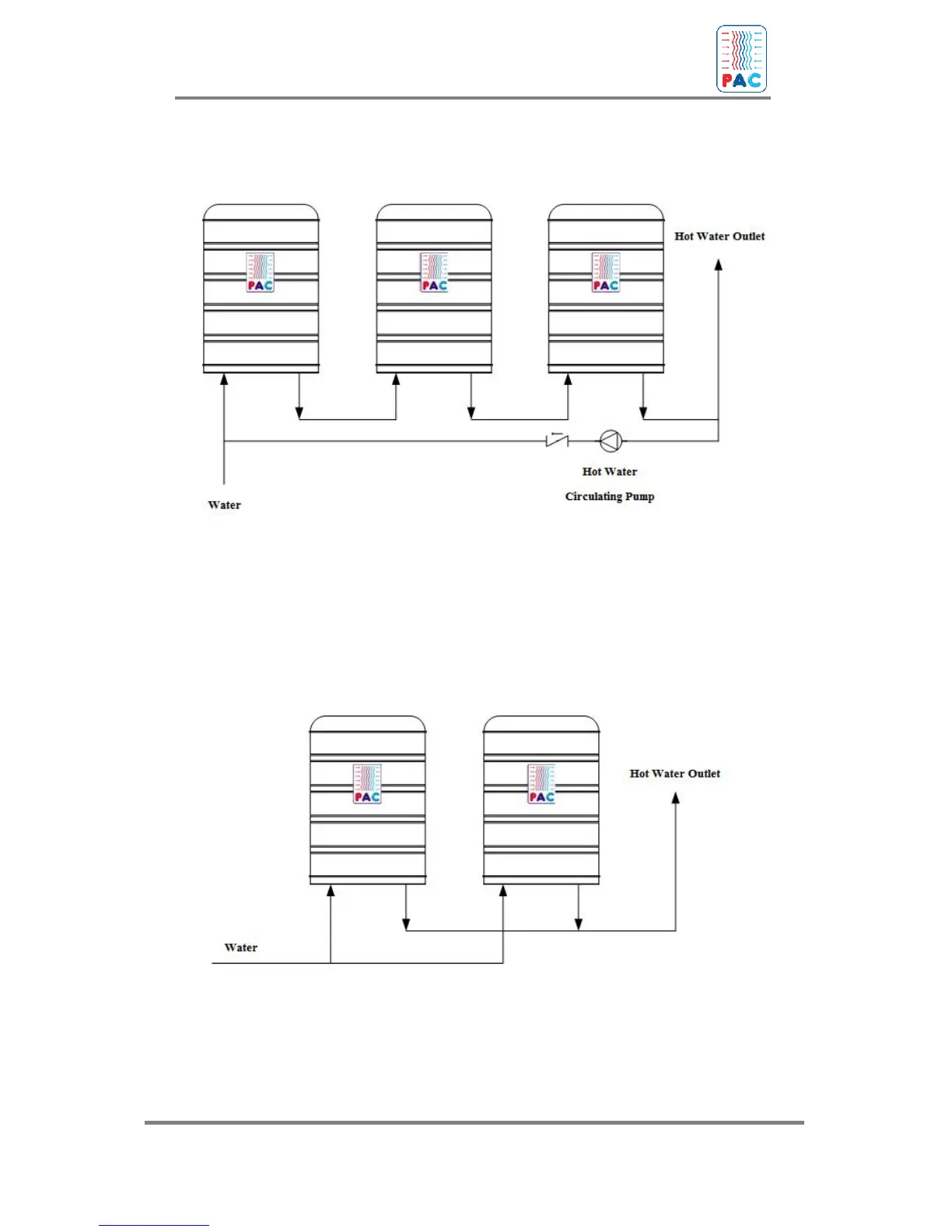

Figure 15 : Installing PAC Fre-Heater (through one circuit into another)
Figure 16 : Installing PAC Fre-Heater in parallel series
16
