Paccar TX-8 - Digital Display

Digital Display
Primary Gauges View
6 D
N
R

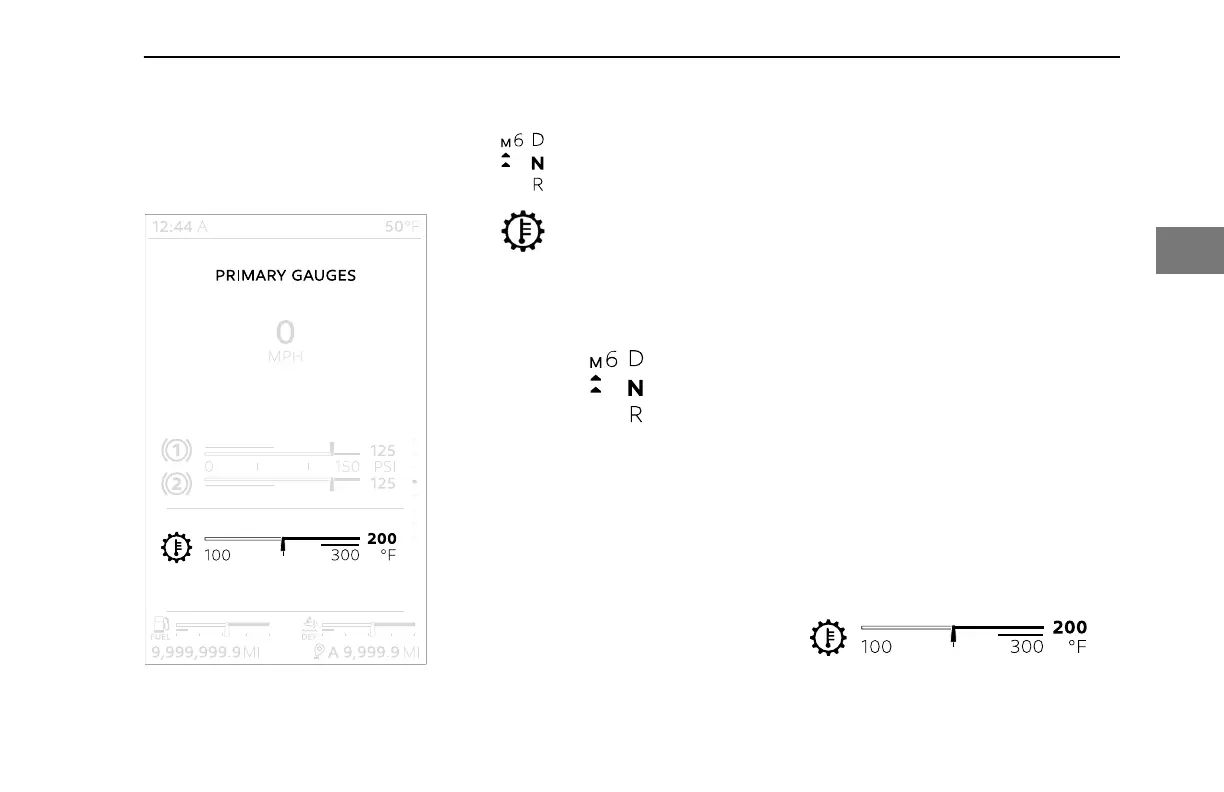

The digital display shows the following
indications related to the transmission:
Transmission Gear Display
Transmission Temperature
Transmission Gear Display
The Transmission Gear Display is located
on the Digital Display.
The following indications appear next to D
(Drive), when the feature or condition is
active:
1 – 8 Current Gear
AN Auto Neutral
L LOW Mode
M Manual Mode
– Shift Position Unknown
The following indications appear next to R
(Reverse), when the feature or condition is
active:
1 Multi-reverse Gear
– Shift Position Unknown
The following indications appear generally
in the Gear Display when the feature or
condition is active:
! ≡ Critical Error
Transmission Oil Temperature
Gauge
The Transmission Temperature Gauge
indicates the temperature of the oil in the
