MEGA-T300 Abrasive Cutter
3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com
Please read this instruction manual carefully and follow all installation, operating and safety guidelines.

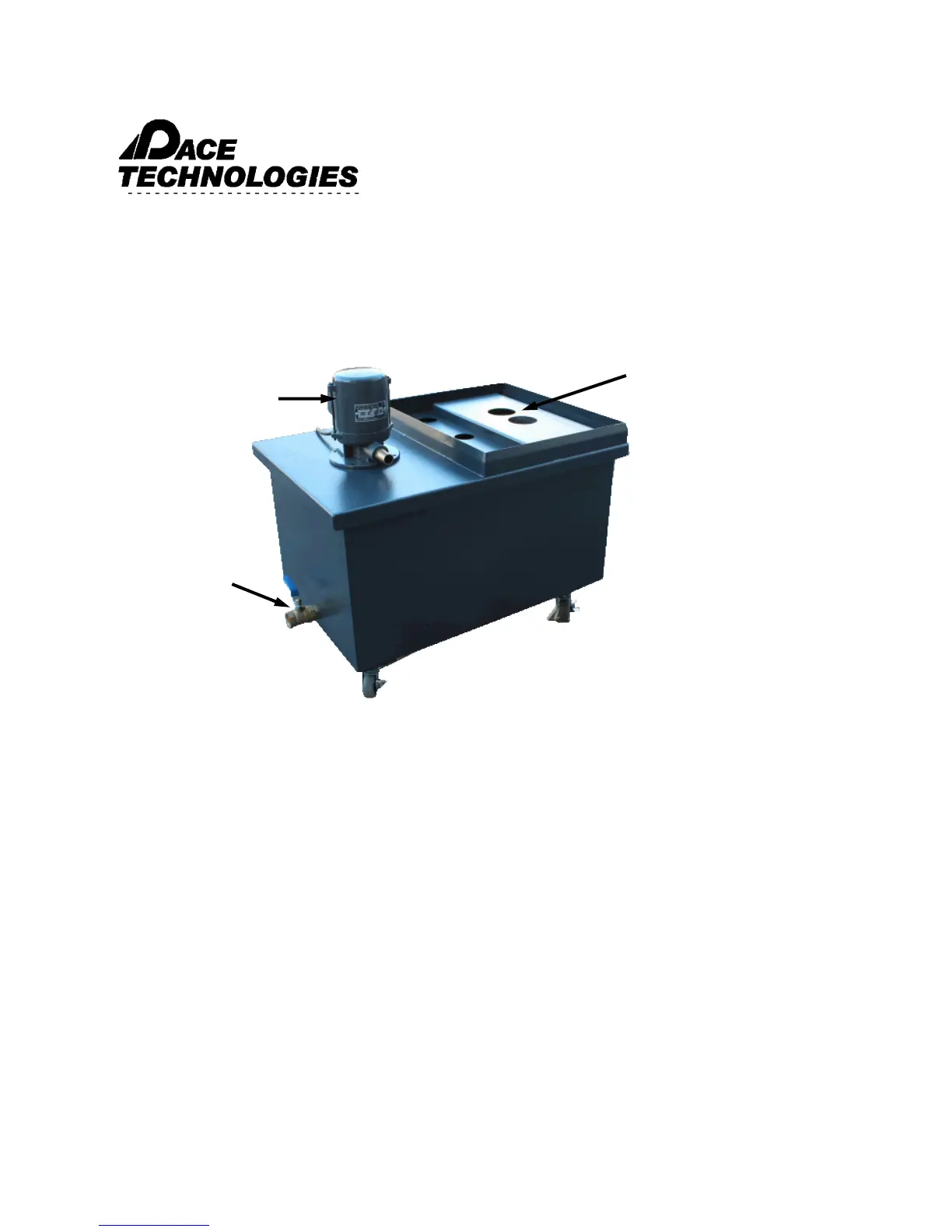

Recirculating tank connections
External coolant supply: Attach 3/4-inch tube between pump and cutter.
Drain: 1.5-inch (38 mm) tube.
Electrical connections: Connect six-foot electrical power cable to source.
Note: Inspect the operating voltage on the name plate.
Electrical connection for
external coolant supply:
Power for recirculation system comes from the MEGA-T300,
8
(Installation continued on next page)
Drain into
screen
Pump
Tank
drain
To Next Page
