ASSEMBLY INSTRUCTIONS
Installation Requirements
Your PaceMaster should be installed indoors on a flat, level surface near a 120 Volt outlet.. You must have a minimum of 2 feet of
clearance between the elliptical and any wall or obstruction.
TIP: If you are installing your PaceMaster on a carpeted surface, use a equipment mat or a scrap piece of carpet underneath the elliptical
to avoid soiling of the carpet. Deep pile carpet is not recommended.
Unpacking Your Elliptical
The PaceMaster elliptical is packed in 26 pieces:
• Refer to the Parts List on the next page.
Before assembling your elliptical, open the hardware package and verify that you have the following items:
• Refer to the Hardware Legend on page 7.
If any parts are missing, contact the authorized PaceMaster retailer where you purchased your PaceMaster elliptical.
Tools Required for Assembly
• 17 mm wrench (2)
•
6 mm hex wrench
• Phillips head screwdriver
Power Supply Connections
Your PaceMaster Silver XT comes with an external power supply. ONLY use the power supply that is provided with the product.
Depending on where you purchased your elliptical, the external power supply will have either a 2 or 3 prong plug. If it has a 3 prong plug, it
must be plugged into a 3 prong grounded outlet (see photo below) with a nominal rating of 120 VAC.

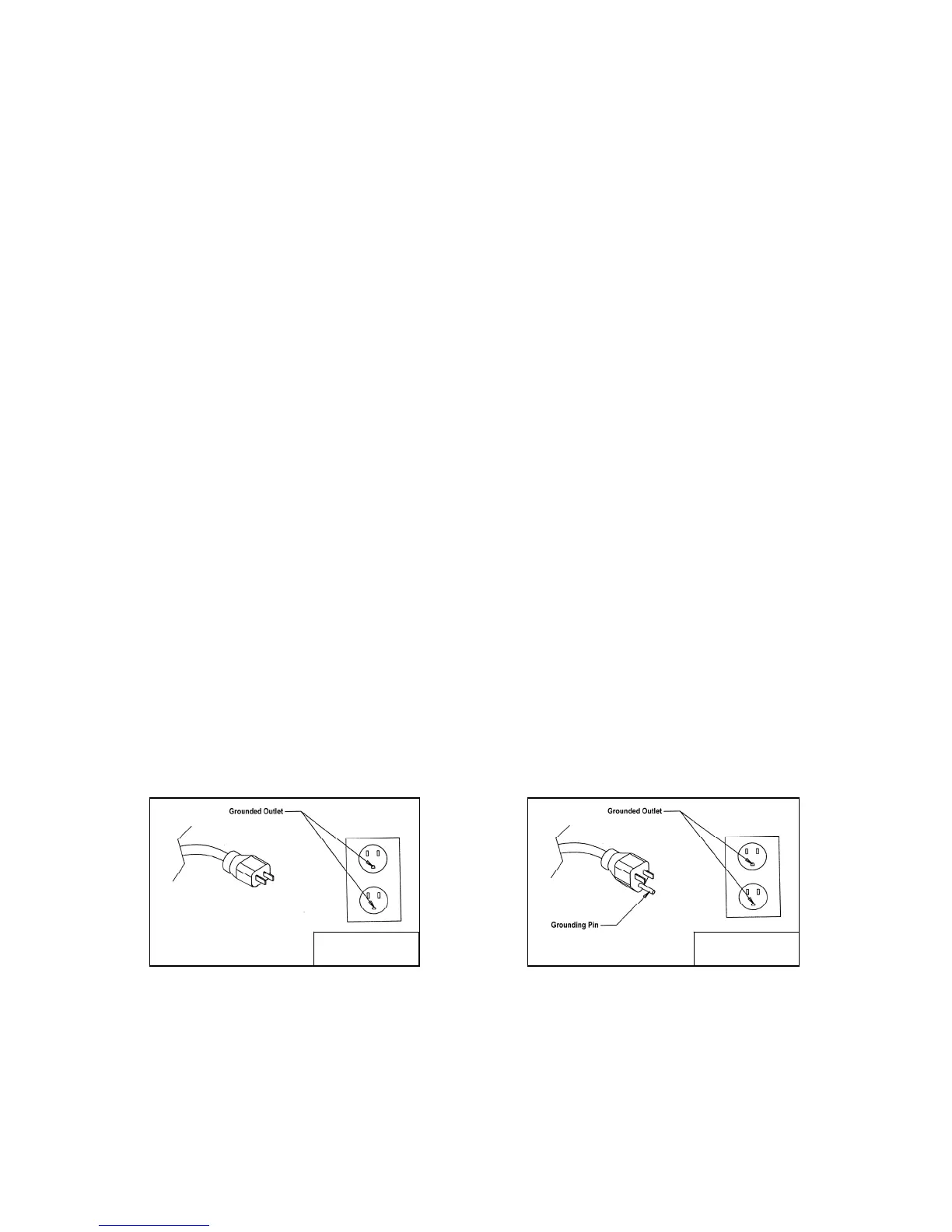

2 Prong plug 3 Prong plug
5
