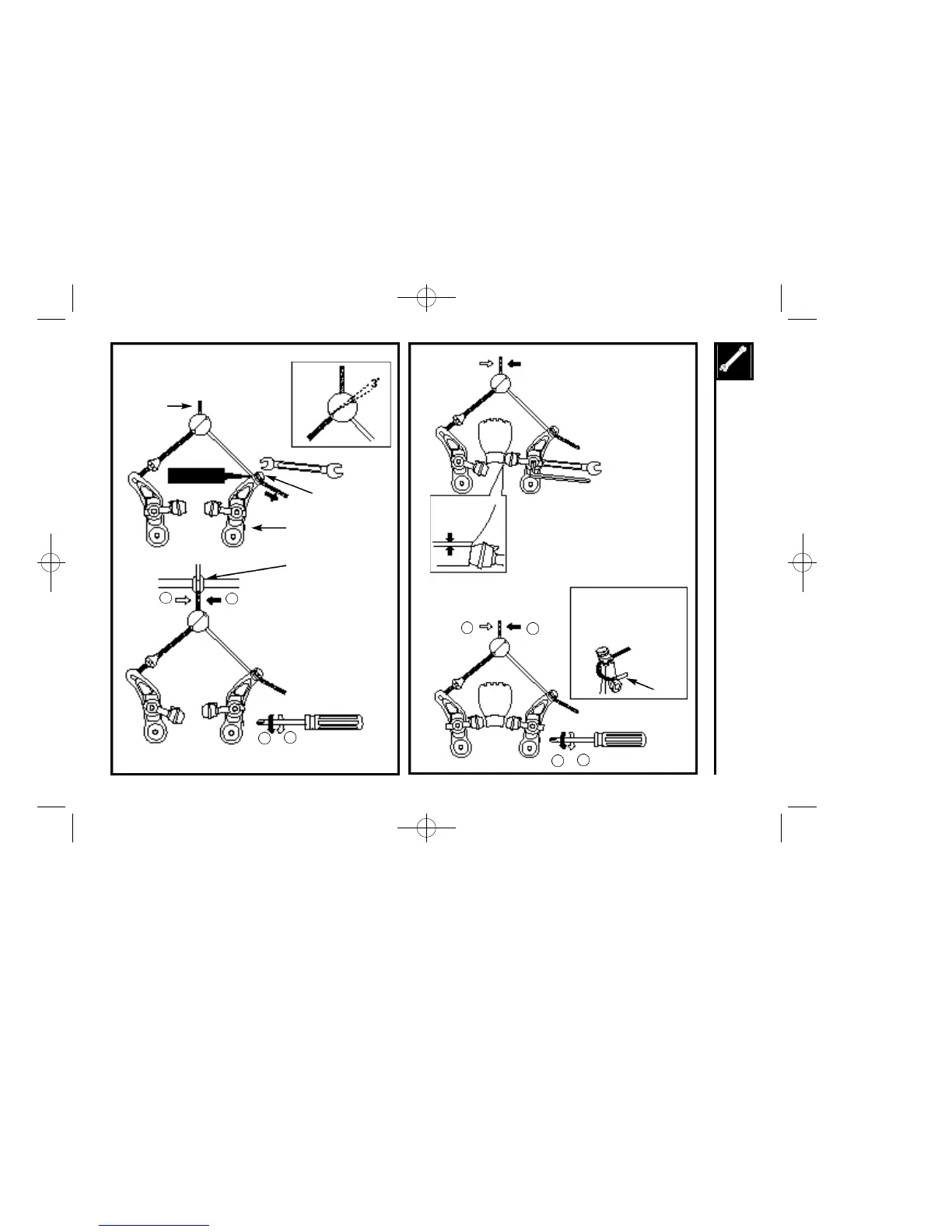

3. Temporarily tighten the cable so
that the link wire is at the position in
the illustration.
1
1
2
2
1
1
2
2
5. Secure one of the shoes at a time.
The adjustment of the shoe clearance is
not necessary at this time.
Shoe fixing nut tightening torque:
7.84 - 8.82 Nm(70 - 78 in. lbs.)
6. If balance adjustment is necessary,
adjust with the spring tension
adjustment screw.
1 mm
10 mm wrench
5 mm Allen key
Cable Anchor Bolt
To u c h i n g
End cap
Cut off any unnecessary
cable, attach an end cap,
and hook it onto the
notched part of the nut
which secures the shoe.
Cable Casing Holder
26
Link Wire
Spring tension
adjustment screw
4. Turn the spring tension
adjustment screw so that the link
wire comes to a position directly
below the cable casing holder.
