Panamax M4300 - Product Specifications; AC Power and LAN Specifications; Telephone, Satellite, and Cable TV Specs; Contacting Panamax

Panamax
1690 Corporate Circle
Petaluma, CA 94954
Phone - 707-283-5900 or 800-472-5555
Fax - 707-283-5901
Web - www.panamax.com
Customer Relations
7:30 AM – 4:30 PM, M-F
Email - custrelations@panamax.com
One telephone patch cord
Product warranty (see back panel)
Two coaxial cables
Telephone Circuit
Fuseless/Auto-resetting:........................................................................Yes
Clamping Level:..................................................................................260V
Capacitance:.........................................................................30pf (approx.)
Suppression Modes:...............................................Metallic & Longitudinal
Jacks:................................................................................................RJ-11
Integrated Line Splitter:.........................................................................Yes
Jacks
LINE:............................................................RJ-45 (RJ-11 compatible)
Wires Protected:.................................................2-Wire, Pins 4 & 5
EQUIP 1:........................................................RJ-45 (RJ-11 compatible)
Wires Protected:.................................................2-Wire, Pins 4 & 5
EQUIP 2:.......................................................................................RJ-11
Wires Protected:.................................................2-Wire, Pins 3 & 4
Satellite TV Circuit
Bidirectional:.........................................................................................Yes
Shielded:...............................................................................................Yes
Clamping Level:....................................................................................25V
Attenuation:.................................................< 1db from 950MHz -2.05GHz
< 2.4db @ 2.2GHz
Connections:..........................................................Female “F”, Gold Plated
Cable TV Circuit
Bidirectional:.........................................................................................Yes
Shielded:...............................................................................................Yes
Clamping Level:...................................................................................1.4V
Attenuation:.................................................................< 1db up to 950MHz
Connections:..........................................................Female “F”, Gold Plated
AC Power
Line Voltage:..............................................................................120V, 60Hz
Total Current Capacity:.........................................................................15 A
UL1449 Suppression Rating:..............................................................330V
Protection Modes:.................................................................L-N, L-G, N-G
Initial Clamping Level:.........................................................................200V
Energy Dissipation:..................................................................1650 Joules
Peak Impulse Current:............................................................52,000 Amps
Catastrophic Surge Circuit:....................................................................Yes
Thermal Fusing:.....................................................................................Yes
Over-voltage shutoff:.........................................................142 VAC ±5 VAC
Under-voltage shutoff:........................................................84 VAC ± 6 VAC
EMI/RFI Noise Filtration
Bank 1, High Current Outlet:................................49 db, 100 KHz – 2 MHz
Bank 1, Always ON Outlets:.................................61 db, 100 KHz – 2 MHz
Bank 2, Switched Outlets:....................................60 db, 100 KHz – 2 MHz
LAN Circuit
Clamping Level:..............................................................................8V ± 2V
Jacks:................................................................................................RJ-45
Wires Protected:...................................................4-Wires, Pins 1, 2, 3 & 6
M4300-EX Specifications
Contacting Panamax

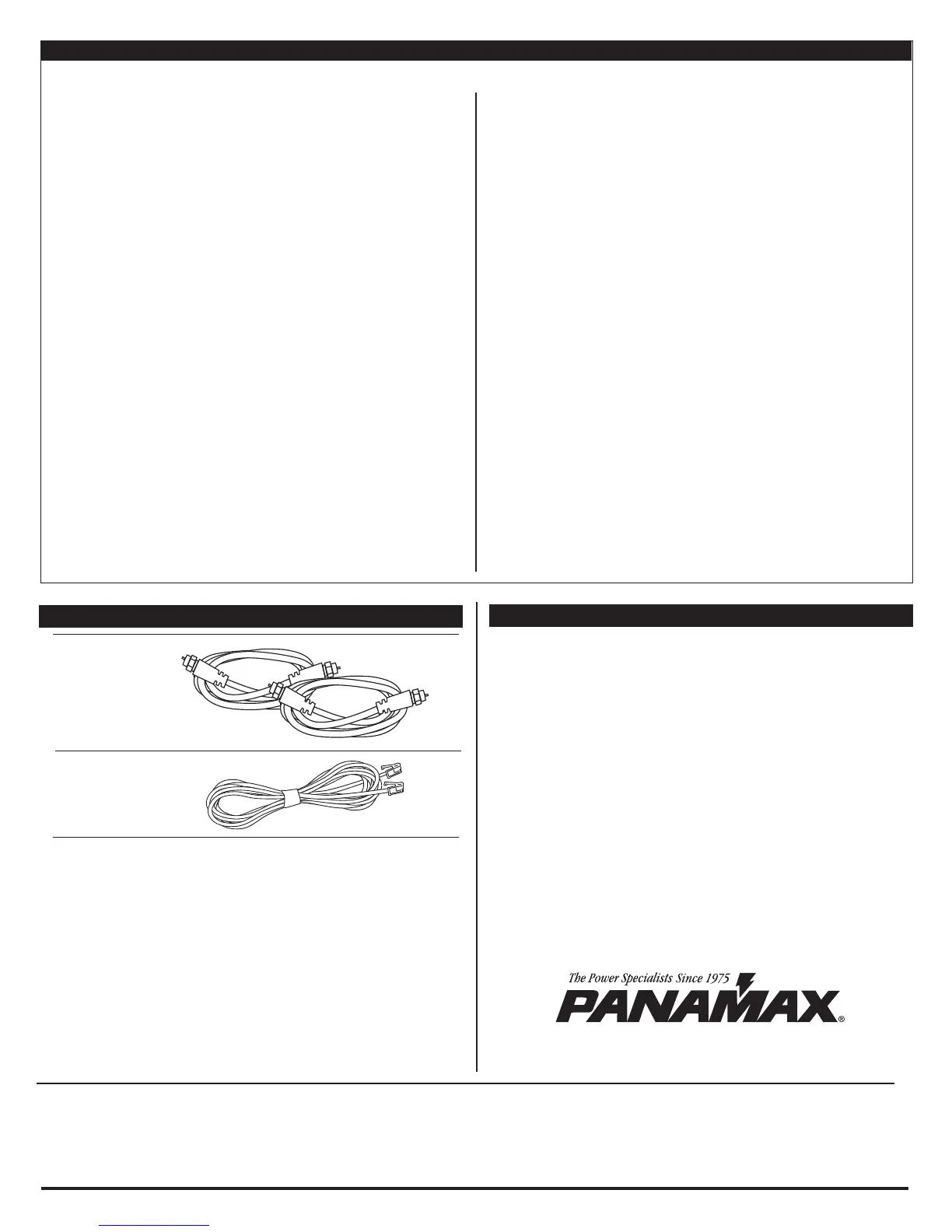

Contents
© 2005 Panamax. Panamax, MAX and the Panamax logo are registered US trademarks of Panamax. Protect or Disconnect and SignalPerfect are trademarks of Panamax.
SIDACtor is a registered US trademark of Teccor Electronics, Inc.
Specifications are subject to changes due to product upgrades and improvements.
