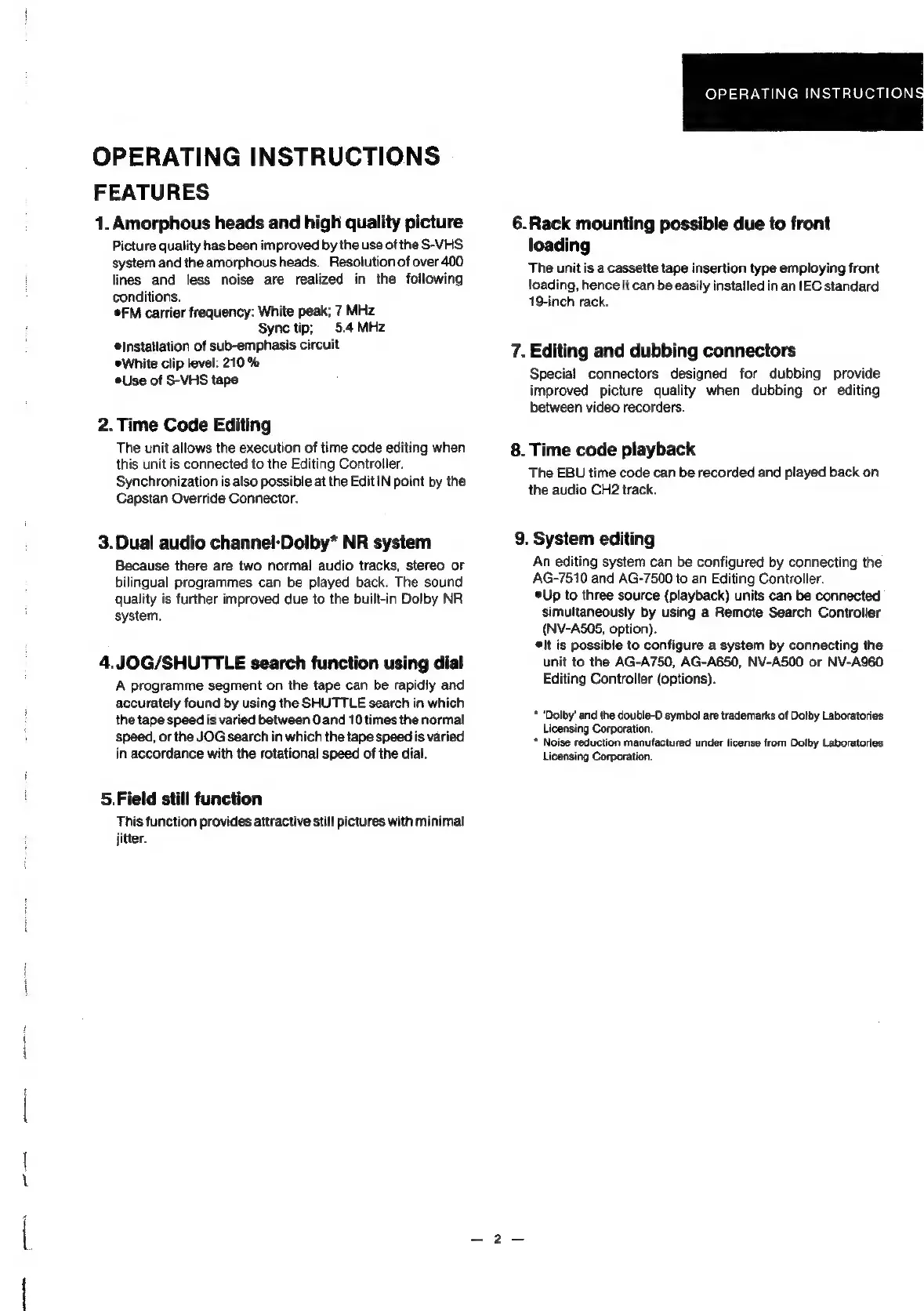

OPERATING INSTRUCTIONS
FEATURES
1. Amorphous heads and high quality picture
Picture quality has been improved by the use of the S-VHS
system and the amorphous heads. Resolution of over 400
lines and less noise are realized in the following
conditions.
FM carrier frequency: White peak; 7 MHz
Sync tip; 5.4 MHz
Installation of sub-emphasis circuit
White clip level: 210 %
Use of S-VHS tape
2. Time Code Editing
The unit allows the execution of time code editing when
this unit is connected to the Editing Controller.
Synchronization is also possible at the Edit IN point by the
Capstan Override Connector.
3. Dual audio channel-Dolby* NR system
Because there are two normal audio tracks, stereo or
bilingual programmes can be played back. The sound
quality is further improved due to the built-in Dolby NR
system,
4. JOG/SHUTTLE search function using dial
A programme segment on the tape can be rapidly and
accurately found by using the SHUTTLE search in which
the tape speed is varied between 0 and 10 times the normal
speed, or the JOG search in which the tape speed is varied
in accordance with the rotational speed of the dial.
5.Field still function
This function provides attractive still pictures with minimal
jitter.
OPERATING INSTRUCTIONS
6.Rack mounting possible due to front
loading
The unit is a cassette tape insertion type employing front
loading, hence it can be easily installed in an IEC standard
19-inch rack.
7. Editing and dubbing connectors
Special connectors designed for dubbing provide
improved picture quality when dubbing or editing
between video recorders.
8. Time code playback
The EBU time code can be recorded and played back on
the audio CH2 track.
9. System editing
An editing system can be configured by connecting the
AG-7510 and AG-7500 to an Editing Controller.
*Up to three source (playback) units can be connected
simultaneously by using a Remote Search Controller
(NV-A505, option).
elt is possible to configure a system by connecting the
unit to the AG-A750, AG-A650, NV-A500 or NV-A960
Editing Controller (options).
* ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
* Noise reduction manufactured under license from Dolby Laboratories
Licensing Corporation.
