160 Aquarea air-to-water heat pumps - Planning and installation manual - 02/2022
Installation
6
All in One units

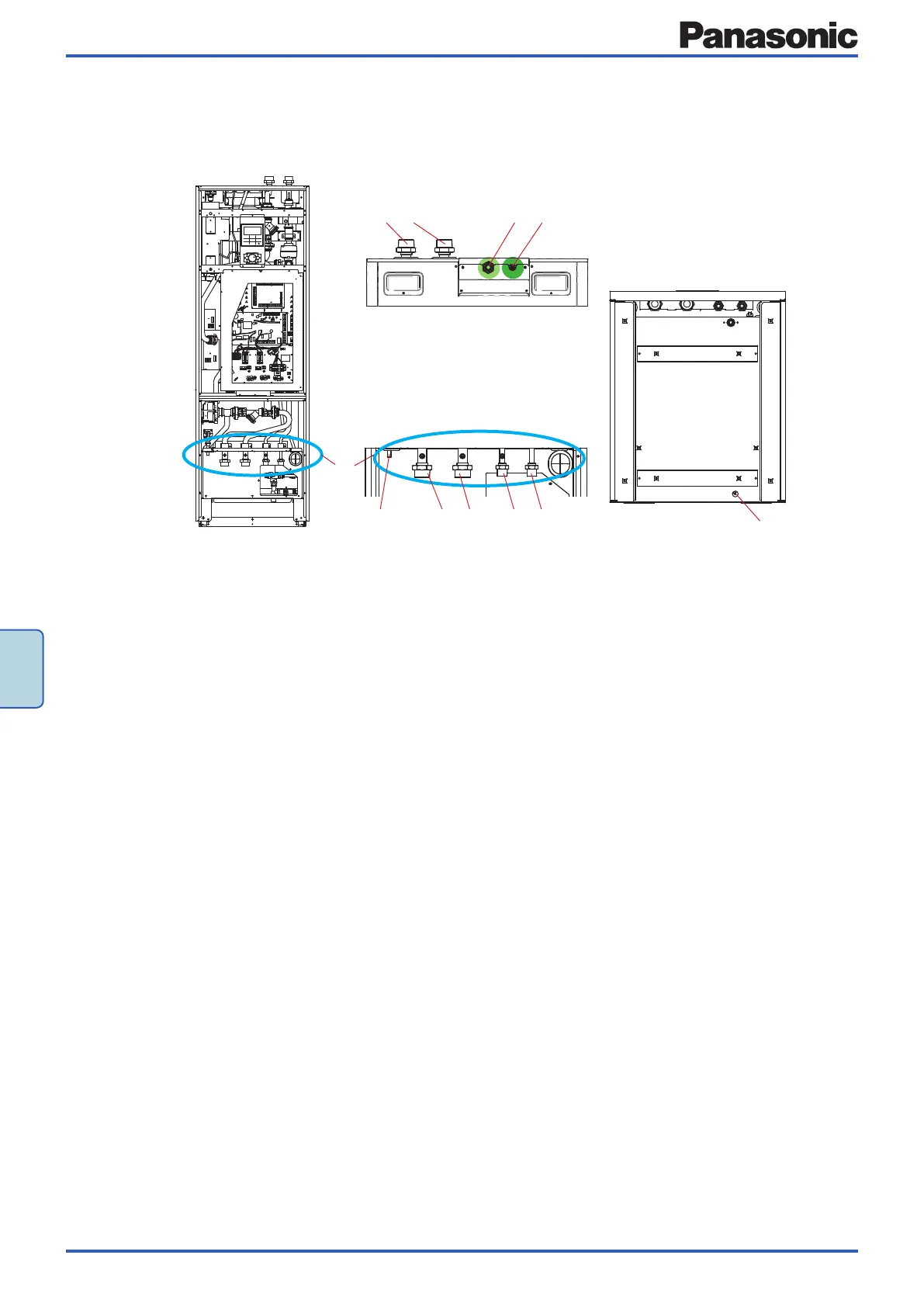

All in One unit | J generation | Standard conguration (WH-ADC0309J3E5 for 1 heating zone)
or Two-zone conguration (WH-ADC0309J3E5B for 2 heating zones)
C
10
B
B
8755 9
A
431 2
A Detail view of upper section (seen from rear side)
1 Zone 2 Supply water outlet (to space heating),
onlyintwo-zoneconguration
2 Zone 2 Return water inlet (from space heating),
onlyintwo-zoneconguration
3 Refrigerant gas line
4 Refrigerant liquid line
B Detail view of piping connections
5 Safety valve drainage tap
6 Zone 1 Supply water outlet (to space heating)
7 Zone 1 Return water inlet (from space heating)
8 Supply water outlet (to hot water tank)
9 Fresh water inlet
C Bottom view
10 Condensate drain hole
