Installation Instructions
Removing the camera
1. Turn off the circuit breaker and power.
2. Disconnect the cables.
Disconnect the DC cable, LAN cable, and HDMI cable, etc.
3. Remove the main unit mounting screw used to secure the unit and mount bracket.

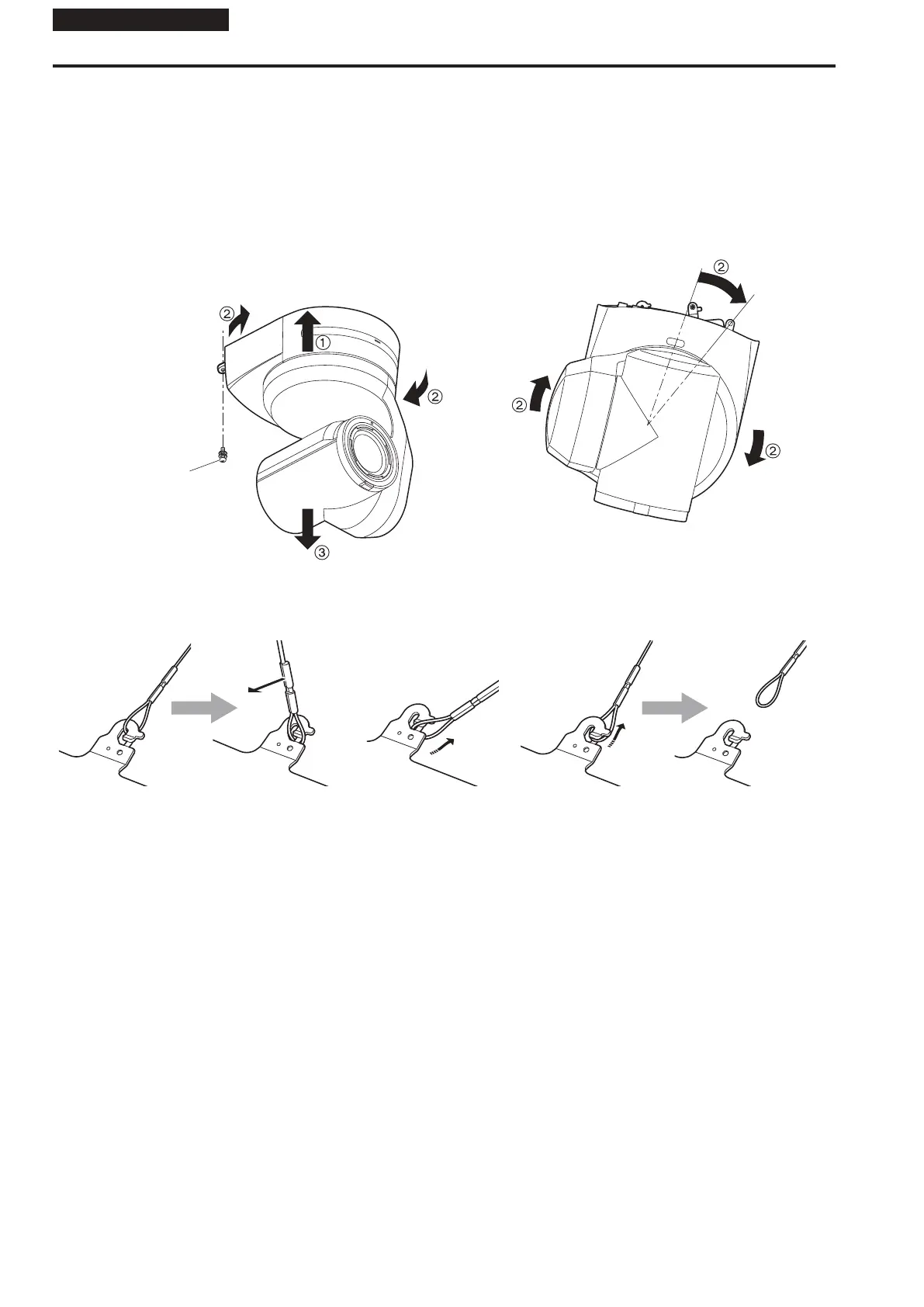

4. Push the unit (A). Turn it approximately 20 degrees away from the installed position (B), and remove it (C).
Main unit mounting
screw (M3 screw) (with
flat washer, spring
washer)
Approx. 20°
<NOTE>
• Do not do this work while holding the camera head since doing so may result in malfunctioning of the unit.
5. Disengage the drop-prevention wire from the mount bracket.
A Pull the dropprevention
wire in the direction
shown by the arrow
above.
B Twist the wire, and
remove the wire loop
through the opening in
the hook.
C Pull the wire in the direction
shown by the arrow above, and
simply pull it out.
14
