Radio

YFM284C506CA PTW1205-2 Printed in China (Y)

Matsushita Electric Industrial Co., Ltd.

Web Site: http://www.panasonic.co.jp/global/

Sales and Support Information

For UK and Ireland customers only.

Customer Care Centre

¡ For customers within the UK: 08705 357357

¡ For customers within the Republic of Ireland: 01 289 8333

¡ Visit our website for product information

¡ E-mail: customer.care@panasonic.co.uk

Direct Sales at Panasonic UK

¡ Order accessories and consumable items for your product

with ease and confidence by phoning our Customer Care

Centre Monday - Thursday 9:00am - 5:30pm, Friday

9:30am - 5:30pm. (Excluding public holidays).

¡ Or go on line through our Internet Accessory ordering

application at www.panasonic.co.uk.

¡ Most major credit and debit cards accepted.

¡ All enquiries, transactions and distribution facilities are

provided directly by Panasonic UK Ltd.

¡ It couldn't be simpler!

¡ Also available through our Internet is direct shopping for a

wide range of finished products, so take a browse on our

website for further details.

Accessories

Operating Instructions

(English : YFM284C506CA)

(Deutsch : YFM284C507CA)

(Français : YFM284C508CA)

(Nederlands : YFM284C509CA)

(Svenska : YFM284C510CA)

(Italiano : YFM284C511CA)

(Español : YFM284C512CA)

(Dansk : YFM284C513CA)

Q'ty: 1 set

Installation Instructions

(English, Deutsch, Français,

Nederlands : YFM284C518CA)

(Svenska, Italiano, Español,

Dansk : YFM284C519CA)

Q'ty: 1 set

Warranty Card

Q'ty: 1

Installation kit (ZZBISC1021N-J)

Lock Cancel Plate

Q'ty: 2

Mounting Bolt

Q'ty: 1

Mounting Collar

(FX0214C384ZA)

Q'ty: 1

Trim Plate

(YFC054C079YA)

Q'ty: 1

Power Connector

(YEAJ02874)

Q'ty: 1

Removable Face Plate

Case

(YFC054C061ZB)

Q'ty: 1

Notes:

¡ The number in parentheses underneath

each accessory part name is the part

number for maintenance and service.

¡ Accessories and their part numbers are

subject to modification without prior

notice due to improvements.

¡ Mounting Collar and Trim Plate are

mounted on the main unit at shipment.

Remote Control Unit

(Option)

¡This instruction manual explains

operations for use with the buttons

on the main unit. (Different opera-

tions excluded)

Note: The optional remote control unit

is available from your local dealer.

(CA-RC80N)

MP3 CD Player/Receiver

Model: CQ-C1323NW/C1313NW/C1303NW

CD Player/Receiver

Model:

CQ-C1123NW/C1113NW/C1103NW

Operating Instructions

¡Please read these instructions carefully before using this product and keep this manual for future reference.

(CQ-C1323NW)

TEXT

English

Caution

Observe the following cautions when using this

unit.

❑

Keep the sound volume at an appropriate level.

Keep the volume level low enough to be aware of road and traffic

conditions while driving.

❑

This unit is designed for use exclusively in automobiles.

❑

Do not operate the unit for a prolonged period with the

engine turned off.

Operating the audio system for a long period of time with the

engine turned off will drain the battery.

❑

Do not expose the unit to direct sunlight or excessive

heat.

Otherwise these will raise the interior temperature of the unit, and

it may lead to smoke, fire, or other damage to the unit.

❑

Do not use the product where it is exposed to water,

moisture, or dust.

Exposure of the unit to water, moisture, or dust may lead to

smoke, fire, or other damage to the unit. Make especially sure that

the unit does not get wet in car washes or on rainy days.

Observe the following cautions when installing.

❑

Refer wiring and installation to qualified service personnel.

Installation of this unit requires special skills and experience. For

maximum safety, have it installed by your dealer. Panasonic is not

liable for any problems resulting from your own installation of the

unit.

❑

Follow the instructions to install and wire the product.

Not following the instructions to properly install and wire the prod-

uct could cause an accident or fire.

❑

Take care not to damage the leads.

When wiring, take care not to damage the leads. Prevent them

from getting caught in the vehicle chassis, screws, and moving

parts such as seat rails. Do not scratch, pull, bend or twist the

leads. Do not run them near heat sources or place heavy objects

on them. If leads must be run over sharp metal edges, protect the

leads by winding them with vinyl tape or similar protection.

❑

Use the designated parts and tools for installation.

Use the supplied or designated parts and appropriate tools to

install the product. The use of parts other than those supplied or

designated may result in internal damage to the unit. Faulty instal-

lation may lead to an accident, a malfunction or fire.

❑

Do not block the air vent or the cooling plate of the unit.

Blocking these parts will cause the interior of the unit to overheat

and will result in fire or other damage.

❑

Do not install the product where it is exposed to strong

vibrations or is unstable.

Avoid slanted or strongly curved surfaces for installation. If the

installation is not stable, the unit may fall down while driving and

this can lead to an accident or injury.

❑

Installation Angle

The product should be installed in a horizontal position with the

front end up at a convenient angle, but not more than 30˚.

The user should bear in mind that in some areas there may be

restrictions on how and where this unit must be installed. Consult

your dealer for further details.

❑

Wear gloves for safety. Make sure that wiring is complet-

ed before installation.

❑

To prevent damage to the unit, do not connect the power

connector until the whole wiring is completed.

❑

Do not connect more than one speaker to one set of

speaker leads. (except for connecting to a tweeter)

Observe the following cautions when using Front

Panel AUX.

❑

Set the volume to low enough before the AUX connection

is completed.

Failure to observe this may cause loud noise and, conse-

quently, damage your speakers and your hearing.

❑

Do not connect this AUX directly with a speaker/head-

phone output. Failure to observe this may distort sound

and break the internal amplifier.

CQ-C1303NWCQ-C1313NWCQ-C1323NW

Safety Information

Warning

Observe the following warnings when using this

unit.

❑

The driver should neither watch the display nor operate

the system while driving.

Watching the display or operating the system will distract the driv-

er from looking ahead of the vehicle and can cause accidents.

Always stop the vehicle in a safe location and use the parking

brake before watching the display or operating the system.

❑

Use the proper power supply.

This product is designed for operation with a negative grounded

12 V DC battery system. Never operate this product with other bat-

tery systems, especially a 24 V DC battery system.

❑

Protect the Deck Mechanism.

Do not insert any foreign objects into the slot of this unit.

❑

Do not disassemble or modify the unit.

Do not disassemble, modify the unit or attempt to repair the prod-

uct yourself. If the product needs to be repaired, consult your

dealer or an authorized Panasonic Service Centre.

❑

Do not use the unit when it is out of order.

If the unit is out of order (no power, no sound) or in an abnormal

state (has foreign objects in it, is exposed to water, is smoking, or

smells), turn it off immediately and consult your dealer.

❑

Refer fuse replacement to qualified service personnel.

When the fuse burns out, eliminate the cause and have it replaced

with the fuse prescribed for this unit by a qualified service engi-

neer. Incorrect replacement of the fuse may lead to smoke, fire,

and damage to the product.

Observe the following warnings when installing.

❑

Disconnect the lead from the negative (–) battery termi-

nal before installation.

Wiring and installation with the negative (–) battery terminal con-

nected may cause electrical shock and injury due to a short circuit.

Some cars equipped with the electrical safety system have specific

procedures of battery terminal disconnection.

FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE

UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY SYSTEM

RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL

INJURY OR DEATH.

❑

Never use safety-related components for installation,

grounding, and other such functions.

Do not use safety-related vehicle components (fuel tank, brake,

suspension, steering wheel, pedals, airbag, etc.) for wiring or fix-

ing the product or its accessories.

❑

Installing the product on the air bag cover or in a location

where it interferes with airbag operation is prohibited.

❑

Check for piping, gasoline tank, electric wiring, and other

items before installing the product.

If you need to open a hole in the vehicle chassis to attach or wire

the product, first check where the wire harness, gasoline tank, and

electric wiring are located. Then open the hole from outside if pos-

sible.

❑

Never install the product in a location where it interferes

with your field of vision.

❑

Never have the power cord branched to supply other

equipment with power.

❑

After installation and wiring, you should check the nor-

mal operation of other electrical equipment.

The continuation of their using in abnormal conditions may cause

fire, electrical shock or a traffic accident.

❑

In the case of installation to an airbag-equipping car,

confirm warnings and cautions of the vehicle manufactur-

er before installation.

❑

Make sure the leads do not interfere with driving or get-

ting in and out of the vehicle.

❑

Insulate all exposed wires to prevent short circuiting.

This pictograph intends to alert you to the presence of

important operating instructions and installation

instructions. Failure to heed the instructions may

result in severe injury or death.

■

Read the operating instructions for the unit and all other compo-

nents of your car audio system carefully before using the system.

They contain instructions about how to use the system in a safe and

effective manner. Panasonic assumes no responsibility for any prob-

lems resulting from failure to observe the instructions given in this

manual.

■

This manual uses pictographs to show you how to use the product

safely and to alert you to potential dangers resulting from improper

connections and operations. The meanings of the pictographs are

explained below. It is important that you fully understand the mean-

ings of the pictographs in order to use this manual and the system

properly.

Warning

This pictograph intends to alert you to the presence of

important operating instructions and installation instruc-

tions. Failure to heed the instructions may result in

injury or material damage.

Caution

Before Reading These Instructions

Panasonic welcomes you to our constantly growing family of electronic products owners.

We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and

assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of

enjoyment, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family.

Differences

among 6 models

This operating instructions is for 6 models CQ-C1323NW/C1313NW/C1303NW and CQ-C1123NW/C1113NW/C1103NW. All

illustrations throughout this manual represent model CQ-C1323NW unless otherwise specified. The following table describes the

differences among 6 models.

Laser Product

Label Indications and Their Locations

CAUTION

LASER RADIATION WHEN OPEN. DO NOT STARE

INTO BEAM.

Caution

This product utilizes a laser.

Use of controls or adjustments or performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

Do not take apart this unit or attempt to

make any changes yourself.

This unit is a very intricate device that uses a laser

pickup to retrieve information from the surface of

compact discs. The laser is carefully shielded so that

its rays remain inside the cabinet.

Therefore, never try to disassemble the player or alter

any of its parts since you may be exposed to laser

rays and dangerous voltages.

Caution Label

Deck Ass’y (in the unit,

upper side)

Preparation

First Time Power OnClock Setting

CLASS 1 LASER PRODUCT

Notes on Discs

How to hold a disc

¡ Do not touch the underside of a disc.

¡ Do not scratch on a disc.

¡ Do not bend a disc.

¡ When not in use, keep a disc in a case.

Do not use irregularly shaped discs.

Do not leave discs in the following places:

¡ Direct sunlight

¡ Near car heaters

¡ Dirty, dusty and damp areas

¡ Seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the centre outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label with a ballpoint pen or

other hard-point pens.

Printed side

Do not use irregularly

shaped discs.

If you use commercial CDs, they must have the label

shown at right.

Some copy-protected music CDs are not playable.

¡ You may have trouble playing back some CD-R/RW discs

recorded using CD recorders (CD-R/RW drives), either due

to their recording characteristics or dirt, fingerprints,

scratches, etc. on the disc surface.

¡ CD-R/RW discs are less resistant to high temperatures and

high humidity than ordinary music CDs. Leaving them

inside a car for extended periods may damage and make

playback impossible.

¡ Some CD-R/RWs cannot be played back successfully due

to incompatibility among writing software, a CD recorder

(CD-R/RW drive) and the discs.

¡ This player cannot play the CD-R/RW discs if the session is

not closed.

¡ This player cannot play the CD-R/RW discs which contain

other than CD-DA or MP3 data.

¡ Be sure to observe the instructions of the CD-R/RW disc

for handling it.

Recording MP3 files on a CD-media

¡ You are recommended to minimize the chances of mak-

ing a disc that contains both CD-DA files and MP3 files.

¡ If CD-DA files are on the same disc as MP3 files, the

songs may not play in the intended order, or some songs

may not play at all.

¡ Do not record files other than MP3 files and unnecessary

folder on a disc.

¡ The name of MP3 file should be added by rules as shown in

the following descriptions and also comply with the rules of

each file system.

¡ You may encounter trouble in playing MP3 files or display-

ing the information of MP3 files recorded with certain writ-

ing software or CD recorders.

¡ The file extension “.mp3” should be assigned to each file

depending on the file format.

¡ This unit does not have the play list function.

¡ Although Multi-session recording is supported, the use of

Disc-at-Once is recommended.

Supported file systems

ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,

Romeo

Note: Apple HFS, UDF 1.50, MIX mode CD, CD Extra is not

supported.

Compression formats

(Recommendation: “Points to remember when making

MP3 files” on the right.)

Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)

Notes on

CD-Rs/RWs

Notes on MP3

Note: MP3 encoding and writing software is not supplied

with this unit.

Points to remember when making MP3 files

MP3

¡ High bit rate and high sampling frequency are recommend-

ed for high quality sounds.

¡ Selecting VBR (Variable Bit Rate) is not recommended

because playing time is not displayed properly and sound

may be skipped.

¡ The playback sound quality differs depending on the encod-

ing circumstances. For details, refer to the user manual of

your own encoding software and writing software.

¡ It is recommended to set the bit rate to “128 kbps or more”

and “fixed”.

Display Information

Displayed items

Displayable characters

¡ Name files and folders in accordance with the standard of

each file system. Refer to the instructions of writing soft-

ware for details.

¡ ASCII character set and special characters in each language

can be displayed.

Notes:

¡ With some software in which MP3 format files have been

encoded, the character information may not be displayed

properly.

¡ Undisplayable characters and symbols will be converted

into an asterisk ( ).

Folder selection order/file playback order

Maximum number of files/folders

¡ Maximum number of files: 999

¡ Maximum number of files in one folder: 255

¡ Maximum depth of trees: 8

¡ Maximum number of folders: 255 (Root folder is included.)

Notes:

¡ This unit counts the number of folders irrespective of the

presence or absence of MP3 file.

¡ If the selected folder does not contain any MP3 files, the

nearest MP3 files in the order of playback will be played.

¡ Playback order may be different from other MP3 players

even if the same disc is used.

¡ “ROOT” appears when displaying the root folder name.

It is prohibited by copyright laws to copy, distribute and deliv-

er copyrighted materials such as music without the approval

of copyright holder except enjoying yourself personally.

No warranty

Above description complies with our investigations as of

September 2005. It has no warranty for reproducibility and

displayability of MP3.

Root Folder

(Root Directory)

Folder Selection

File Selection

Tree 1 Tree 2 Tree 3 Tree 4 Tree 8

(Max.)

–In the order

Caution

¡ Never assign the “.mp3” file name exten-

sion to a file that is not in the MP3 format.

This may not only produce noise from the

speaker damage, but also damage your

hearing.

¡ CD-TEXT

Disc title

Track title

¡ MP3

Folder name

File name

¡ MP3 (ID3 tag)

Album name

Title name/Artist name

Notes on MP3

¡ MPEG 1 audio layer 3

Bit rate: 32 k-320 kbps

VBR: Yes

Sampling frequency:

32, 44.1, 48 kHz

¡ MPEG 2 audio layer 3

Bit rate: 8 k-160 kbps

VBR: Yes

Sampling frequency:

16, 22.05, 24 kHz

Specifications

Notes:

¡ Specifications and design are subject to modification without notice due to improvements.

¡ Some figures and illustrations in this manual may be different from your product.

General

Sampling frequency 8 times oversampling

DA converter 1 bit DAC System

Pick-up type Astigma 3 – beam

Light source Semiconductor laser

Wave length 790 nm

Frequency response 20 Hz – 20 kHz (±1 dB)

Signal to noise ratio 96 dB

Total harmonic distortion

0.01 % (1 kHz)

Wow and flutter Below measurable limits

Channel separation 75 dB

Frequency Range 87.5 MHz – 108 MHz

Usable Sensitivity 6 dB/µV (S/N 30 dB)

Stereo Separation 35 dB (at 1 kHz)

AM (MW)

Frequency Range 531 kHz – 1 602 kHz

Usable Sensitivity 28 dB/µV (S/N 20 dB)

AM (LW)

Frequency Range 153 kHz – 279 kHz

Usable Sensitivity 32 dB/µV (S/N 20 dB)

Disc Player

Maintenance

Your product is designed and manufactured to ensure the minimum of maintenance. Use a dry, soft cloth for routine

exterior cleaning. Never use benzine, thinner, or other solvents.

Cleaning the

Unit

Fuse

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the unit totally inoperable.

Removing

Turn off the power.

Press []. The face plate will open.

Pull it out toward you.

Put the face plate in the case.

Mounting

Slide the left side of the face plate in place.

Press the right end of face plate until a

“click” is heard.

Caution

¡ This face plate is not waterproof. Do not expose it to

water or excessive moisture.

¡ Do not remove the face plate while driving your car.

¡ Do not place the face plate on the dashboard or nearby

areas where the temperature rises high.

¡ Do not touch the contacts on the face plate and the main

unit, since this may result in poor electrical contact.

¡ If dirt or other foreign substances get on the contacts,

wipe them off with a clean and dry cloth.

Face Plate Removing/Mounting

(Anti-Theft System)

If the replaced fuse fails, contact your nearest authorized Panasonic Service Centre.

Warning

¡ Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit direct-

ly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest authorized

Panasonic Service Centre.

CQ-1323/1313/1303NW 01-Eng-1 YFM284C506CA

Features

Models

CQ-C1323NW CQ-C1313NW CQ-C1303NW

Pre-Out Connector 1(Rear) 1(Rear) 1(Rear)

Remote Control/Unit Option Option Option

AUX-Input Yes Yes Yes

MP3 Reproduction Yes Yes Yes

Display colour Blue Black Black

Key illumination colour Red Red Green

Features

Models

CQ-C1123NW CQ-C1113NW CQ-C1103NW

Pre-Out Connector No No No

Remote Control/Unit Not available Not available Not available

AUX-Input No No No

MP3 Reproduction No No No

Display colour Blue Black Black

Key illumination colour Red Red Green

[PWR] (Power)

toggles power on/off.

[MODE]

selects a mode (sour

ce).

MUTEMUTE

PWRPWR

MODEMODE

VOLVOL

CAR AUDIO

MUTE

PWR

MODE

BAND

BANDBAND

VOL

TUNE

TRACK

POWER

[BAND]

selects a band in the radio

source, toggles pause/play

in the player source, and

executes APM in the radio

source. (Hold down it for

more than 2 seconds.)

[MUTE]

toggles mute on/off.

[VOL}] [VOL{]

adjust the volume.

[TUNE]][TUNE[]

down/up the frequency. (Hold down it for

more than 2 seconds for seek tuning.)

[TRACK s ] [TRACK d ]

skip to the previous/next track in the

player mode.

Hold down it for fast reverse/fast for-

ward.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not

be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be

accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local

retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human

health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further

details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Power supply DC 12 V (11 – 16 V), test voltage 14.4 V, negative ground

Current consumption Less than 2.2 A (CD mode; 0.5 W x 4 channels)

Tone adjustment range

Bass: ±12 dB at 100 Hz, Treble: ±12 dB at 10 kHz

Dimensions (W x H x D)

178 x 50 x 155 mm

Weight 1.3 kg

Maximum power output

50 W x 4 channels (at 1 kHz), volume control maximum

22 W x 4 (DIN 45 324, at 4 Ω)

45 W x 4 channels (at 1 kHz), volume control maximum

20 W x 4 (DIN 45 324, at 4 Ω)

Speaker impedance 4 – 8 Ω

Pre-amp output voltage

2.5 V (CD mode, 1 kHz, 0 dB)

Pre-amp output impedance

200 Ω

Front AUX input

Input impedance 10 kΩ

Allowable external input

2.0 V

Connector 3.5 mm φ stereo mini-pin

CQ-C1123NW CQ-C1113NW CQ-C1103NW

CQ-C1323NW CQ-C1313NW CQ-C1303NW

The 24-hour system is used for the clock.

Notes:

¡ Adjust the clock when “NO CT” appears on the dis-

play.

¡ When a broadcast of FM Radio Data System is

received, the clock is adjusted automatically by the

Clock Time service.

¡ Hold down []] or [[] to change numbers rapidly.

Select the radio AM mode. (a “Radio

(AM [LW/MW]/FM )”)

Press [DISP].

(clock display)

Hold down [DISP] for more than 2 sec-

onds.

Hour blinks

Adjust the hour.

Hour entered

[[]: sets the hour ahead.

[]]: sets the hour back.

Press [DISP].

Minute blinks

Adjust the minute.

Minute entered

[[]: sets the minute ahead.

[]]: sets the minute back.

Press [DISP].

Completed

(Only for

CQ-C1323NW/

C1313NW/

C1303NW)

(Only for

CQ-C1323NW/

C1313NW/

C1303NW)

TEXT

(Only for

CQ-C1323NW/

C1313NW/

C1303NW)

[]

CQ-C1323NW CQ-C1313NW CQ-C1303NW

Set your car's ignition switch to the ACC

or ON position.

Press [SRC] (PWR: Power).

ACC

CQ-C1323NW CQ-C1313NW CQ-C1303NW

Do not attach any seals

or labels to your discs.

CQ-C1323NW CQ-C1313NW CQ-C1303NW

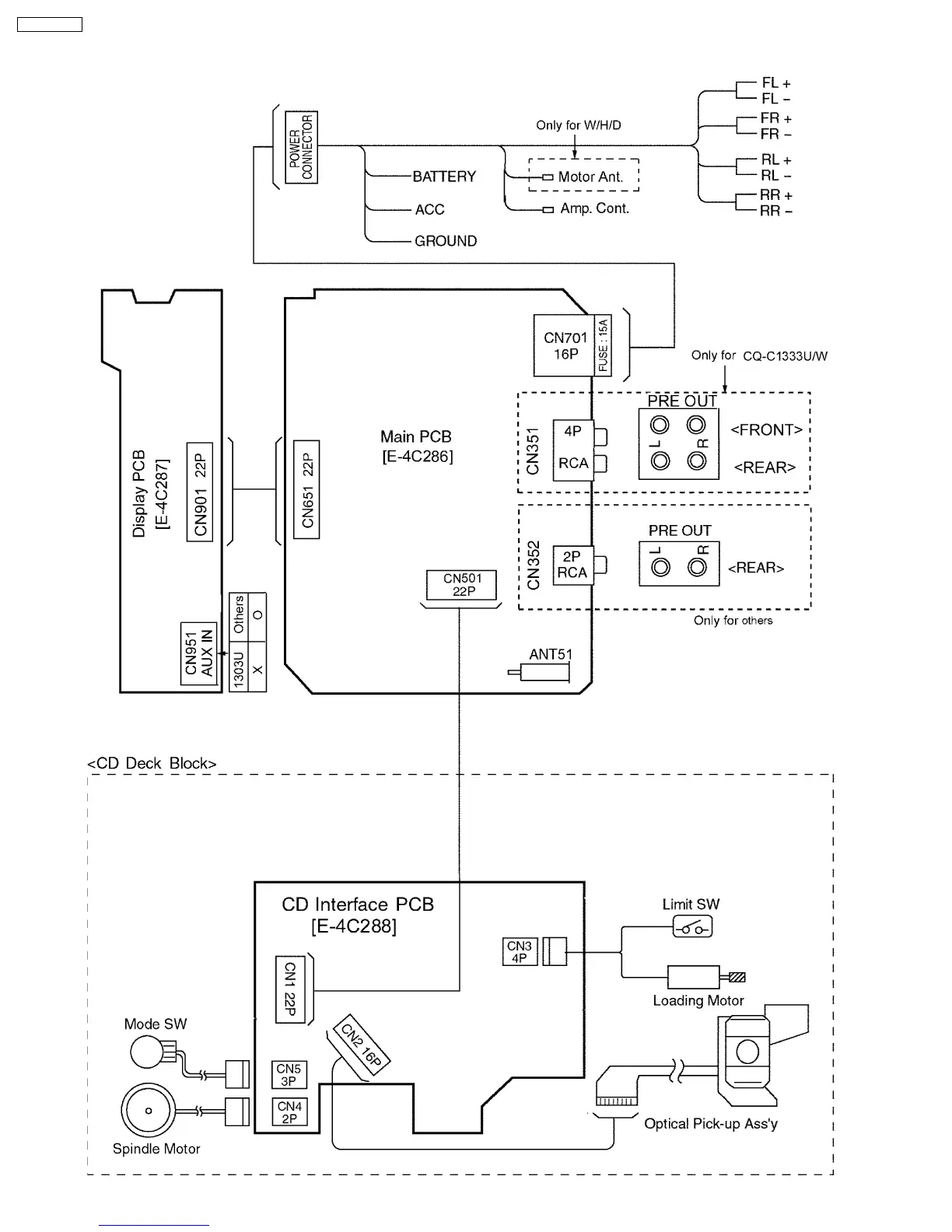

Panasonic CQ-C1323NW - Wiring and Connections; Power Connector Wiring; ISO Connector Compatibility; Speaker Wiring Configuration

Table of Contents

Other manuals for Panasonic CQ-C1323NW

Related product manuals
