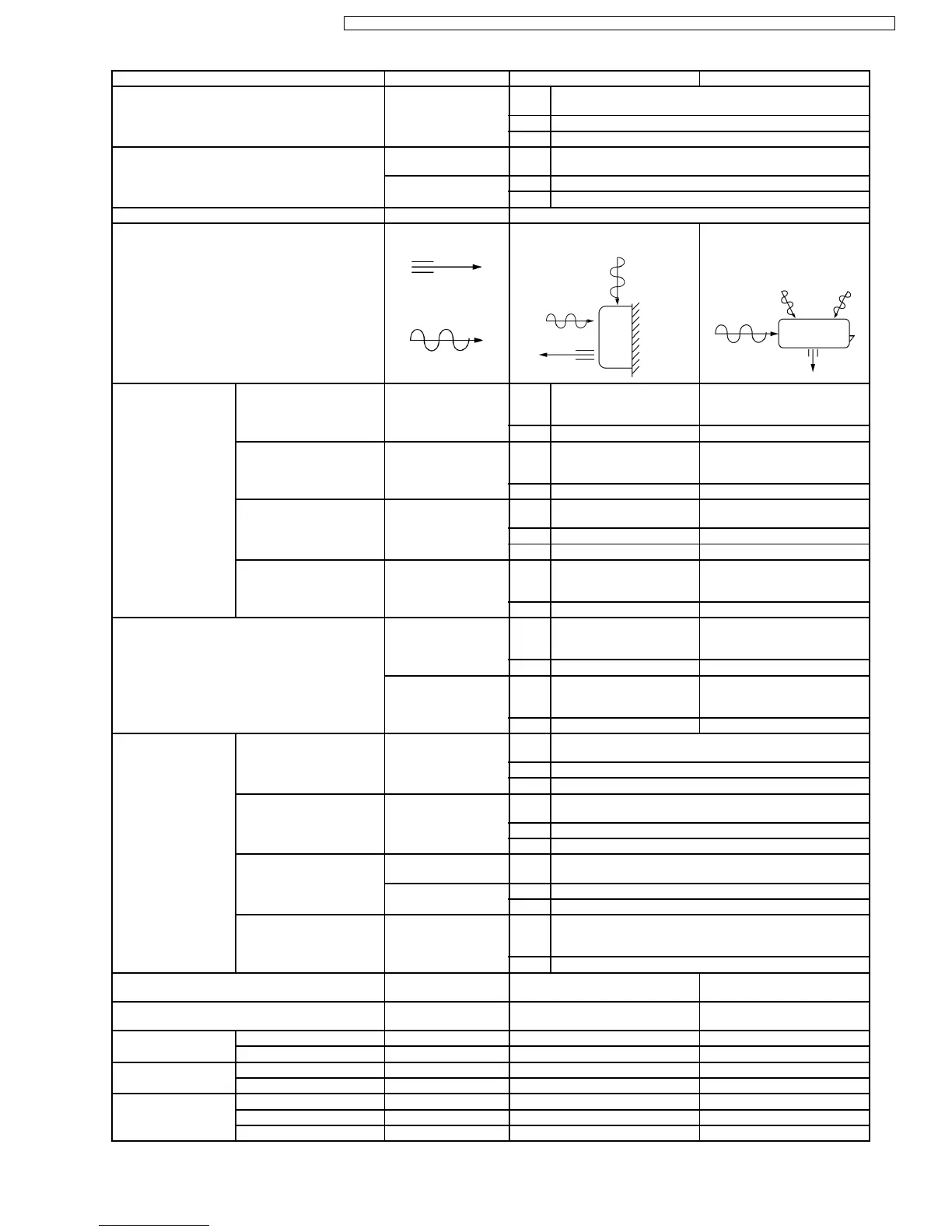

Panasonic CS-C7CKP Service Manual

Unit CS-C12CK CU-C12CK
Power Source Phase, Voltage, Cycle (1)
(4)
Single, 220 - 230, 50 Hz
(2) Single, 220, 60 Hz
(3) Single, 220 - 240, 50 Hz
Cooling Capacity kW (kcal/h) (1)
(4)
3.52 - 3.65 (3,030 - 3,140)
kW (BTU/h) (2) 3.56 (12,100)
(3) 3.52 - 3.57 (12,000 - 12,170)
Moisture Removal l/h (Pint/h) 2.1 (4.4)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) (1)
(3)
(4)
7.3 (260) - 7.3 (260) —
(2) 7.3 (260) —
Indoor Air (Me) m
3
/min (cfm) (1)
(3)
(4)
8.7 (310) - 8.7 (310) —
(2) 8.7 (310) —
Indoor Air (Hi) m
3
/min (cfm) (1)
(4)
10.2 (360) - 10.2 (360) 30.3 (1,070) - 30.8 (1,090)
(2) 10.2 (360) 32.4 (1,140)
(3) 10.2 (360) - 10.2 (360) 30.3 (1,070) - 31.3 (1,100)
Indoor Air (SHi) m
3
/min (cfm) (1)
(3)
(4)
10.5 (370) - 10.5 (370) —
(2) 10.5 (370) —
Noise Level dB (A) (1)
(3)
(4)
High 39 - 39, Low 29 - 29 High 48 - 49
(2) High 39, Low 29 High 48
Power level dB (1)
(3)
(4)
High 52 - 52 High 62 - 63
(2) High 52 High 63
Electrical Data Input Power kW (1)
(4)
1.05 - 1.10
(2) 1.11
(3) 1.10 - 1.15
Running Current A (1)
(4)
5.1 - 5.0
(2) 5.3
(3) 5.1 - 4.9
EER W/W (kcal/hW) (1)
(4)
3.35 - 3.32 (2.89 - 2.85)
W/W (BTU/hW) (2) 3.21 (10.9)
(3) 3.20 - 3.10 (10.9 - 10.6)
Starting Current A (1)
(3)
(4)
16.9
(2) 33.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (1.0 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
11
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6
