9.11. Pump Down Operation
•
• •
•

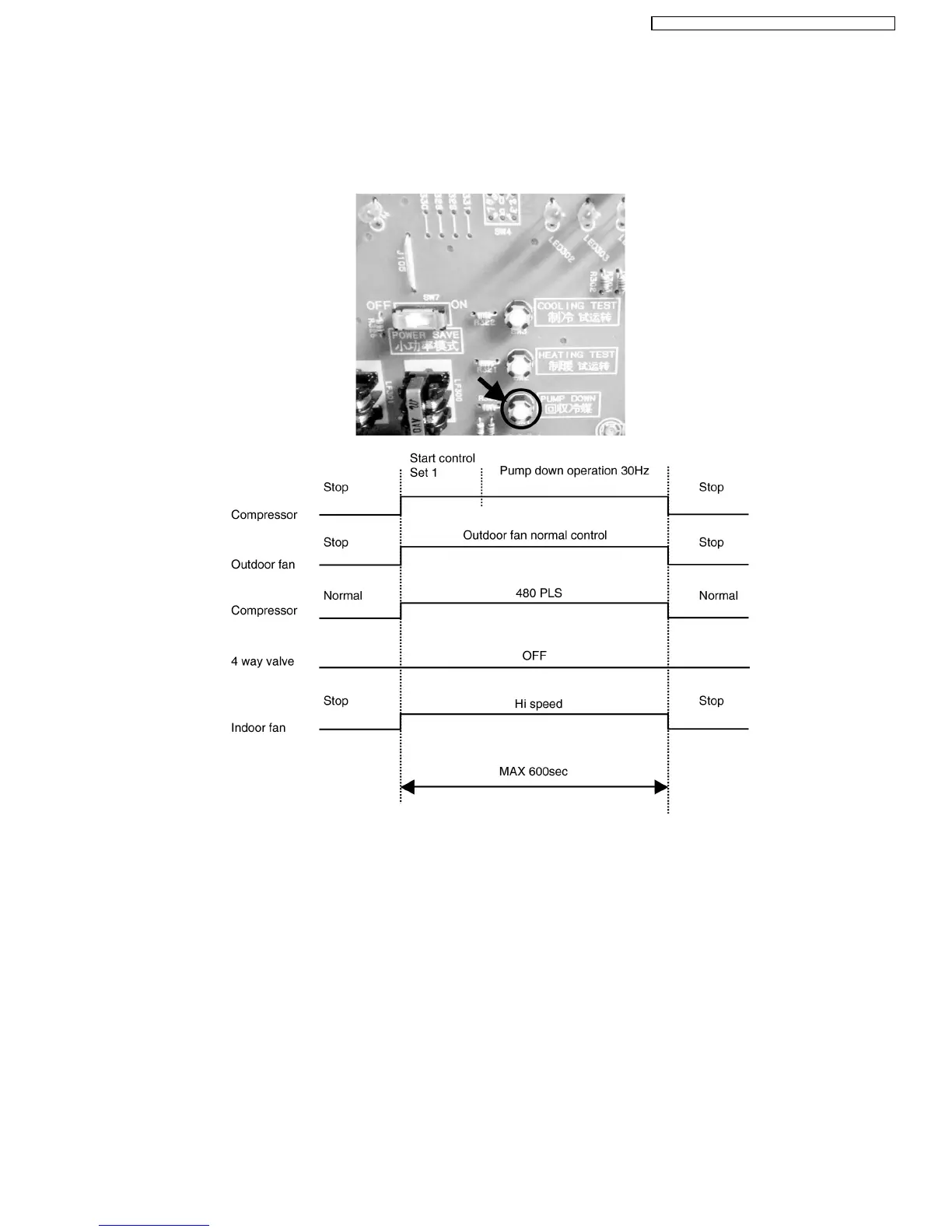

When pushing the [PUMP DOWN] button on the outdoor PCB for 1 second, pump down operation start. Detail of pump down
operation is shown at below table.
•
• •
•
During pump down operation, push the [PUMP DOWN] button once again for 1 second, pump down operation stop.
•
• •
•
After 600[Sec] past, pump down operation stop.
9.12. Indoor Air Volume Up Control (DC Fan Motor Type Only)
•
• •
•
Indoor air volume up control set by local setting mode of wired or wireless remote controller.
(item 01, 00: standard / 01: Air volume up mode)
(only for DC motor type)
•
• •
•
Due to air volume up control, indoor fan revolution increase in case of Hi speed setting only.
•
• •
•
This control is memorized in the micro computer, it cannot be reset by power off.
33
CS-F24DB4E5 CU-L24DBE5 / CS-F28DB4E5 CU-L28DBE5
