WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
15.2 CS-S18NK CS-S24NK CS-S28NK
15.2.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

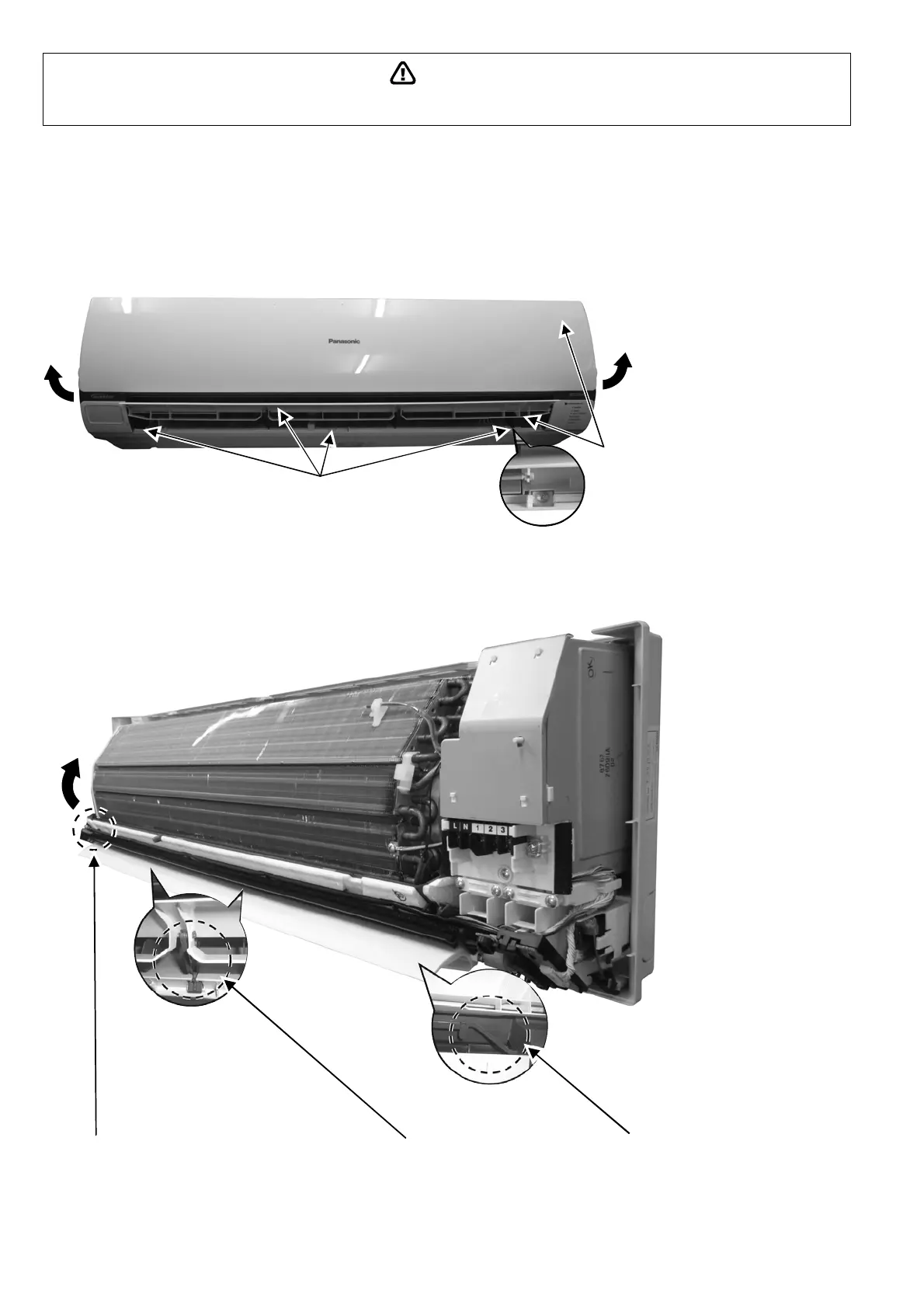

15.2.1.1 To remove front grille
2. Remove 3 caps and 4 screws at the
bottom of discharge vane.
3. Hold both sides of the front grille and
remove it by pulling up and toward
yourself gently.
1. Lift to open the horizontal vane
and intake grille gently.
Figure 11
15.2.1.2 To remove horizontal vane
4. Bend the horizontal vane slightly
to remove vane’s shaft from body.
5. Release the hooks from 2
fulcrums.
6. Release the hook that holds the
vertical vanes.
Figure 12
To Next Page
