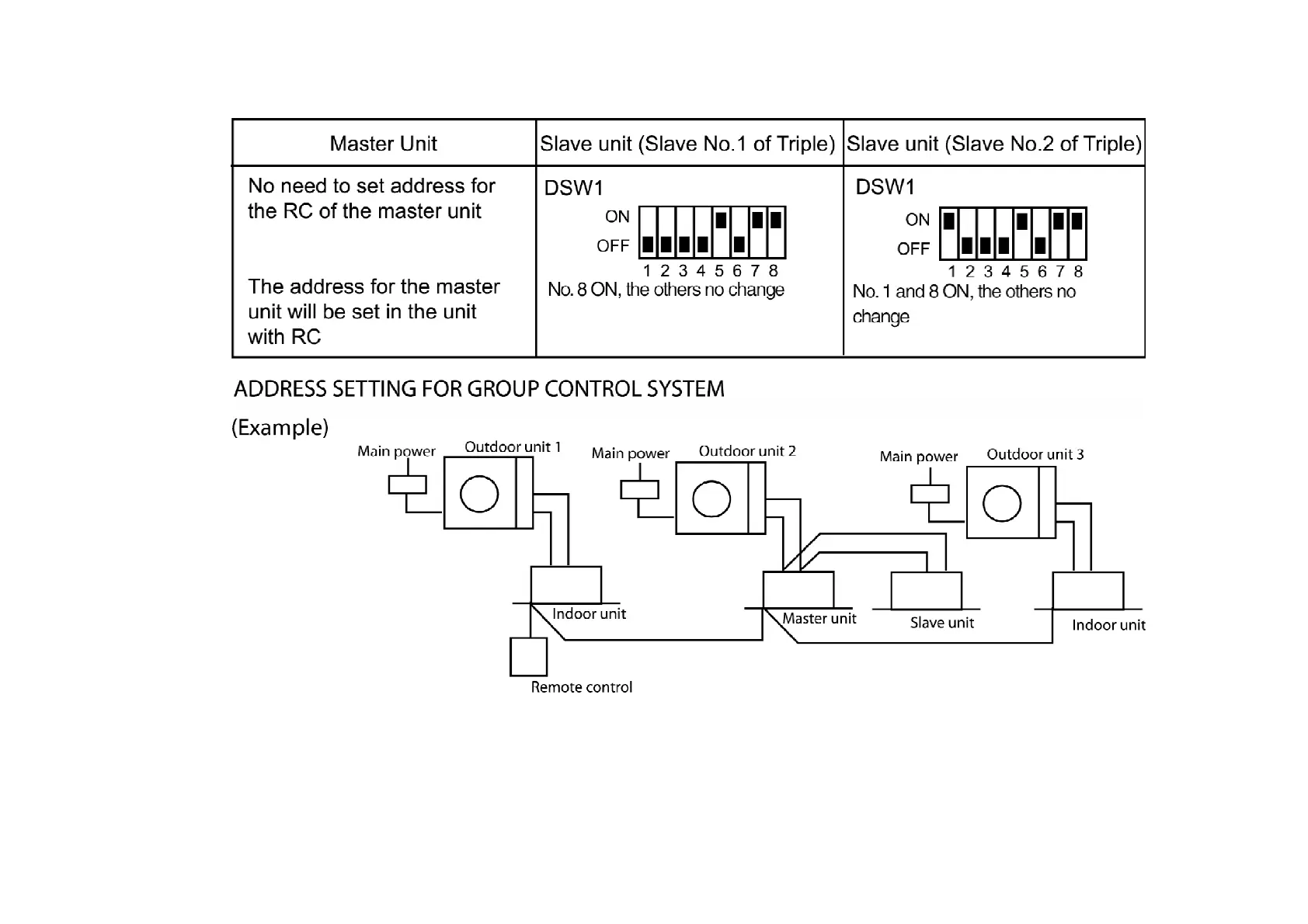

1. Automatic address setting (no need to have dip-switch set) / If the wiring connected properly as
above example, the AC numbers are set automatically by the main power supply. An indoor unit
with remote control will be set as the master. / If the power source is installed to indoor units and
