* Use either W3/8 or M10 bolts and nuts (local supplied)
•
• •
•

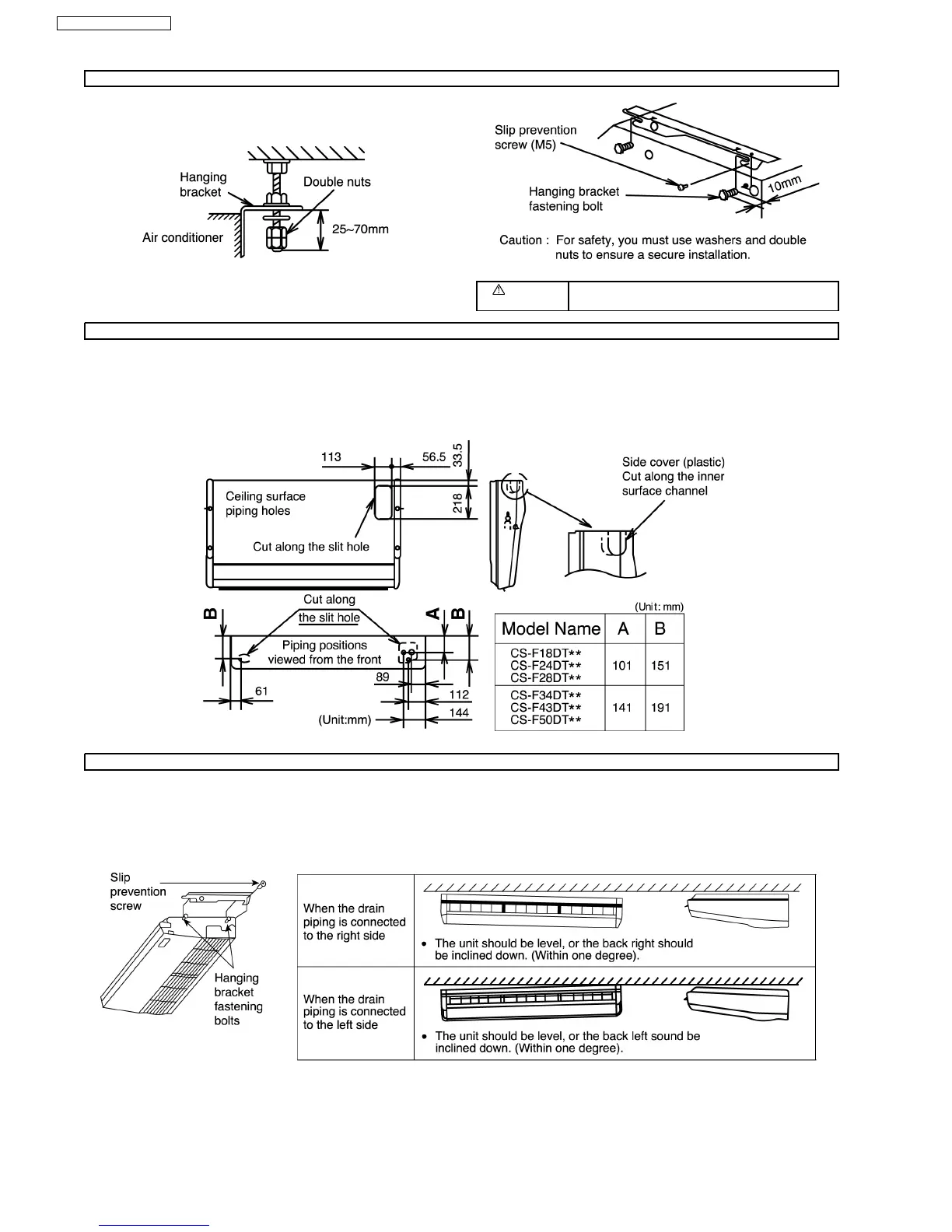

Fastening the hanging bracket
Warning Be sure to tighten the nut and bolt to prevent the
unit from falling.
Fastening the hanging bracket
Piping hole positions
•
• •
•
The refrigerant piping can be installed on the right, right upper or right rear.
•
• •
•
The drain piping can be installed on the right, right rear, left or left rear (there are connection ports on both right and left sides.)
•
• •
•
Thermally insulate the drain and refrigerant piping to prevent dew condensation.
•
• •
•
After cutting the piping holes, use the edge protection cover (accessory) to protect the end surfaces.
Installing the unit
1. Insert the hanging bracket fastening bolts and both sides of the unit into the hanging brackets, and slide the unit to the rear.
Fasten the bolts.
2. Tighten the slip prevention screws (M5) for brackets to prevent the unit from shifting.
3. To ensure correct drainage, after hanging the unit, use a level gauge to check the installation angle.
38
CS-F50DTE5 CU-L50DBE8
