8-29
8

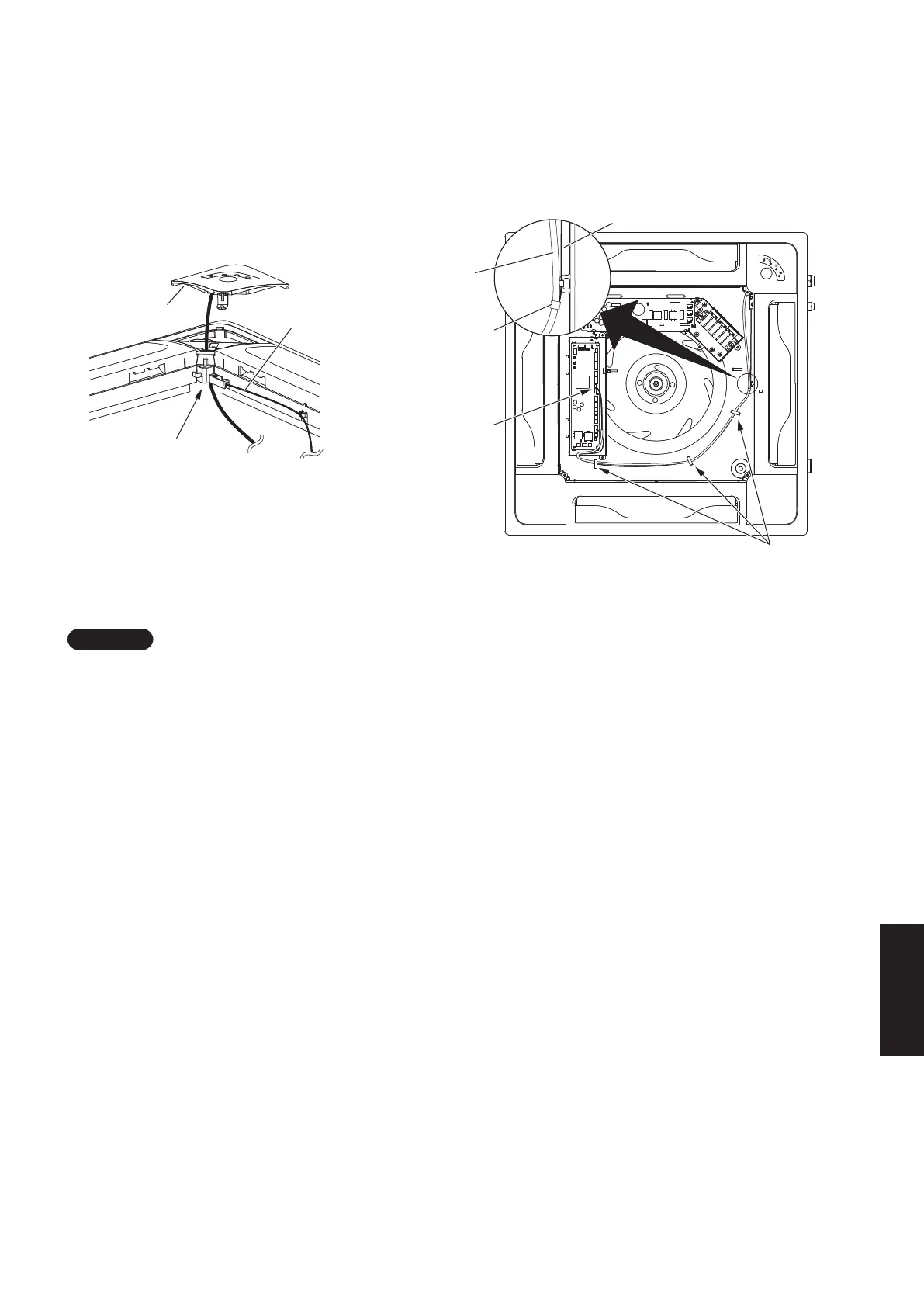

3. Pass the wire from the wireless receiver through the grille. (Fig. 8-34)
4. Fit the panel to the indoor unit and connect the wire from the receiver to the connector (CN130/WL/WHT/10P)
on the indoor control board. (Fig. 8-35)
5. After fixing the panel in place, fit the receiver to the panel taking care not to trap the wire from the receiver.
6. Clamp the receiver wire and panel wire together with the supplied clamper. (Fig. 8-35)
7. Insert the receiver wire and panel wire into the wire saddles. (Fig. 8-35)
* Refer to the Users Manual supplied with the panel.
Receiver
Panel wire
Pass wire through panel
Panel wire
Receiver wire
Clamper
CN130 [WL]
(WHT 10P)
Wire saddle
1. Do not twist the receiver wire and the power lead-in wire together as this could lead to malfunction.
2. If the unit power source is affected by noise, install a noise filter or take similar measures.
NOTE
Fig. 8-34
Fig. 8-35
