8
VQT2J46

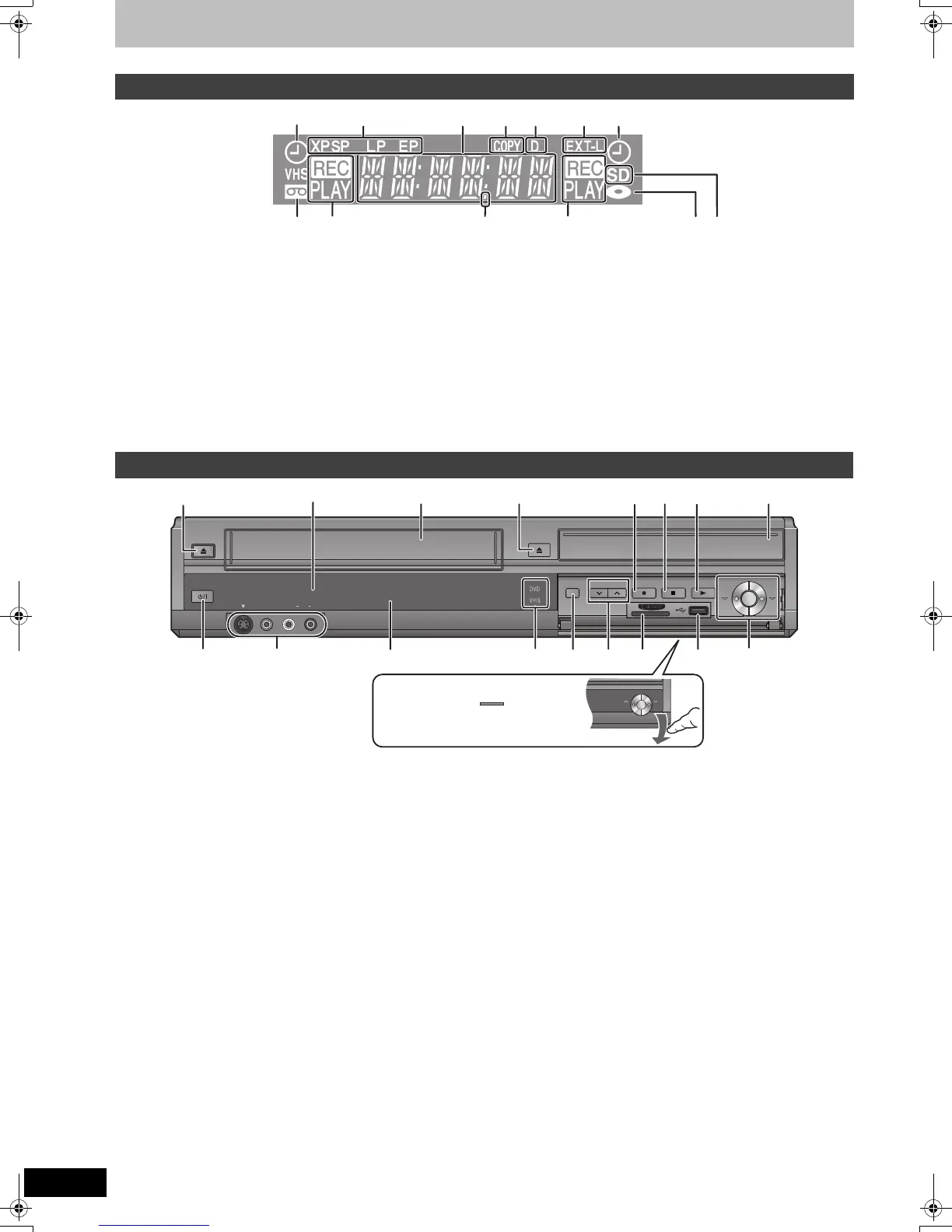

Control reference guide
1 Timer recording indicator
2 Recording mode indicator (> 27)
3 Main display
≥Current time
≥Disc recording and play counter
≥VHS recording and play counter
≥Miscellaneous messages, etc.
4 Copying indicator
5 Digital broadcast indicator
Lights when the unit is receiving digital broadcast.
6 Linked timer recordings with external equipment indicator
7 Tape indicator
8 Recording/Playback indicator
9 Remote control visual feedback
This flashes when it is operated by the remote control.
: Disc indicator
; SD card slot indicator
1 Cassette eject (> 18)
2 Remote control signal sensor (> 4)
3 Cassette compartment (> 18)
4 Open/Close disc tray (> 18)
5 Start recording (> 21)/Specify a time to stop recording (> 22)
6 Stop (> 20, 21, 38)
7 Start play (> 20)
8 Disc tray (> 18)
9 Standby/on switch (Í/I) (> 12)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
: Connection for VCR, camcorder etc. (> 31)
; Display (> above)
< DVD/VHS drive indicator
Lights when the DVD or VHS drive is selected.
There is no drive indicator for HDD or SD drive.
= DRIVE SELECT (> 20, 21)
Drive changes each time you press [DRIVE SELECT].
> Channel select (> 19)
? SD card slot (> 18)
@ USB port (> 18)
A One Touch Copying operation (> 24)
Rear panel terminals (> 10, 11, 81–83)
The unit’s display
(for VHS) (for HDD/DVD)
(for HDD/DVD)(for VHS)
Main unit
S VIDEO
IN 2
VIDEO
/MONO
AUDIO
R
L
S VIDEO
VIDEO
/MONO
AUDIO
R
L
AV3 IN
DRIVE SELECT
REC
CH
OPEN/CLOSE
EJECT
COPYING
VHS
HDD
VHS
DVD
9
1
4
6
5
7
:
<
=
>
?
A
3
8
@
;
2
Opening the front panel
Press down on the part with
your finger.
DMR-EX99VEG-VQT2J46_eng.book 8 ページ ２０１０年１月１４日 木曜日 午前１０時３１分
