Mini VRF SYSTEM
Outdoor Unit Maintenance Remote Controller
Â

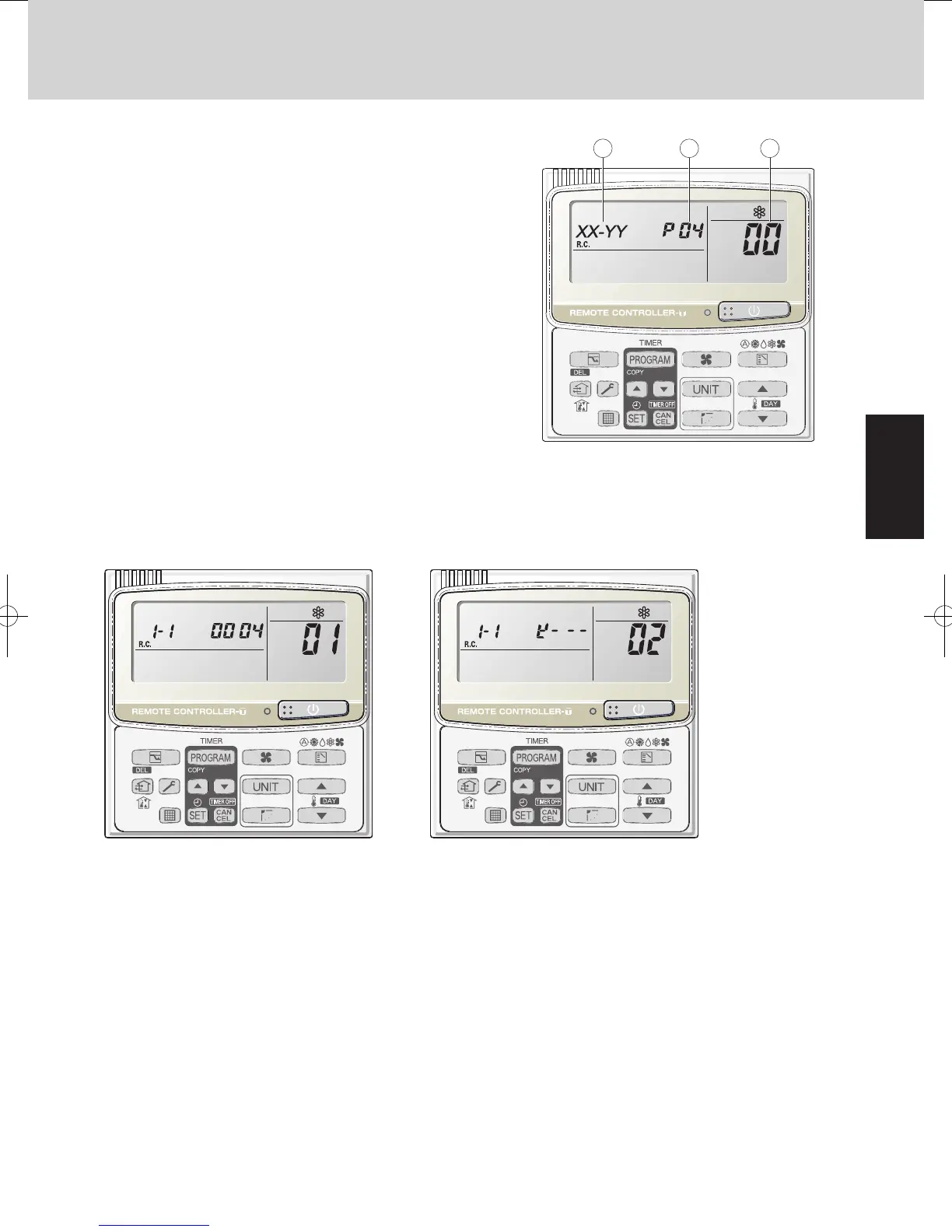

XX-YY R.C. (Fig. 3-3)
Displays the outdoor unit sub-bus address which is
currently selected.
XX = Outdoor system address on main bus line (1 – 30)
YY = Outdoor unit sub-bus address.
“1” appears when there is only 1 outdoor unit.
The locations where and
À
,
Á
and
Â
are displayed as
shown in Fig. 3-3.
01: <No. of connected indoor units>
4 units connected
<Sample displays>
02: <Unit Nos. 1, 2, 3, and 4 are
connected>
Fig. 3-3
Fig. 3-4 Fig. 3-5
3.
Ordinary Display Controls and Functions
123
