6

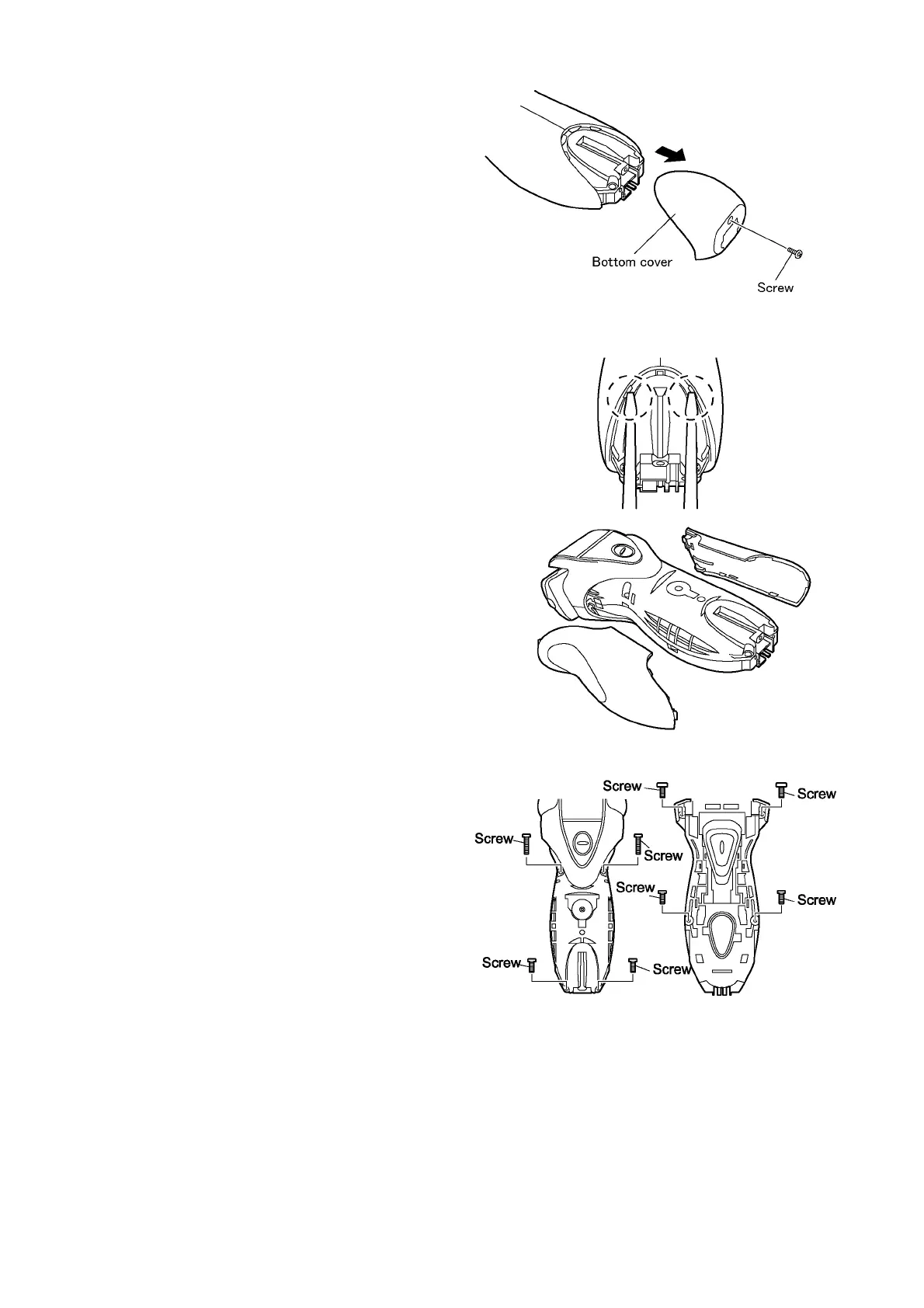

4. Loosen a screw and remove the bottom cover.
5. To remove the side panels, insert a small slotted screw-
driver into the housing and unhook.
6. Loosen four screws on both front and back side of hous-
ing.
