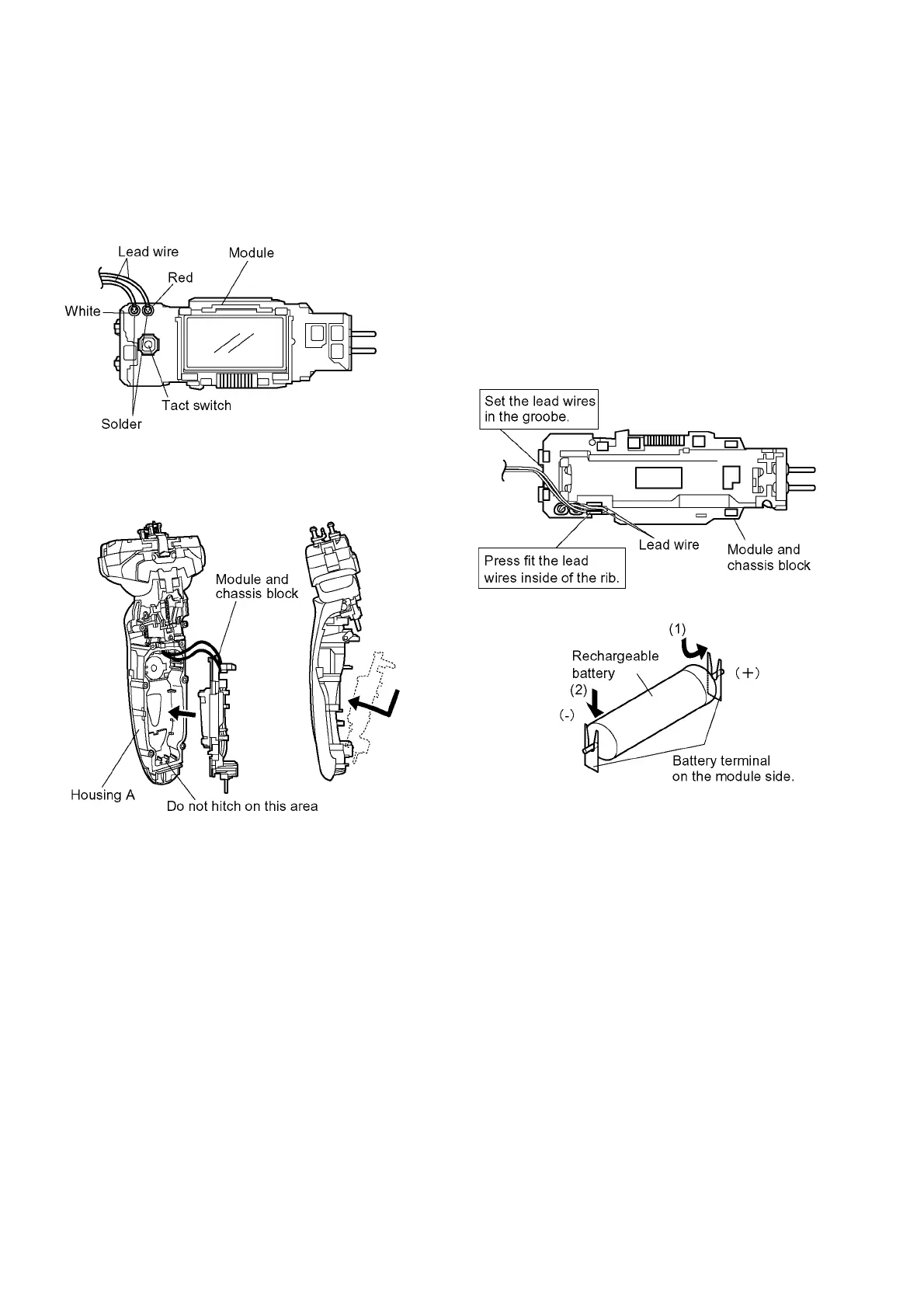

4.2. Caution in Assembly
NOTE:
When reassembling, replace the new waterproof seal. Make sure whether there is NO foreign substance sticking around a part
covered with waterproof seal.
1. Solder the lead wires with the module.
NOTE:
Make sure of the color of lead wires.
2. When inserting the module and chassis block into the
housing A, confirm if the module does not get any dam-
age or deformation.
3. Make sure that the lead wires set in position to avoid
abnormal noise. Install (+) terminal of battery into the ter-
minal plate at the bottom cover side and firmly set the bat-
tery sliding the direction of arrow. Attach (-) terminal of
battery.
NOTE:
Once taking the battery out, the shaver is RESET.
The shaver must be charged for several seconds first.
NOTE:
Completely discharge and then fully charge before
returning the shaver to the customer.
