12-ENGLISH
Projection relationships

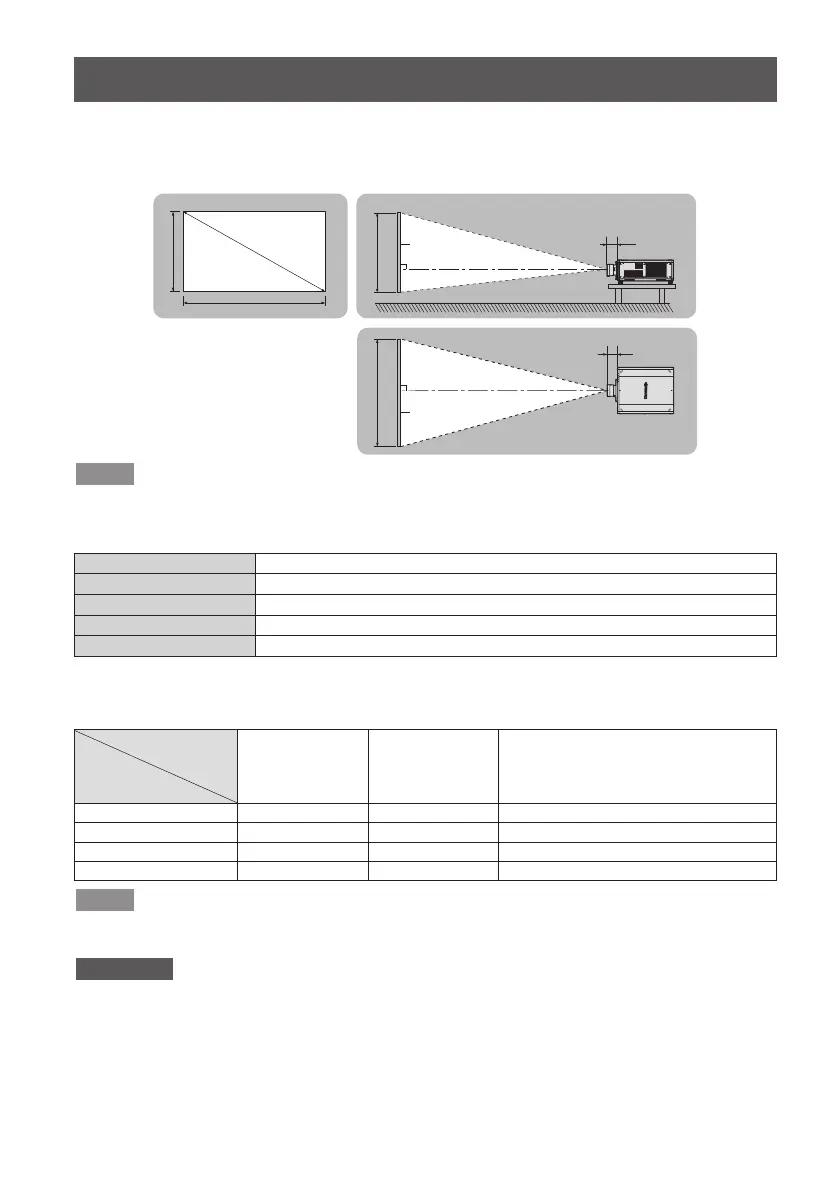

The dimensional relationship between the screen and the projector is shown below.
■
Dimensional relationship diagram
SD
L (LW/LT)
L1
L1
L (LW/LT)
SW SH
SH
SW
投写画面
スクリーン
スクリーン
Projected image
Screen
Screen
Note
z
This diagram assumes that the size and position of the projected image will be adjusted so
that the image lls the entire screen.
z
This illustration is not drawn to scale.
L (LW / LT)
*1
Projection distance
L1 Lens protrusion dimension
SH Projected image height
SW Projected image width
SD Projected image size
*1 LW: Minimum projection distance when using a zoom lens.
LT: Maximum projection distance when using a zoom lens.
z
L1 dimensions (approximate values)
(Unit: m)
Projector model
Lens model
PT-RQ32K /
PT-RZ31K /
PT-RS30K
PT-RZ21K /
PT-RS20K
PT-RQ13K / PT-RZ12K / PT-RS11K /
PT-DZ21K2 / PT-DS20K2 / PT-DW17K2 /
PT-DZ16K2 / PT-DZ13K / PT-DS12K /
PT-DW11K / PT-DZ10K
ET-D3LEW60 0.182 0.212 -
ET-D3LES20 0.091 0.121 -
ET-D3LET80 0.224 0.254 -
ET-D3LEW50 0.173 0.203 0.203
Note
z
The illustrations of projectors in this manual are for informational purposes only and do not
represent a specic projector model. Congurations may vary with the model.
Attention
z
To prevent obstruction of the intake and exhaust vents, install the projector with a
clearance at least 500 mm (1 ft. 7 in.) from walls and objects.
If you are installing the projector in a sealed space, be sure to provide additional air
conditioning equipment and ventilation equipment. Insufcient ventilation will result in an
accumulation of heat and may activate the projector's protection circuit.
z
Avoid setting up in places which are subject to sudden temperature changes, such as near
an air conditioner or lighting equipment (studio lamps, etc.).
