Panasonic KV-S5046H - PAPER FEED SELECT SENSOR Board; SLIP DETECT SENSOR Board

67

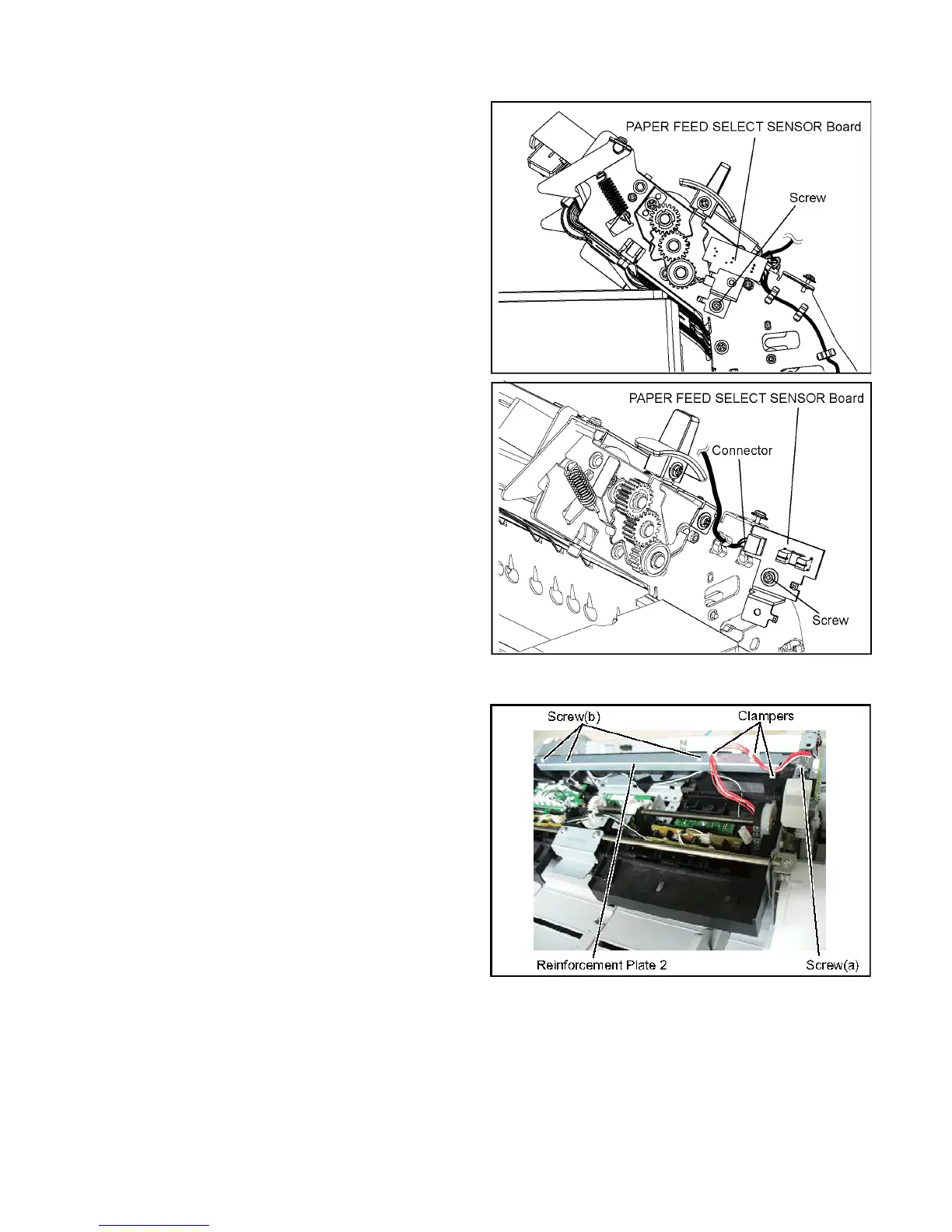

8.4.13. PAPER FEED SELECT SENSOR Board
8.4.14. SLIP DETECT SENSOR Board
1. Remove the Imprinter Door. (See 8.3.1.)
2. Remove the Top Cover. (See 8.4.7.)
3. Remove the screw to release the PAPER FEED SELECT
SENSOR Board with the plate from the scanner.
4. Disconnect the connector and remove the screw.
1. Remove the Paper Feed Motor. (See 8.4.12.)
2.Remove the PAPER FEED SELECT SENSOR Board.
(See 8.4.13.)
3. Release the 3 clampers.
4. Remove the screw (a) and 3 screws (b) that fasten the
Reinforcement Plate 2 to the scanner.
Then remove the plate.
