components, only use specified manufacture’s parts.
3. The S mark means the part is one of some identical parts. For that
reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column shows
quality of the material and a flame resisting grade about plastics.

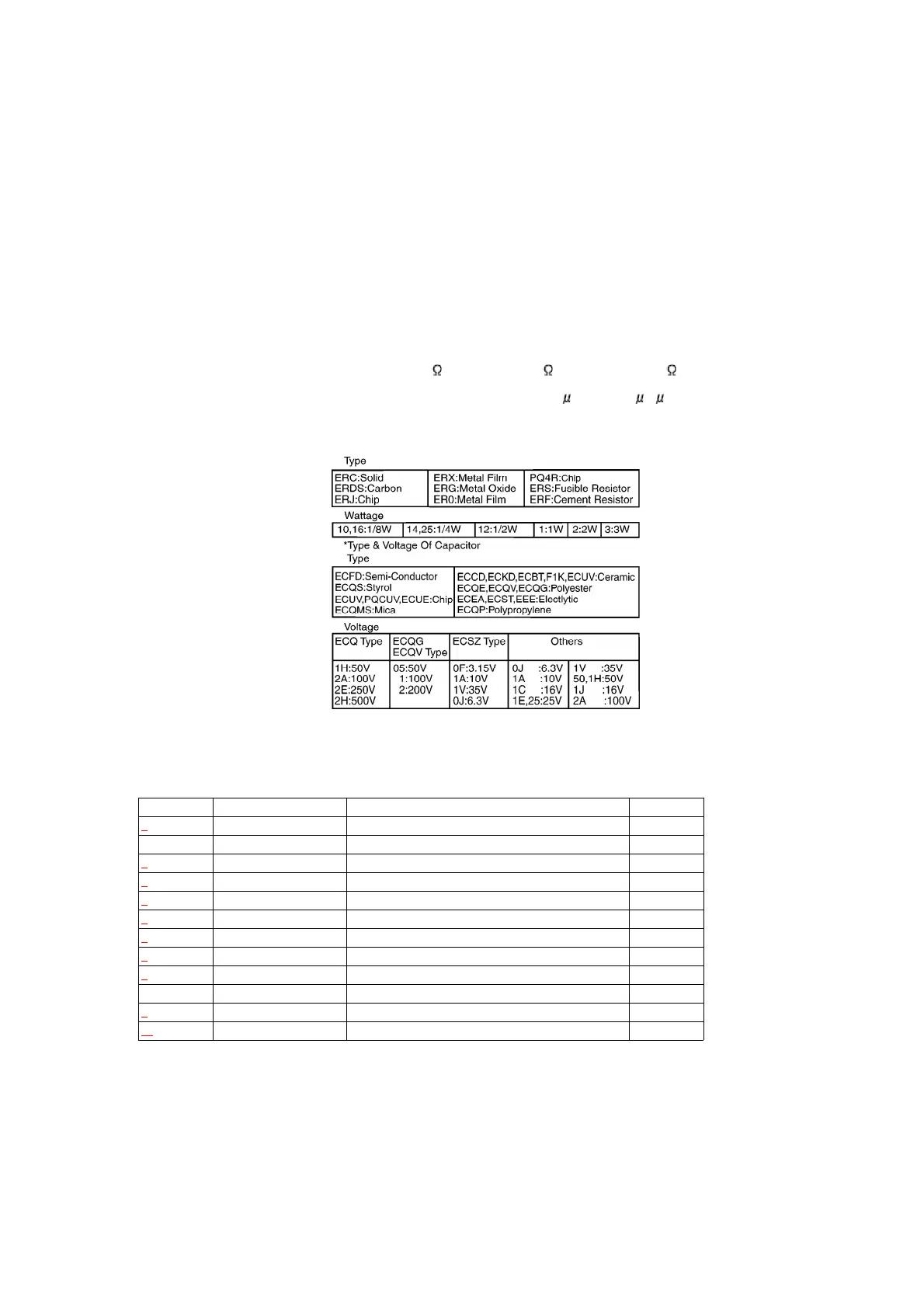

5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms ( ) K=1000 , M=1000k
All capacitors are in MICRO FARADS ( F)P= F
*Type & Wattage of Resistor
35.1. Base Unit
35.1.1. Cabinet and Electrical Parts
Ref. No. Part No. Part Name & Description Remarks
1 PQGG10154U2 GRILLE (for KX-TCD430GC) (for KX-TCD432GC) ABS-HB
1 PQGG10154U1 GRILLE (for KX-TCD430GF) (for KX-TCD432GF) ABS-HB
2 PQKM10586W2 CABINET BODY ABS-HB
3 PQJT10203Z TERMINAL
4 PQKE10356Z2 GUIDE, CHARGE TERMINAL CASE POM-HB
5 PQSA10131Z ANTENNA, MAIN
6 PQSA10132Z ANTENNA, SUB
7 PQKF10581Z2 CABINET COVER ABS-HB
8 PQGT16799Z NAME PLATE (for KX-TCD430GC) (for KX-TCD432GC)
8 PQGT16793Z NAME PLATE (for KX-TCD430GF) (for KX-TCD432GF)
9 L0DACA000023 BUZZER
10 PQHG10690Z RUBBER PARTS, RINGERRUBBER
35.1.2. Main P.C.Board Parts
Note:
(*1) When replacing IC1, data need to be written to it with PQZZTCD430G.
82
