3. ADJUSTMENTS
3.1. ADJUSTING THE FEEDER PRESSURE
If misfeeding of a document such as multiple feeding or no feeding occurs frequently, try to
adjust the feeder pressure by following the steps below.
1.

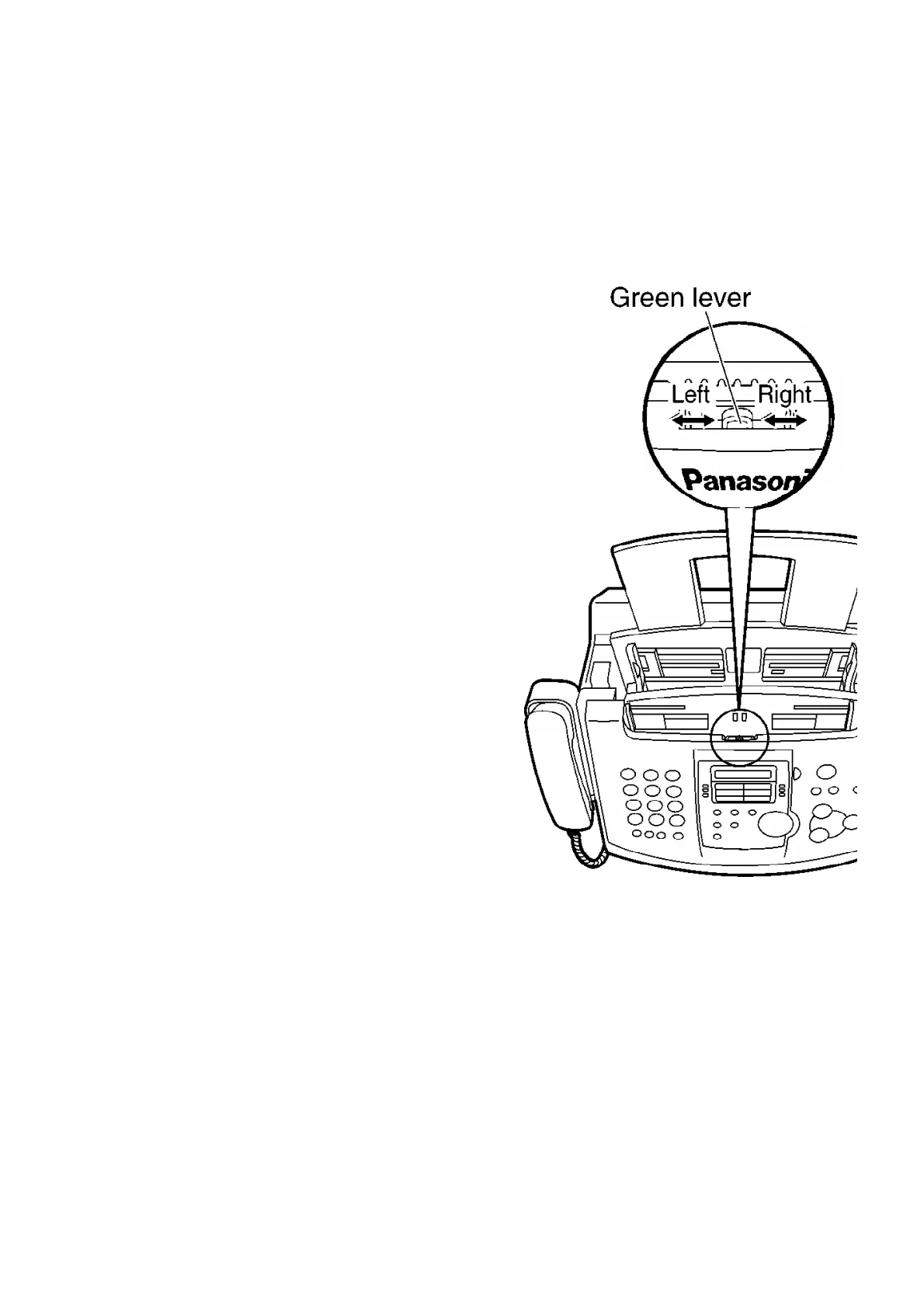

Shift the position of the green lever by using a
stick like instrument with a pointed end.
Left: When documents do not feed.
Center: Standard position (pre-selected)
Right: When documents do multi-feed.
4. DISASSEMBLY INSTRUCTIONS
4.1. HOW TO REMOVE THE BOTTOM PLATE, DRUM AND PAPER
TARY
138
